NOSHOK, Inc.

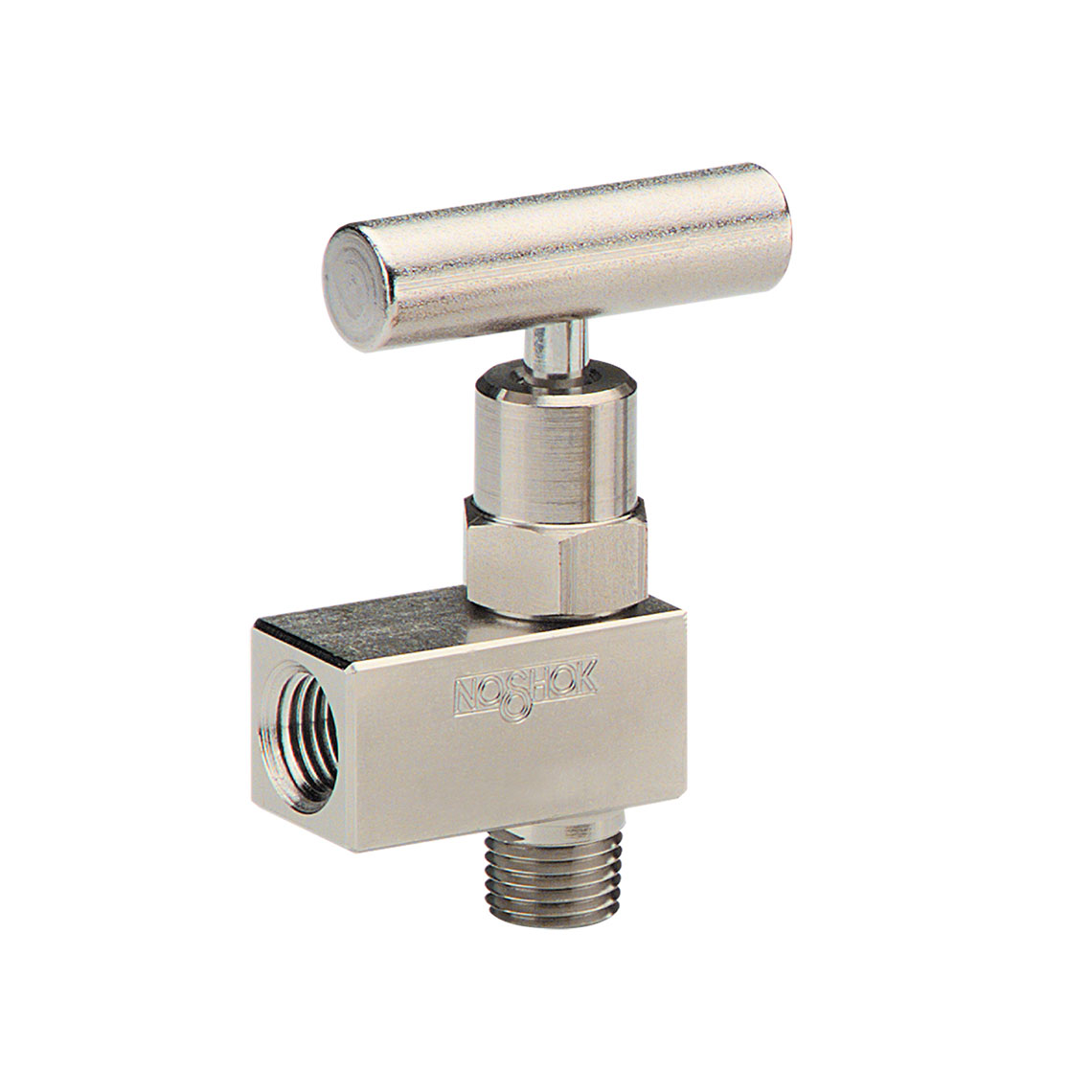

100 Series Mini Needle Valves with Hard Seat
Series Overview
- Compact size valve built for maximum durability and robust performance in the toughest applications
- 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability
- FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE or Graphite packing optional
Documents
Data Sheet | Part Number | Connection | Material | Pressure Rating at 200ºF | Valve Material | Valve Type |
|---|---|---|---|---|---|
| 143-EFFS | 9/16 in.-18 UNF-2B | Electropolished 316 Stainless Steel | 5,000 | Stainless Steel | Extended Female-Female |
| 102-MFS-SF | 1/4" NPT | Electropolished 316 Stainless Steel | 10,000 | Stainless Steel | Male-Female |
| 142-EFFS | 7/16 in.-20 UNF-2B | Electropolished 316 Stainless Steel | 9,000 | Stainless Steel | Extended Female-Female |
| 102-MFS-HL3 | 1/4" NPT | Electropolished 316 Stainless Steel | 10,000 | Stainless Steel | Male-Female |
| 102-MFS-P1 | 1/4" NPT | Electropolished 316 Stainless Steel | 6000 | Stainless Steel | Male-Female |
| 102-MFS-PM2-HL3 | 1/4" NPT | Electropolished 316 Stainless Steel | 10,000 | Stainless Steel | Male-Female |
| 102-MFAS-HL3 | 1/4" NPT | Electropolished 316 Stainless Steel | 10,000 | Stainless Steel | Male-Female Angle |
| 102-MFC-HL3 | 1/4" NPT | Zinc-Nickel Plated Steel | 10,000 | Steel | Male-Female |
| 102-MMB | 1/4" NPT | 360 Brass | 6,000 | Brass | Male-Male |
| 102-MFS | 1/4" NPT | Electropolished 316 Stainless Steel | 10,000 | Stainless Steel | Male-Female |
| 142-EFFC-PM2-HL3 | 7/16 in.-20 UNF-2B | Zinc-Nickel Plated Steel | 8,000 | Steel | Extended Female-Female |
| 142-EFFC | 7/16 in.-20 UNF-2B | Zinc-Nickel Plated Steel | 8,000 | Steel | Extended Female-Female |
| 102-MFC | 1/4" NPT | Zinc-Nickel Plated Steel | 10,000 | Steel | Male-Female |
| 102-MFS-P1-PM2-HL2 | 1/4" NPT | Electropolished 316 Stainless Steel | 6000 | Stainless Steel | Male-Female |
| 102-MFC-HL4 | 1/4" NPT | Zinc-Nickel Plated Steel | 10,000 | Steel | Male-Female |
| 102-MFAS | 1/4" NPT | Electropolished 316 Stainless Steel | 10,000 | Stainless Steel | Male-Female Angle |
| 142-EFFC-HL3 | 7/16 in.-20 UNF-2B | Zinc-Nickel Plated Steel | 8,000 | Steel | Extended Female-Female |
| 102-MFB-HL1 | 1/4" NPT | 360 Brass | 6,000 | Brass | Male-Female |
| 102-MFS-HL4 | 1/4" NPT | Electropolished 316 Stainless Steel | 10,000 | Stainless Steel | Male-Female |
| 102-MMC | 1/4" NPT | Zinc-Nickel Plated Steel | 10,000 | Steel | Male-Male |
Page 1 of 4
