NOSHOK, Inc.

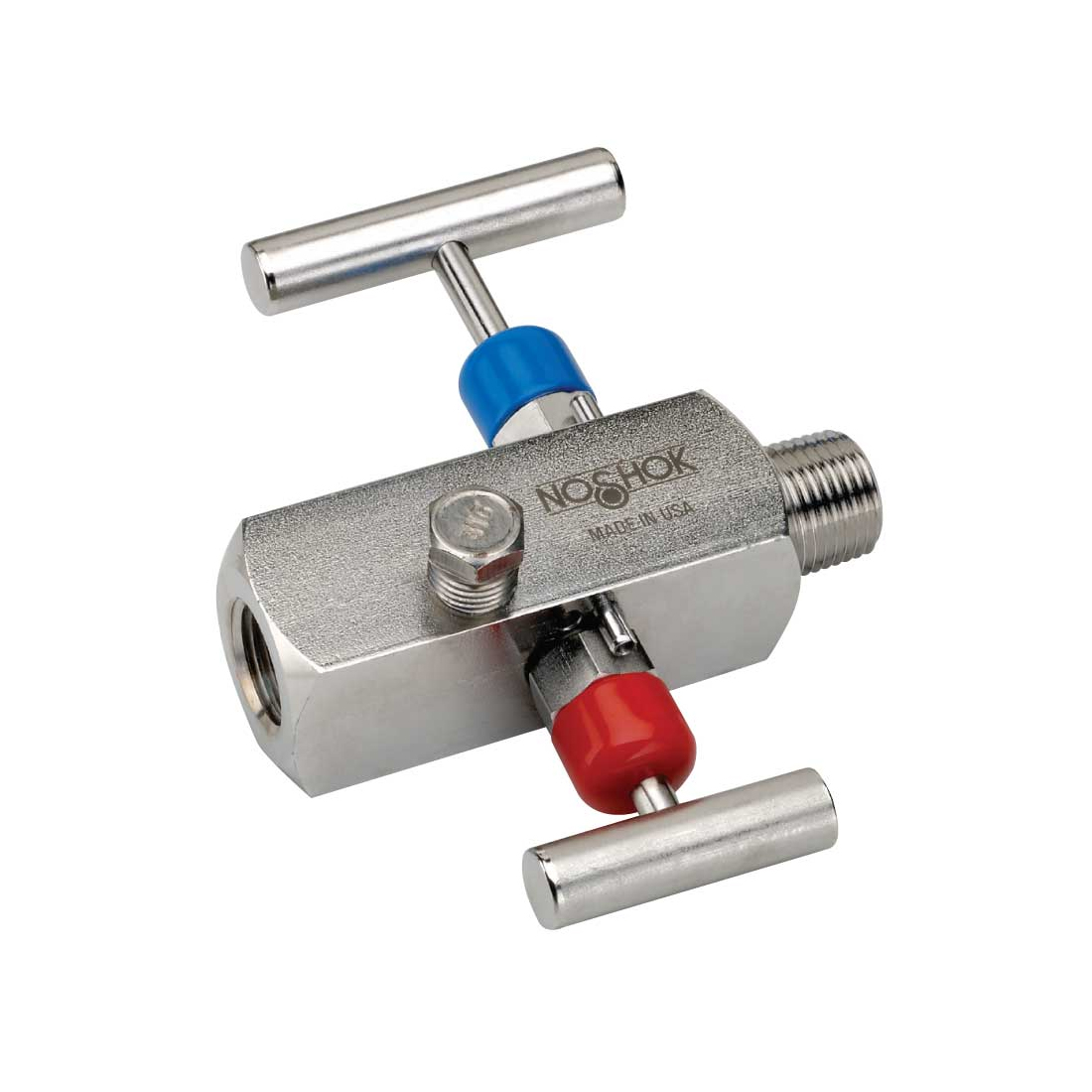

2170 Series Block and Bleed 2 Needle Valves with Soft Seat
Series Overview
- Combines isolating and venting in a single valve, eliminating the need for tubing and fittings
- Block valve isolates the downstream process fluids and the bleed valve exhausts upstream fluids enabling instruments to be removed without disturbing the permanent piping installation
- The 1/4" NPT vent plug is located 90º to the left and may be removed and replaced with exhaust piping to direct the fluids to a safe location
Documents
Data Sheet | Part Number | Connection | Materials | Pressure Rating at 200ºF | Process Type | Valve Material | Valve Type |
|---|---|---|---|---|---|---|
| 2170-FMS | 1/2" NPT | Electropolished 316 Stainless Steel | 6,000 | Block & bleed | Stainless Steel | Female-Male |
| 2170-EMFC | 1/2" NPT | Zinc-Nickel Plated Steel | 6,000 | Block & bleed | Steel | Extended Male-Female |
| 2170-EMFS | 1/2" NPT | Electropolished 316 Stainless Steel | 6,000 | Block & bleed | Stainless Steel | Extended Male-Female |
| 2170-FMC | 1/2" NPT | Zinc-Nickel Plated Steel | 6,000 | Block & bleed | Steel | Female-Male |
| 2170-MFS-EM1 | 1/2" NPT | Electropolished 316 Stainless Steel | 6,000 | Block & bleed | Stainless Steel | Male-Female |
| 2170-MMS | 1/2" NPT | Electropolished 316 Stainless Steel | 6,000 | Block & bleed | Stainless | Male-Male |
| 2172-MFC | 1/4" NPT | Zinc-Nickel Plated Steel | 6,000 | Block & bleed | Steel | Female-Male |
| 2172-MFS | 1/4" NPT | Electropolished 316 Stainless Steel | 6,000 | Block & bleed | Stainless Steel | Male-Female |
| 2170-MFS | 1/2" NPT | Electropolished 316 Stainless Steel | 6,000 | Block & bleed | Stainless Steel | Male-Female |
| 2170-MFC | 1/2" NPT | Zinc-Nickel Plated Steel | 6,000 | Block & bleed | Steel | Male-Female |
| 2170-MFS-P1 | 1/2" NPT | Electropolished 316 Stainless Steel | 6000 | Block & bleed | Stainless Steel | Male-Female |
