621/622 Series Explosion-Proof Pressure Transmitters

• Current and voltage outputs available
• 316 stainless Steel and Elgiloy wetted parts
• Factory Mutual and Canadian Standards Association approved
• NACE MR0175/ISO 15156 compliant
• NSI/ISA-12.27.01 approved single seal

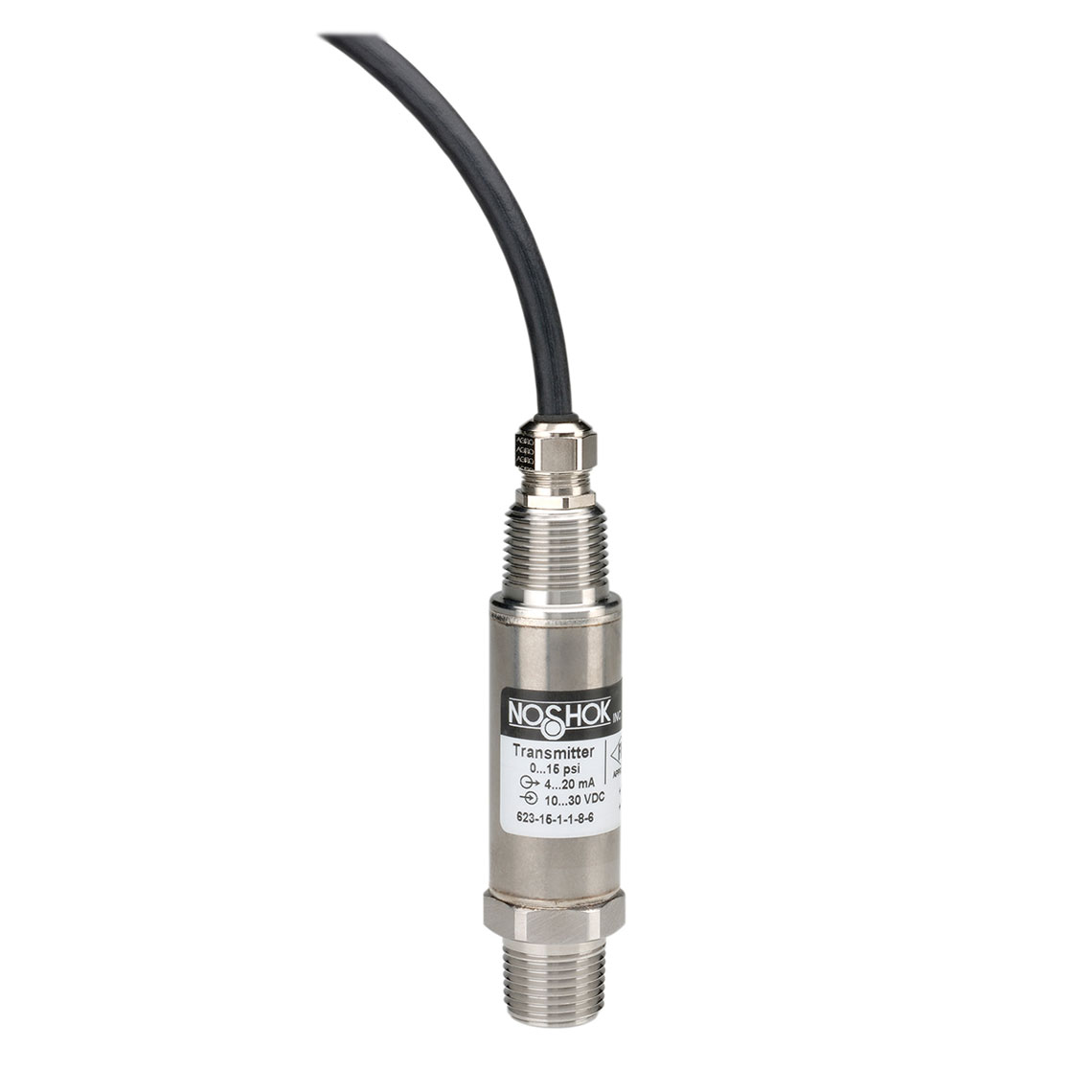

623 Series Non-Incendive Pressure Transmitters

• Current and voltage outputs available
• 316 stainless Steel and Elgiloy wetted parts
• Factory Mutual and Canadian Standards Association approved
• Built to suppress RFI, EMI, and ESD
• NACE MR0175/ISO 15156 compliant
• NSI/ISA-12.27.01 approved single seal

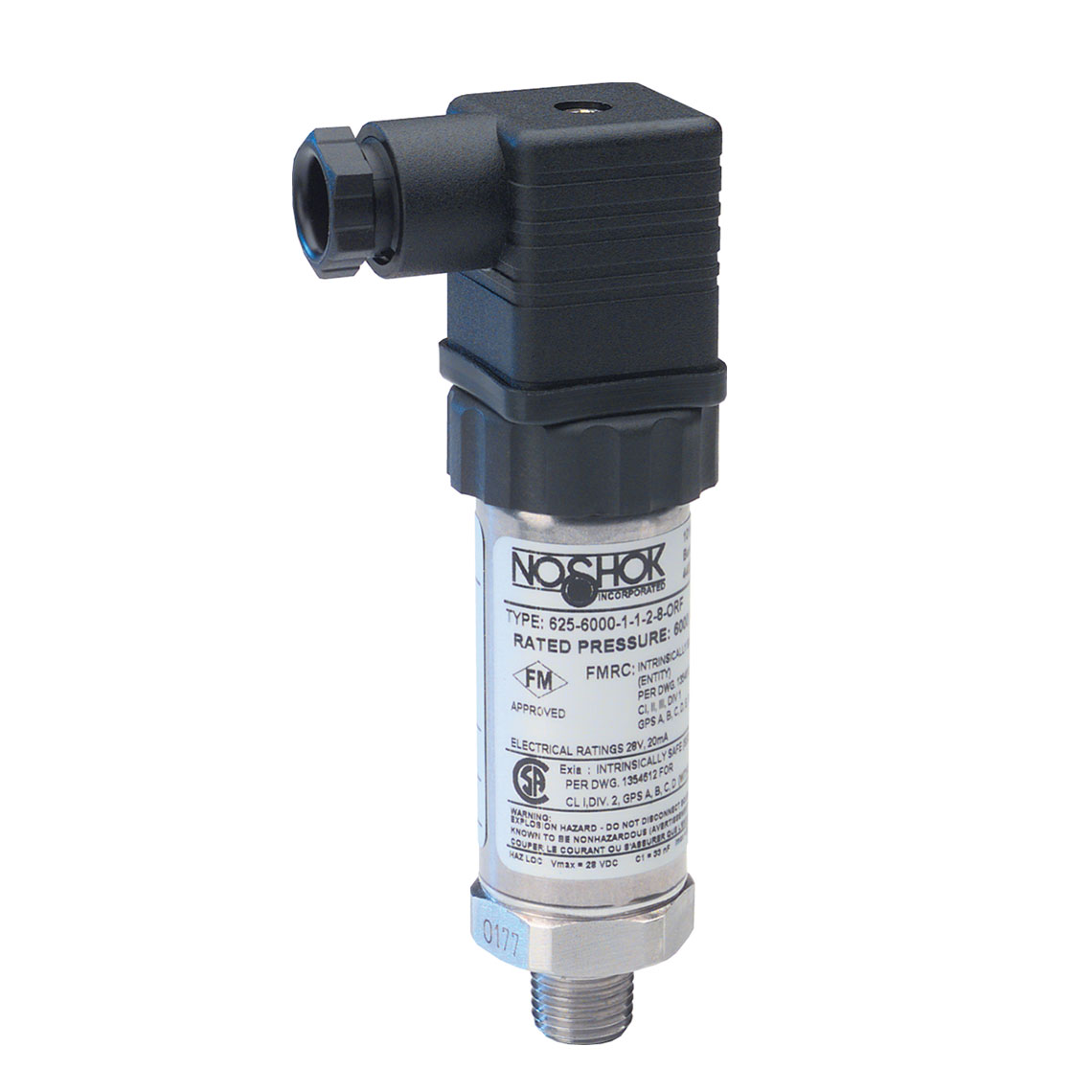

625/626 Series Intrinsically Safe Pressure Transmitters

• Low pressure ranges for vapor recovery applications, vacuum and compound ranges through 0 psig to 15,000 psig; absolute ranges from 0 psia to 15 psia through 0 psia to 300 psia
• Current output
• 316 and 14-4PH Stainless Steel wetted parts

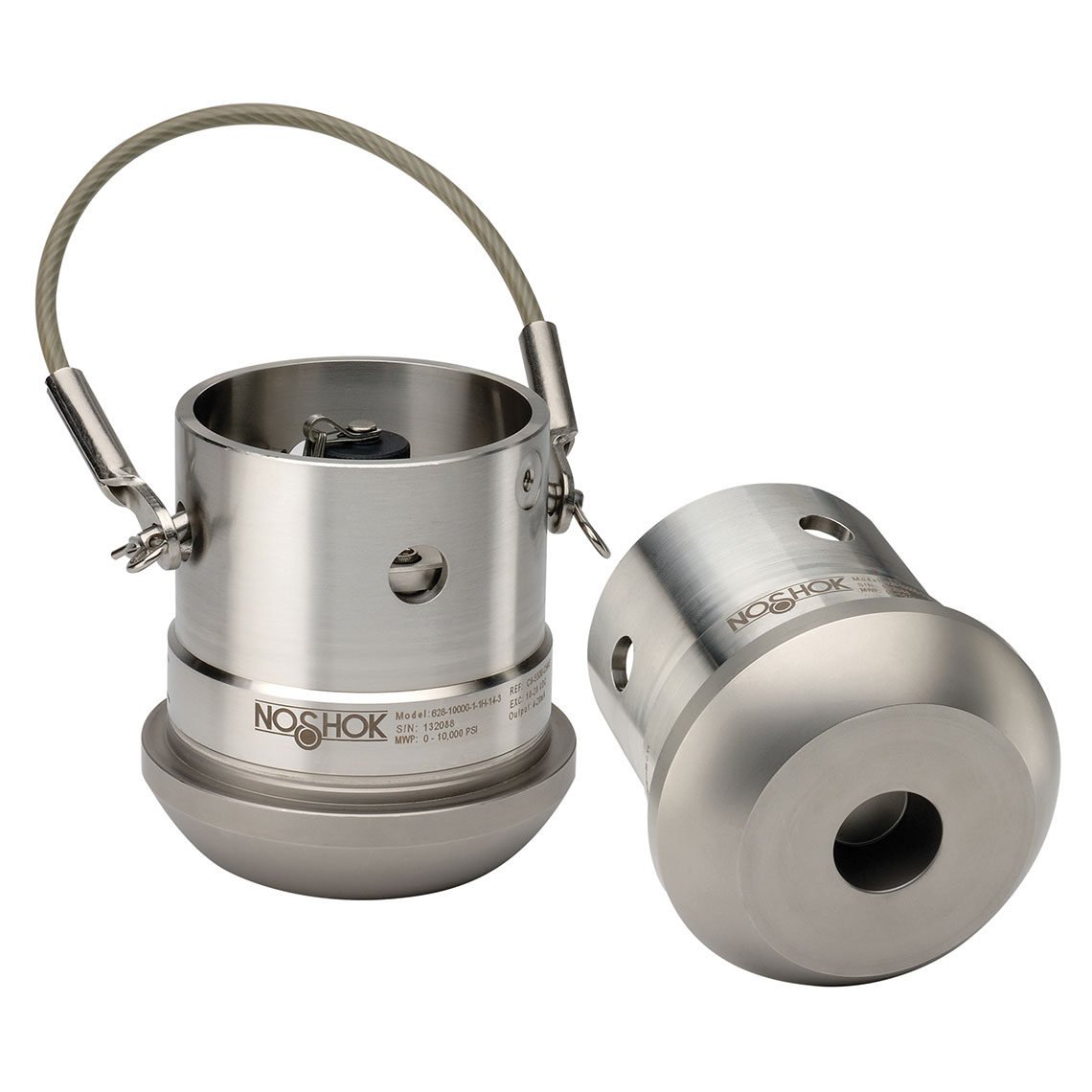

628 Series Intrinsically Safe Hammer Union Pressure Transmitters

• Ranges from 0 psig to 5,000 psig through 0 psig to 20,000 psig
• Current output
• Inconel X-750 wetted parts
