LTI20 Radar Level Transmitters

Collection image

Series Overview

  • Continuous level measurement in containers and tanks
  • Suitable for liquid, highly viscous and solid media
  • Compact design for easy integration
  • Can be installed outside a container (plastic)
  • Suitable for industrial applications and mobile working machines

Documents

▼

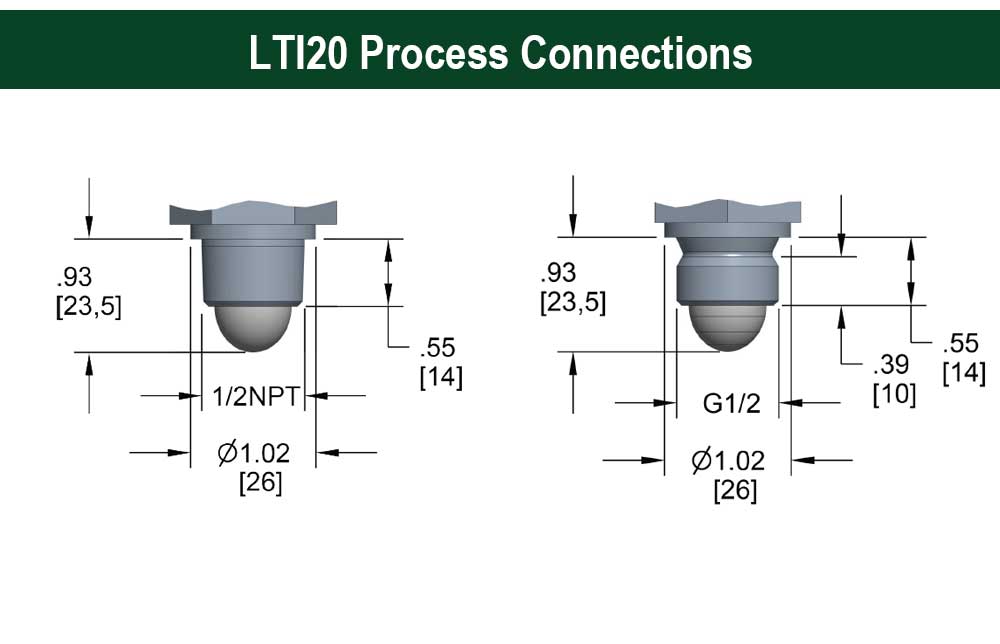

PDF Marketing Flyers PDF Data Sheet PDF User Manual PDF Quick Start Guide Image Additional Dimensions
Part NumberOutput SignalProcess ConnectionElectrical ConnectionMedia Temperature Range ºFAccuracy
LTI20-36-8-36-HT 4 mA to 20 mA, 3-wire 1/2" NPT 6' Integral cable -40 to 302 ºF ±0.2 in Per IEC 62828-4
LTI20-36-86-25 4 mA to 20 mA, 3-wire G1/2 (DIN 3852-2-A) M12 x 1 (4-pin) -40 to 212 ºF ±0.2 in Per IEC 62828-4
LTI20-36-86-25-HT 4 mA to 20 mA, 3-wire G1/2 (DIN 3852-2-A) M12 x 1 (4-pin) -40 to 302 ºF ±0.2 in Per IEC 62828-4
LTI20-36-86-36 4 mA to 20 mA, 3-wire G1/2 (DIN 3852-2-A) 6' Integral cable -40 to 212 ºF ±0.2 in Per IEC 62828-4
LTI20-36-86-36-HT 4 mA to 20 mA, 3-wire G1/2 (DIN 3852-2-A) 6' Integral cable -40 to 302 ºF ±0.2 in Per IEC 62828-4
LTI20-2-8-36 0 Vdc to 5 Vdc, 3-wire 1/2" NPT 6' Integral cable -40 to 212 ºF ±0.2 in Per IEC 62828-4
LTI20-2-8-36-HT 0 Vdc to 5 Vdc, 3-wire 1/2" NPT 6' Integral cable -40 to 302 ºF ±0.2 in Per IEC 62828-4
LTI20-2-86-25 0 Vdc to 5 Vdc, 3-wire G1/2 (DIN 3852-2-A) M12 x 1 (4-pin) -40 to 212 ºF ±0.2 in Per IEC 62828-4
LTI20-2-86-25-HT 0 Vdc to 5 Vdc, 3-wire G1/2 (DIN 3852-2-A) M12 x 1 (4-pin) -40 to 302 ºF ±0.2 in Per IEC 62828-4
LTI20-2-86-36 0 Vdc to 5 Vdc, 3-wire G1/2 (DIN 3852-2-A) 6' Integral cable -40 to 212 ºF ±0.2 in Per IEC 62828-4
LTI20-2-8-25 0 Vdc to 5 Vdc, 3-wire 1/2" NPT M12 x 1 (4-pin) -40 to 212 ºF ±0.2 in Per IEC 62828-4
LTI20-2-8-25-HT 0 Vdc to 5 Vdc, 3-wire 1/2" NPT M12 x 1 (4-pin) -40 to 302 ºF ±0.2 in Per IEC 62828-4
LTI20-2-86-36-HT 0 Vdc to 5 Vdc, 3-wire G1/2 (DIN 3852-2-A) 6' Integral cable -40 to 302 ºF ±0.2 in Per IEC 62828-4
LTI20-36-8-25 4 mA to 20 mA, 3-wire 1/2" NPT M12 x 1 (4-pin) -40 to 212 ºF ±0.2 in Per IEC 62828-4
LTI20-36-8-25-HT 4 mA to 20 mA, 3-wire 1/2" NPT M12 x 1 (4-pin) -40 to 302 ºF ±0.2 in Per IEC 62828-4
LTI20-36-8-36 4 mA to 20 mA, 3-wire 1/2" NPT 6' Integral cable -40 to 212 ºF ±0.2 in Per IEC 62828-4
