NOSHOK, Inc.

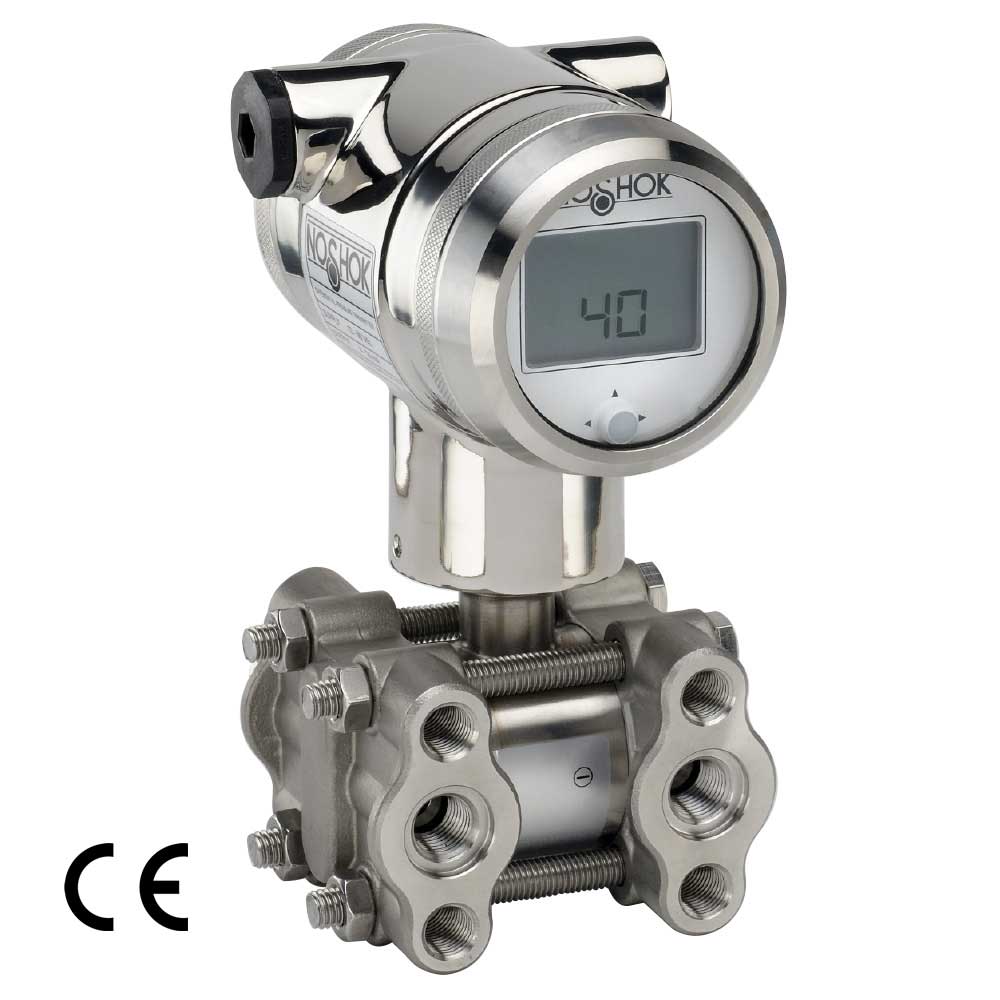

PTI40 Series Premier Accuracy Intelligent Industrial Pressure Transmitters & Transducers

Collection image

Series Overview

  • Adjustable pressure ranges 1 psig to 300 psig
  • All ranges are user adjustable from vacuum to full scale with standard on board display
  • 4 mA to 20 mA HART® optional pressure transmitter
  • Accuracy ±0.075% of adjusted span
  • 100:1 turn down
  • All Stainless Steel construction with 316 Stainless Steel wetted parts
  • CE compliant to suppress RFI, EMI and ESD

Documents

▼
PDF Marketing Flyers PDF Data Sheet PDF User Manual
Part NumberPressure RangeAccuracyOutput SignalProcess ConnectionElectrical Connection
PTI40-1psig-1-43-81-28 Min. span 0.15 psi, max. span 1.0 psi ±0.075% of adjusted span with up to 100:1 turn down 4 mA to 20 mA, 2-wire with HART 1/4" NPT Female IEC 61518 Flange with bleed valves 1/2" NPT Female
PTI40-300psig-1-43-81-28 Min. span 3 psi, max. span 300 psi ±0.075% of adjusted span with up to 100:1 turn down 4 mA to 20 mA, 2-wire with HART 1/4" NPT Female IEC 61518 Flange with bleed valves 1/2" NPT Female
PTI40-300psig-1-43-81-28-TC Min. span 3 psi, max. span 300 psi ±0.075% of adjusted span with up to 100:1 turn down 4 mA to 20 mA, 2-wire with HART 1/4" NPT Female IEC 61518 Flange with bleed valves 1/2" NPT Female
PTI40-6psig-1-43-81-28-TC Min. span 0.15 psi, max. span 6.0 psi ±0.075% of adjusted span with up to 100:1 turn down 4 mA to 20 mA, 2-wire with HART 1/4" NPT Female IEC 61518 Flange with bleed valves 1/2" NPT Female
PTI40-30psig-1-43-81-28 Min. span 0.3 psi, max. span 30 psi ±0.075% of adjusted span with up to 100:1 turn down 4 mA to 20 mA, 2-wire with HART 1/4" NPT Female IEC 61518 Flange with bleed valves 1/2" NPT Female
PTI40-30psig-1-43-81-28-TC Min. span 0.3 psi, max. span 30 psi ±0.075% of adjusted span with up to 100:1 turn down 4 mA to 20 mA, 2-wire with HART 1/4" NPT Female IEC 61518 Flange with bleed valves 1/2" NPT Female
PTI40-6psig-1-43-81-28 Min. span 0.15 psi, max. span 6.0 psi ±0.075% of adjusted span with up to 100:1 turn down 4 mA to 20 mA, 2-wire with HART 1/4" NPT Female IEC 61518 Flange with bleed valves 1/2" NPT Female
PTI40-1psig-1-43-81-28-TC Min. span 0.15 psi, max. span 1.0 psi ±0.075% of adjusted span with up to 100:1 turn down 4 mA to 20 mA, 2-wire with HART 1/4" NPT Female IEC 61518 Flange with bleed valves 1/2" NPT Female
