  • 2100 Series 6,000 psi Rating Static Pressure Block and Bleed 2 Manifold Valve with Soft Seat

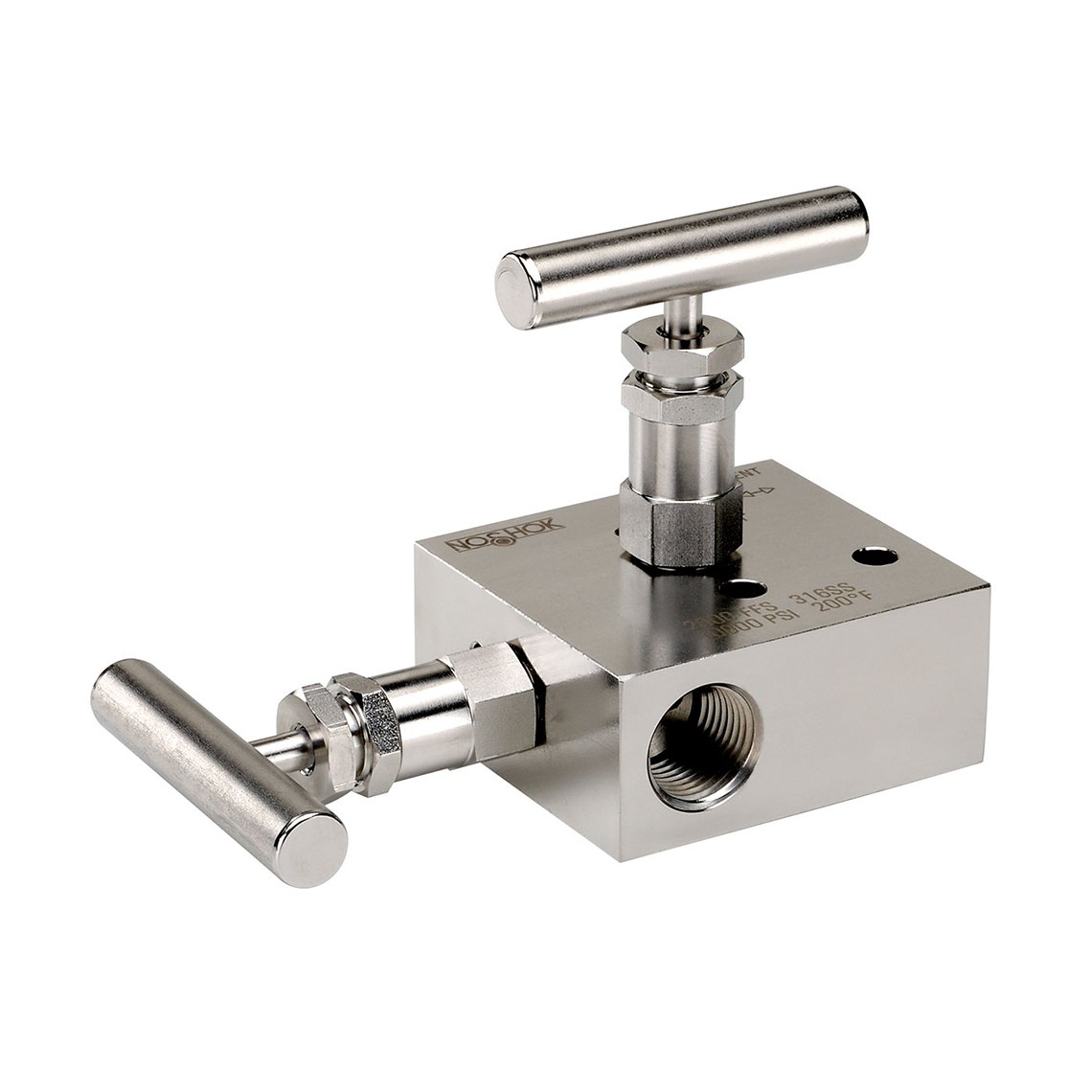

    2000/2100 Series Static Pressure Block and Bleed 2 Manifold Valves with Hard and Soft Seat

    (7)

    • Combines isolating and venting in a single valve, eliminating the need for tubing and fittings
    • Block valve isolates the downstream process fluids and the bleed valve exhausts upstream fluids enabling static pressure transmitters, switches or gauges to be removed without disturbing the permanent piping installation
    • Block valve is located on the left side and the bleed valve is located on top in a 90º orientation, venting is to the right

  • 2020/2120 Series Liquid Level 2 Manifold Valves with Hard Seat and Soft Seat

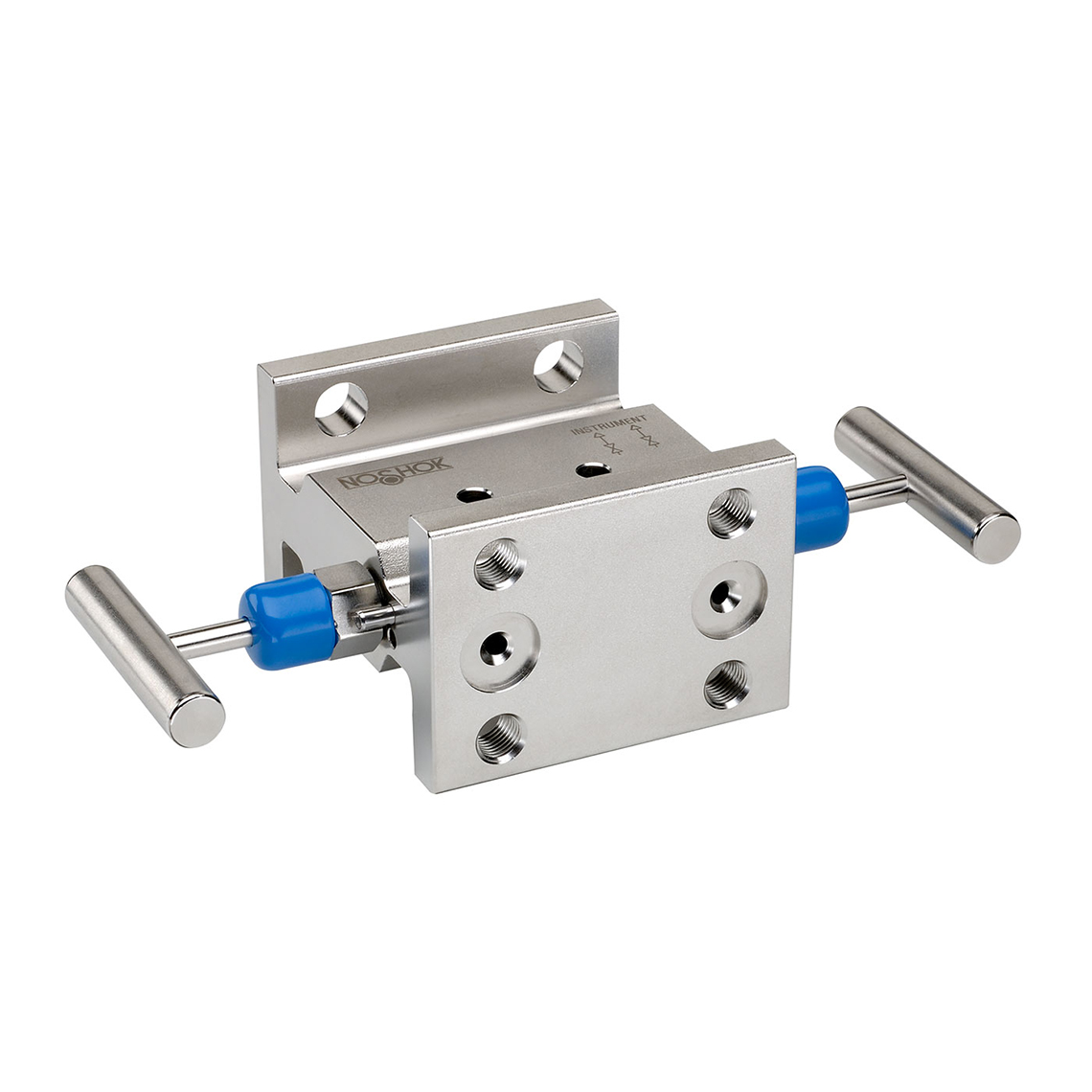

    2020/2120 Series Liquid Level 2 Manifold Valves with Hard Seat and Soft Seat

    (8)

    • Designed for use with differential pressure transmitters in liquid level applications
    • Available in either single flange or double flange connection for direct installation
    • 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability

  • 5180-Chart-Recorder-Manifold.jpg

    2180/3180/5180 Series Chart Recorder Manifold Valves with Soft Seat

    (6)

    • Designed for use with chart recorders
    • 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability
    • Replaceable Acetal seat and straight through porting for bidirectional, high capacity flow and easy roddable cleaning

  • 2602/2702 Series 0.141 in. Orifice Mini Block and Bleed 2 Manifold Valves with Hard Seat and Soft Tip

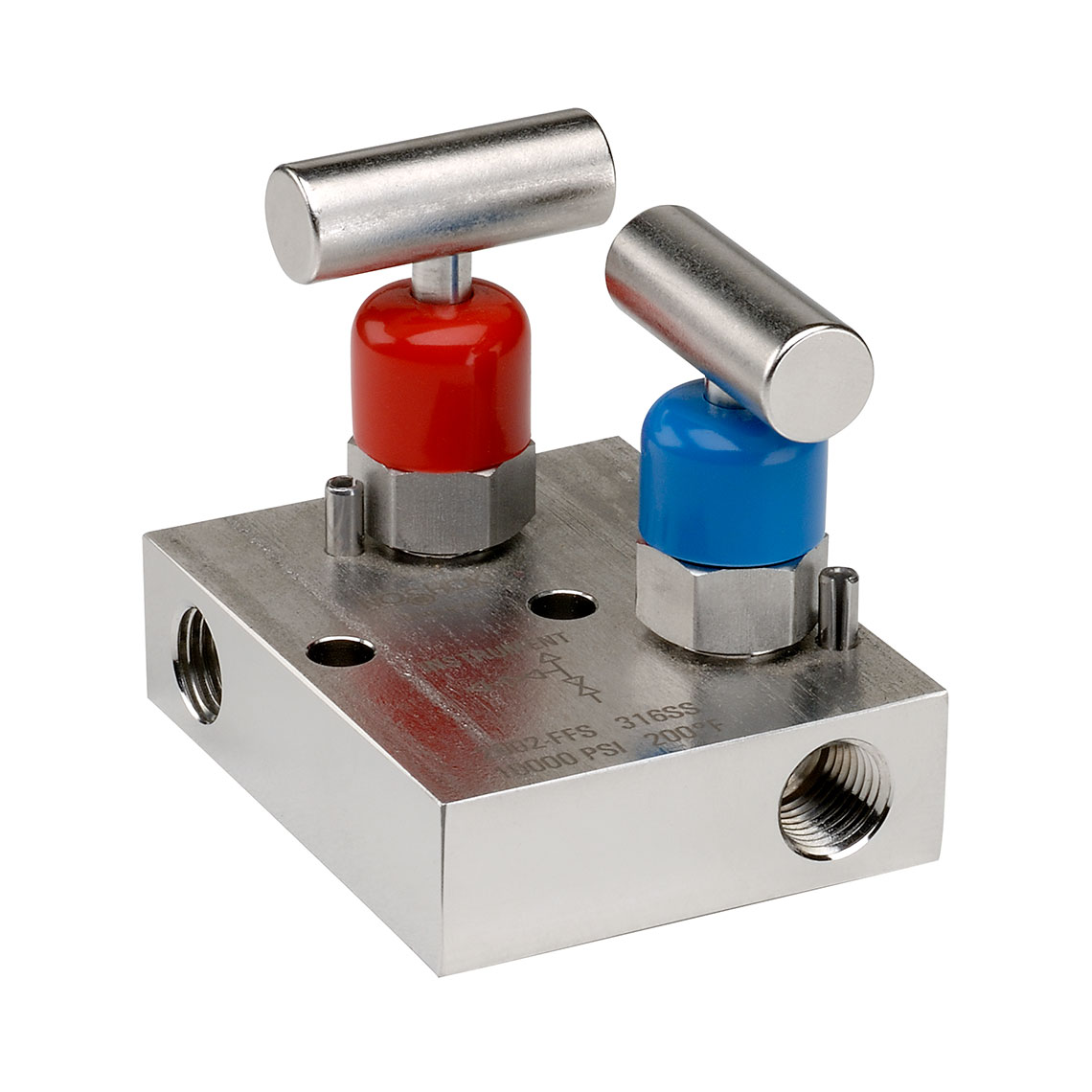

    2602/2702 Series 0.141 in. Orifice Mini Block and Bleed 2 Manifold Valves with Hard Seat and Soft Tip

    (3)

    • Combines isolating and venting in a single valve, eliminating the need for tubing and fittings
    • Block valve isolates the downstream process fluids and the bleed valve exhausts upstream fluids enabling static pressure transmitters, switches or gauges to be removed without disturbing the permanent piping installation
    • Valves are located on the top to fit into compact spaces and two holes are provided for mounting, venting is to the left

  • 2604/2704 Series 0.156 in. Orifice Block and Bleed 2 Manifold Valves with Hard Seat and Soft Tip

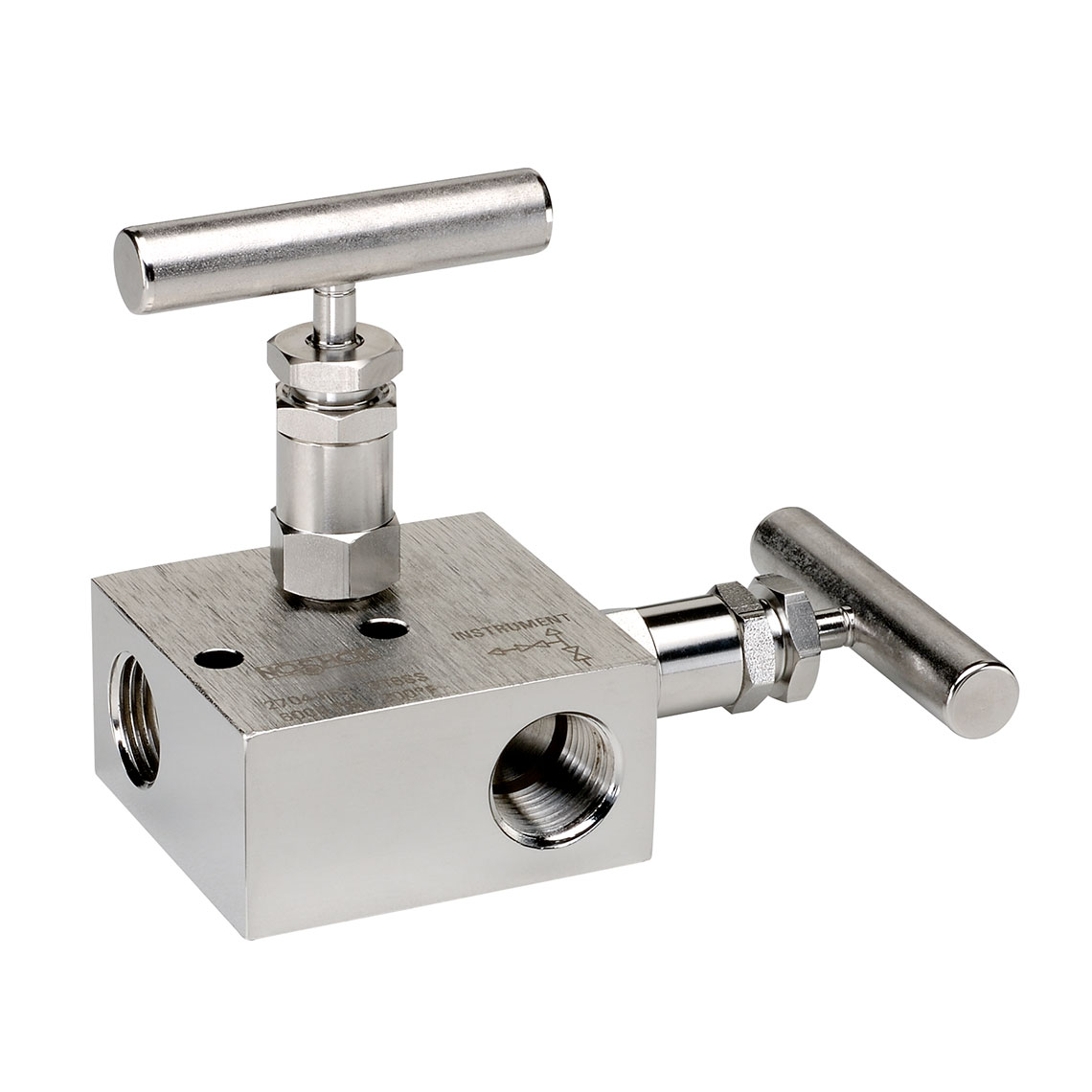

    2604/2704 Series 0.156 in. Orifice Block and Bleed 2 Manifold Valves with Hard Seat and Soft Tip

    (5)

    • Combines isolating and venting in a single valve, eliminating the need for tubing and fittings
    • Block valve isolates the downstream process fluids and the bleed valve exhausts upstream fluids enabling static pressure transmitters, switches or gauges to be removed without disturbing the permanent piping installation
    • Block valve is located on the right and the bleed valve is located on top in a 90º orientation, venting is to the left

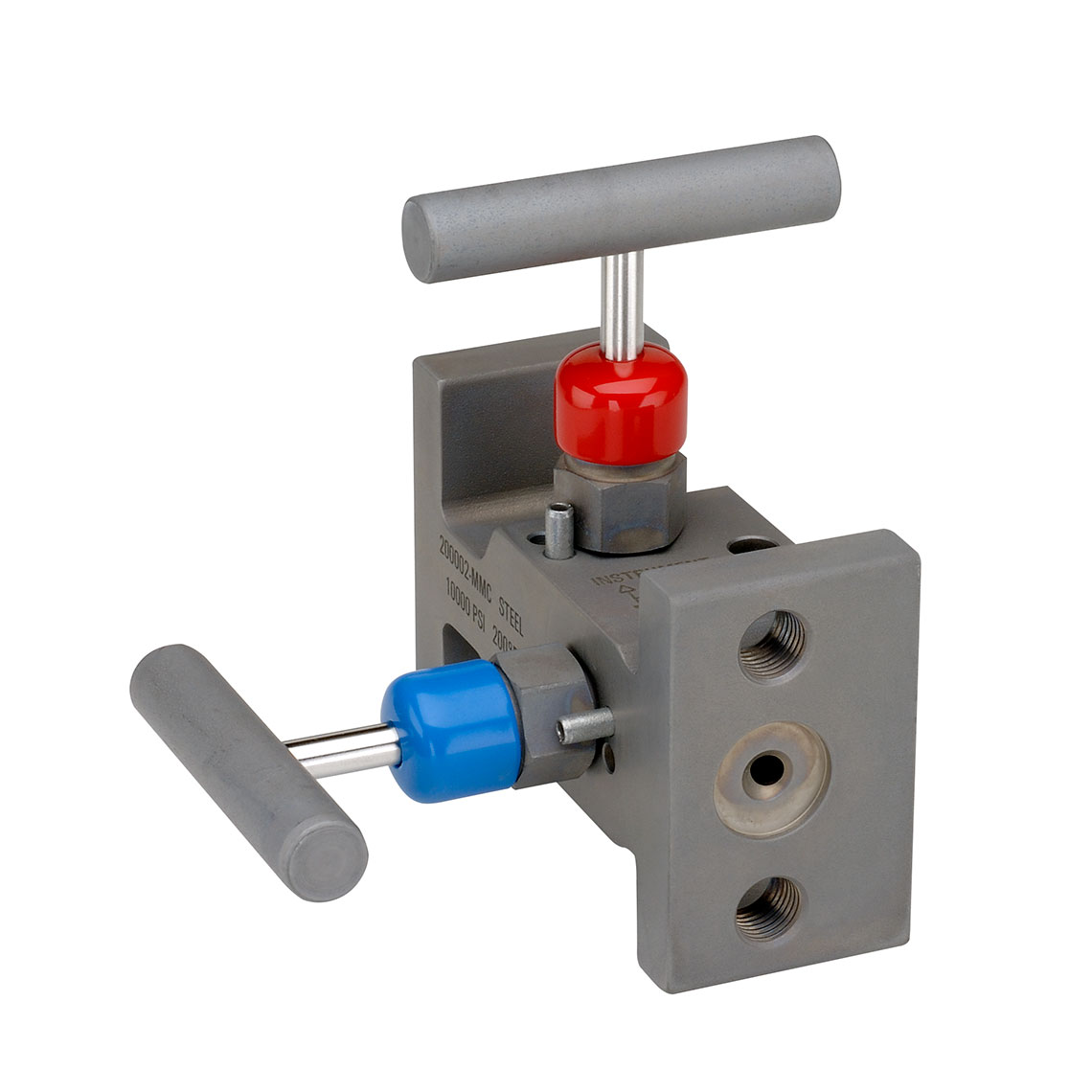

  • 200002 Series Narrow Block and Bleed 2 Manifold Valves with Hard and Soft Seat

    • Combines isolating and venting in a single valve, eliminating the need for tubing and fittings
    • Block valve isolates the downstream process fluids and the bleed valve exhausts upstream fluids enabling static pressure transmitters, switches or gauges to be removed without disturbing the permanent piping installation
    • Block valve is located on the left side and the bleed valve is located on top in a 90º orientation, venting is to the right
