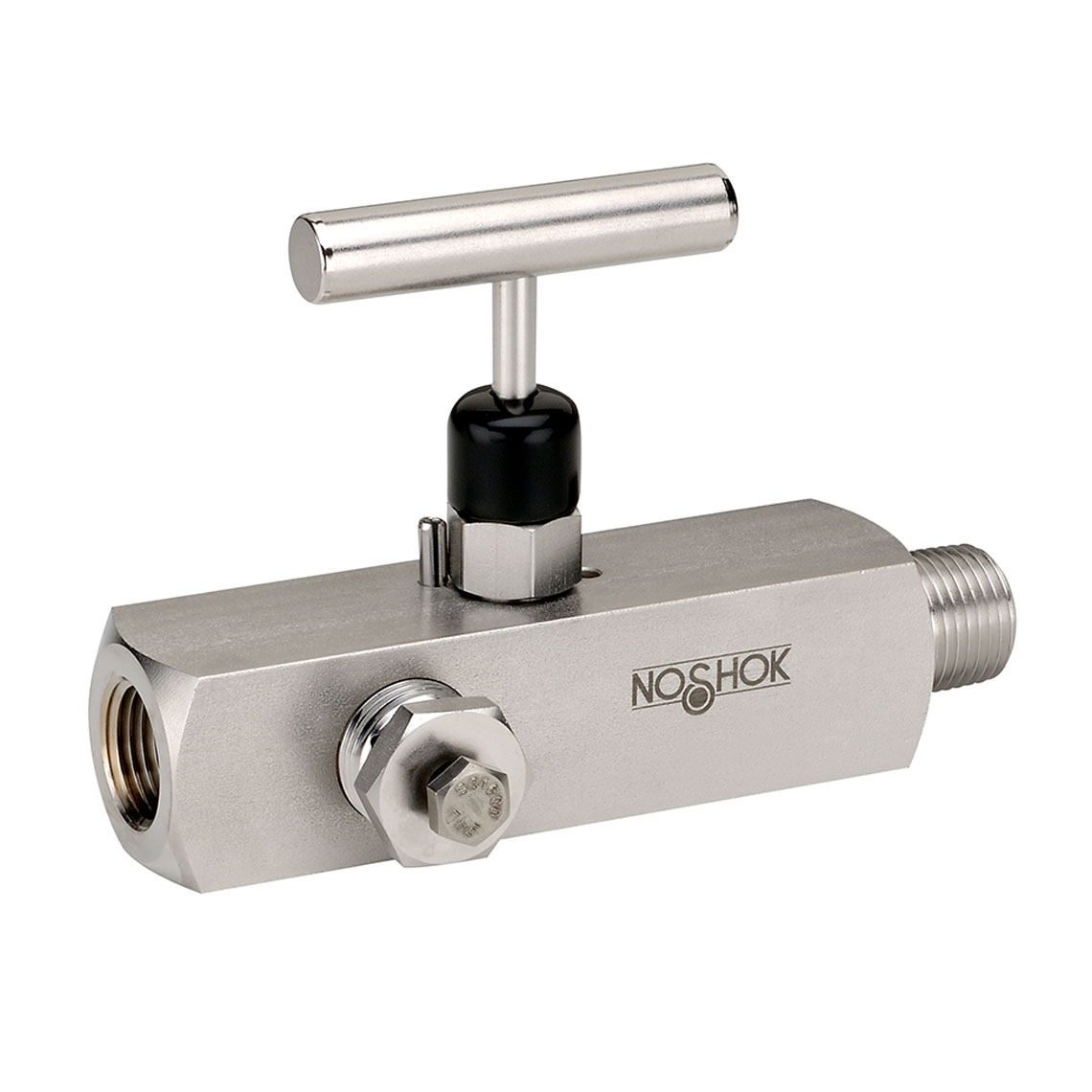

About

  • Multiport design reduces the number of gauge and other instrument connections to permanent piping installations, decreasing possible leak paths
  • Optional bleed plugs further allow pressure to be bled off without disturbing the permanent piping installation
  • 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability

    Featured Specifications

    Connection

    1/2" NPT Male x NPT Female

    Material

    Electropolished 316 Stainless Steel

    Pressure Ratings at 200 Degree Fahrenheit (ºF) Temperature

    6,000 psi

    Orifice Size

    0.187 in

    Documents

    ▼
    Dimensions Additional Dimensions PDF Data Sheet
    3D Model3D Model
    Product Specifications|Additional Options|Additional Information|Options and Accessories|Note|Prop 65 Warnings

    Product Specifications

    ▲
    Type
    Needle Valve
    Material
    Electropolished 316 Stainless Steel
    Stem Seal and Type
    All 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and Polytetrafluoroethylene (PTFE) back-up ring below the threads, Polytetrafluoroethylene (PTFE) packing optional
    Pressure Ratings at 200 Degree Fahrenheit (ºF) Temperature
    6,000 psi
    Weight
    2.2 lb
    Orifice Size
    0.187 in
    Cv Coefficient
    0.64
    Connection
    1/2" NPT Male x NPT Female
    Seat
    Hard Seat
    Valve Material
    Stainless Steel
    Warranty
    3 yr
    Related Items
    • 804-MS, 1/2" National Pipe Thread (NPT), Male, 316 Stainless Steel, Hard Seat 0.159" Bleed Port Valve
    • BP1-S, 1/2" National Pipe Thread (NPT) Stainless Steel Bleed Plug
    • PG1-SS1-EP, 1/2" National Pipe Thread (NPT) Stainless Steel Plug

    Additional Options

    ▲
    Additional Options
    • Soft Seats
      • PEEK (PK1)
      • PCTFE (KF1)
    • Stem Tips
      • Non-rotating (316 stainless) (T1 )
    • O-Rings
      • EPDM (EM1)
      • FFKM (Perfluoroelastomer 3018 or equivalent) (KZ1)
      • NBR (NB1)
    • Panel Mountings
      • Panel mount (1 nut) (PM1)
      • Panel mount (2 nuts) (PM2)
    • Handles
      • 1-3/8" Phenolic (HL4)
      • 1-3/4" Phenolic (HL5 )

    Additional Information

    ▲
    Additional Information
    • FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE packing optional
    • All stem threads are rolled for strength and ease of operation
    • One-piece bonnet with a metal-to-metal seal to the valve body below the bonnet threads
    • Slotted spring pin to prevent accidental loosening
    • Vinyl dust cap for bonnet and stem (non-packing)

    Options and Accessories

    ▲
    Installed Options and Accessories
    • Soft Seats
      • PEEK (PK1)
      • PCTFE (KF1)
    • Packing
      • PTFE (P1)
    • Stem Tips
      • Non-rotating (316 Stainless Steel) (T1)
    • O-Rings (Other o-ring materials available on request)
      • EPDM (EM1)
      • FFKM (Perfluoroelastomer) 3018 or equivalent (KZ1)
      • NBR (NB1)
    • Panel Mount
      • 1 nut (PM1)
      • 2 nuts (PM2)
    • Handles
      • 1-3/8" Phenolic Handle (HL4)
      • 1-3/4" Phenolic Handle (HL5)
    • Cleaning For Oxygen Service (Stainless Steel Only)
    Assembly Options
    NOSHOK offers multiple assembly options to meet your specific system requirements. Consult factory to discuss your customized solution.
    Uninstalled Options and Accessories
    • Plug, Steel (PG1-CS1-ZN1)
    • Plug, Stainless Steel (PG1-SS1-EP)
    • Bleed Plug, Steel, 1/2" NPT (BP1-C)
    • Bleed Plug, Stainless Steel, 1/2" NPT (BP1-S)
    • Bleed Plug, Stainless Steel, 1/4" NPT (BP2-S)
    Bleed Valve
    Bleed valves provide a convenient means to relieve process pressures trapped between a shut off valve and the instrument.

    Note

    ▲
    Note
    Plugs and bleed plugs are available and can be ordered separately.

    Please note that the standard o-ring in all the NOSHOK valves is FKM and the standard handles are "T" handles (HL2).

    The handle material will always match the material of the valve, unless otherwise specified. For example, the "T" handle (HL2) on the 204-MFC will be steel. When only the standard configuration is needed, no additional designations are necessary. Please consult the factory for special application requests

    All NOSHOK valve products conform to the MSS SP-99 instrument valves standards, and valves supplied with packing also conform to MSS SP-132 compression packing systems for instrument valves standard.

    Other o-ring materials available on request.
