About

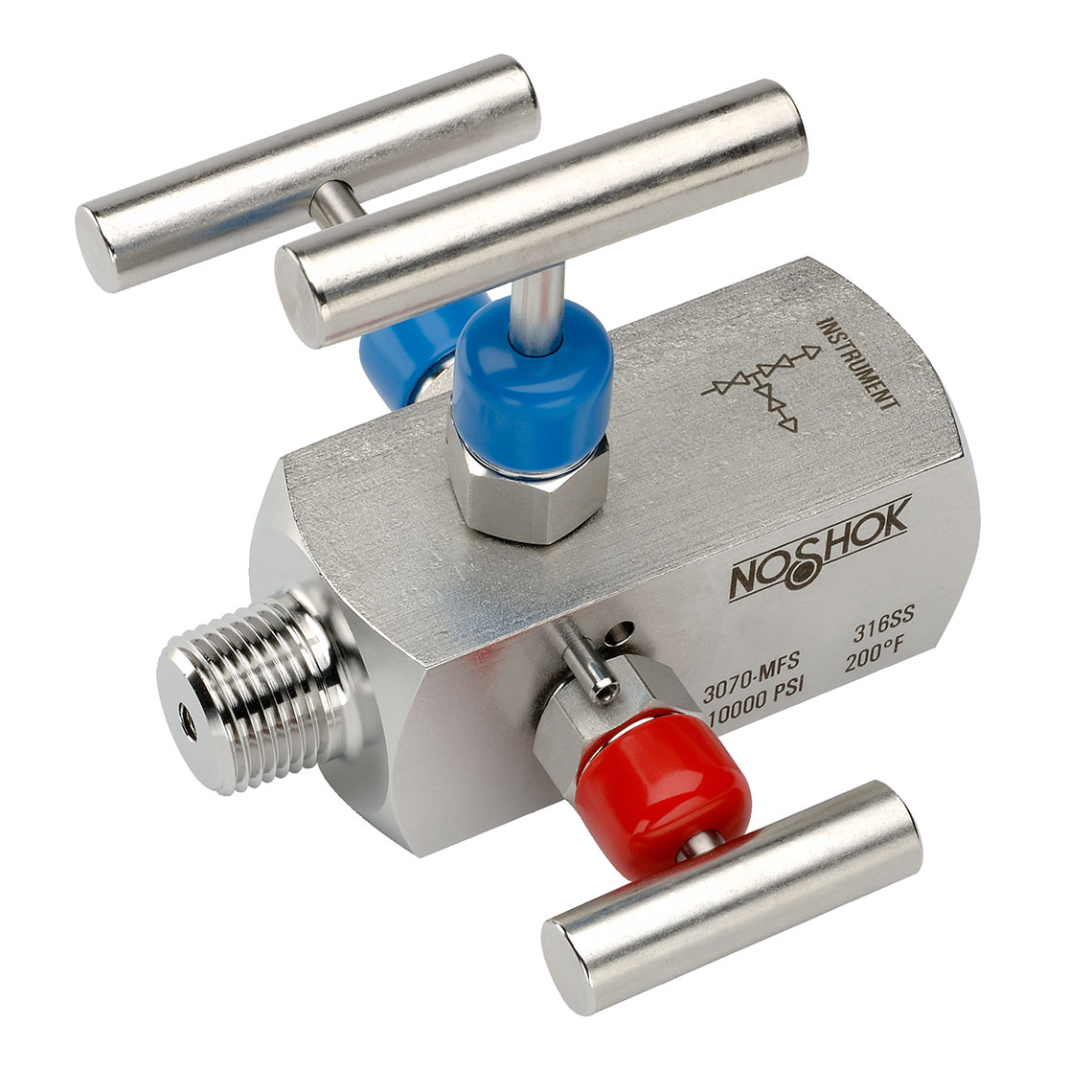

  • Combines isolating and venting in a single valve, eliminating the need for tubing and fittings
  • Block valve isolates the downstream process fluids, and the bleed valve exhausts upstream fluids enabling instruments to be removed without disturbing the permanent piping installation on the bottom
  • The 1/4" NPT vent plug is located 90º to the left and may be removed and replaced with exhaust piping to direct the fluids to a safe location

Featured Specifications

Connection

1/2" NPT

Materials

Electropolished 316 Stainless Steel

Pressure Ratings at 200 Degree Fahrenheit (ºF) Temperature

10,000 psi

Orifice Size

0.187 in

Process Type

Block & bleed

Documents

▼
Dimensions Additional Dimensions Flow Schematic PDF Data Sheet
3D Model3D Model
Product Specifications|Additional Options|Additional Information|Options and Accessories|Note|Prop 65 Warnings

Product Specifications

▲
Type
Needle Valve
Material
Electropolished 316 Stainless Steel
Stem Seal and Type
All 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and Polytetrafluoroethylene (PTFE) back-up ring below the threads, Polytetrafluoroethylene (PTFE) or Graphite packing optional
Pressure Ratings at 200 Degree Fahrenheit (ºF) Temperature
10,000 psi
Weight
3.2 lb
Orifice Size
0.187 in
Cv Coefficient
0.44
Connection
1/2" NPT
Seat
Hard Seat
Valve Type
Male-Female
Valve Material
Stainless Steel
Process Type
Block & bleed
Warranty
3 yr
Length
4 in
Extended Length
5-3/8 in
End Size
1/2 in

Additional Options

▲
Additional Options
  • Packings
    • PTFE (P1)
    • Graphite (P2)
  • Stem Tips
    • Non-rotating (316 stainless) (T1 )
    • Ball (440C stainless) (T5)
    • Ball (carbide) (T6)
    • Ball (Monel) (T8)
    • Non-rotating regulating (316 Stainless) (T9)
  • O-Rings
    • EPDM (EM1)
    • FFKM (Perfluoroelastomer 3018 or equivalent) (KZ1)
    • NBR (NB1)
  • Handles
    • 1-13/16" Mini "T" (HL1)
    • 2-1/2" "T" (HL2)
    • 1" Round knurled (H3)
    • 1-3/8" Phenolic (HL4)
    • 1-3/4" Phenolic (HL5 )

Additional Information

▲
Additional Information
  • 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability
  • Blow-out proof stem provides a secondary stem seal in the full open position
  • FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE or Graphite packing optional
  • All stem threads are rolled for strength and ease of operation
  • One-piece bonnet with a metal-to-metal seal to the valve body below the bonnet threads
  • Slotted spring pin to prevent accidental loosening
  • Vinyl dust cap for bonnet and stem (non-packing)

Options and Accessories

▲
Installed Options and Accessories
  • Packing (If a packing option is chosen, maximum pressure rating is 6,000 psi. Refer to the Pressure vs. Temperature: Packing Style with Compatible Fluid chart Options Reference Chart)
    • PTFE (P1)
    • Graphite (P2)
  • Stem Tips
    • Non-rotating (316 Stainless Steel) (T1)
    • Ball, 440C Stainless Steel (T5)
    • Ball, carbide (T6)
    • Ball, ceramic (T7)
    • Ball, Monel (T8)
    • Non-rotating regulating, 316 Stainless Steel (T9)
  • O-Rings (Other o-ring materials available on request)
    • EPDM (EM1)
    • FFKM (Perfluoroelastomer) 3018 or equivalent (KZ1)
    • NBR (NB1)
  • Panel Mount
    • 1 nut (PM1)
    • 2 nuts (PM2)
  • Handles
    • 1-13/16" Mini T-Handle (HL1)
    • 2-1/2" T-Handle (HL2)
    • 1" Round Knurled Handle (HL3)
    • 1-3/8" Phenolic Handle (HL4)
    • 1-3/4" Phenolic Handle (HL5)
  • Cleaning For Oxygen Service (Stainless Steel Only)
Assembly Options
NOSHOK offers multiple assembly options to meet your specific system requirements. Consult factory to discuss your customized solution.

Note

▲
Note
Packings - If a packing option is chosen, maximum pressure rating is 6,000 psi. Refer to the "Pressure vs Temperature: Packing Style with Compatible Fluid" chart.

O-Rings - Other o-ring materials available on request.

Please note that the standard o-ring in all the NOSHOK valves is FKM and the standard handles are block "T" handles (HL2) and bleed 1-3/8" mini "T" handle (HL7).

The handle material will always match the material of the valve, unless otherwise specified. For example, the "T" handle (HL2) on the 3070-FFC will be steel. When only the standard configuration is needed, no additional designations are necessary. Please consult the factory for special application requests.

All NOSHOK valve products conform to the MSS SP-99 instrument valves standards, and valves supplied with packing also conform to MSS SP-132 compression packing systems for instrument valves standard.
