About
- Provides clean, dry and oil-free compressed air
- Long life cartridges reduce filter maintenance
- Rugged bronze construction for marine applications
Featured Specifications
Efficiency
98 %
Rated Flow at 100 psig
20 scfm
Drain Type

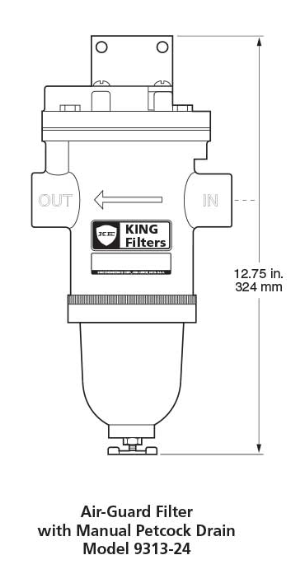

Manual Drain (Petcock)
Service-Parts-Dimensions-for-9313-Series-20-scfm-Air-Guard-Bronze-Filters.pdf
Product Specifications
▲| Type | Air-Guard Bronze Filter |
| Series | Air-Guard Bronze Filter 20 scfm |
| Drain Type | Manual Drain (Petcock) |
| Efficiency | 98 % |
| Inlet Pressure [Max] | 150 psig |
| Rated Flow at 100 psig | 20 scfm |
| Connection Size | 45659 in |
| Connection Type | National Pipe Thread (NPT) |
| Filter Type | Dual Cartridge Coalescing Elements |
| Housing Material | Bronze |
| Weight | 15 lb |
| Weight | 7 kg |
Applications
▲| Applications |
|
Options and Accessories
▲| Options and Accessories | Replacement Cartridges: A22-11-1-1 cartridge Set Type 300 Scrubber Type 300 Polisher Filter Rating - 2.0 µm Efficiency - 98.0 % |
Warnings
▲| Product Warranty | All KING-GAGE, a NOSHOK Company products are guaranteed to be free from defects in material and workmanship for one (1) year from the date of purchase. Repair Services Warranty: 90 days limited warranty. |
| Prop 65 Warnings | ⚠️ WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Additional Information
▲| Additional Information | KING Air-Guard Bronze Filters are especially suited to the rigors of marine service. They provide high performance filtration in demanding shipboard compressed air systems. Extremely efficient coalescing action cartridge elements remove both solid and liquid contaminant from the air stream. When equipped with an automatic drain sump, the Air-Guard Filter can handle considerable amounts of oil mist and water condensation typically present in the ship's compressed air supply. The preferred choice for high efficiency compressed air filtration, KING Air-Guard use a proven 2-stage dual cartridge design. Coalescing action was first introduced by King Engineering over 30 years ago to effectively remove oil, water and particulate from compressed air. While other filters now use this same process, KING Air-Guard filters employ a unique cartridge design that delivers cleaner air longer. Dual cartridges guard against any carryover of contaminants even when the elements reach the end of their service life. An extremely rugged cast bronze body is a logical choice when corrosive environments preclude aluminum housings. Well suited to the unique rigors of seaside locations or any application where high salinity atmosphere might cause premature deterioration of aluminum housings. The Air-Guard Bronze Filter is a durable alternative when aluminum or plastics are not desirable. |
Note
▲| Note | Type 300/300 cartridge set included with the 1-1 efficiency model |
