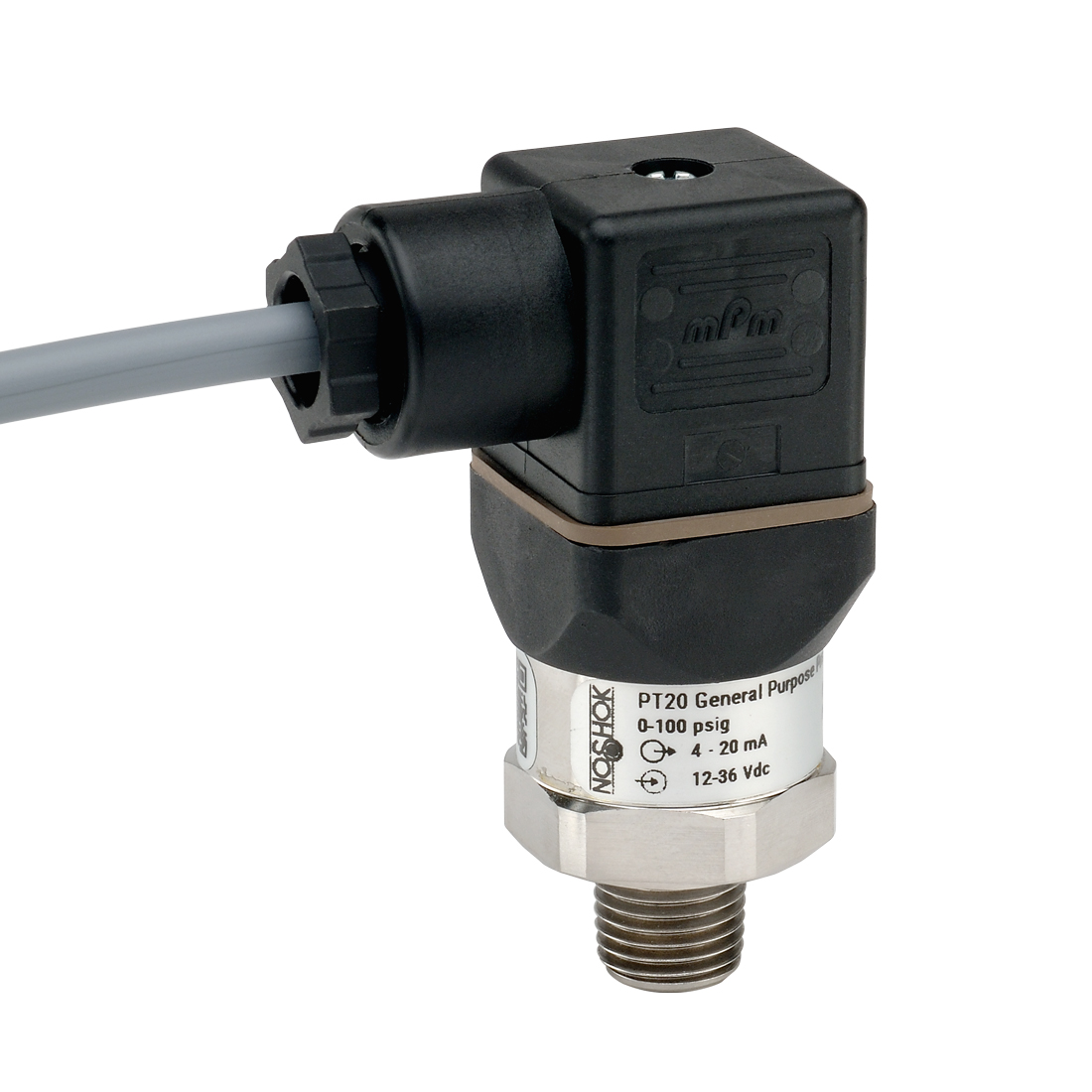

General Purpose Fixed Range Pressure Transmitter, 0 to 200 psi gauge, ±0.5% of span, non-linearity best fit straight line per IEC 61298-2 at reference conditions, 4 mA to 20 mA, 2-wire, 1/4 NPT male, DIN form A with 3 ft cable
Unit of Measure

Specifications

Product Series

 N/A PT20 General Purpose Fixed Range Pressure Transmitter

Pressure Range

 N/A 0 to 200 psi gauge

Accuracy

 N/A ±0.5% of span, non-linearity best fit straight line per IEC 61298-2 at reference conditions

Output Signal

 N/A 4 mA to 20 mA, 2-wire

Process Connection

 N/A 1/4 NPT male

Electrical Connection

 N/A DIN form A with 3 ft cable

Power Requirement

 N/A 8 Vdc to 30 Vdc

Environmental Rating

 N/A IP65

Materials of Construction (Wetted Parts)

 N/A 316 Stainless Steel with 316 Stainless Steel housing

Media Temperature Range

 N/A 32 to 176 ºF0 to 80 ºC

Application

 N/A
  • HVAC
  • Hydraulics & pneumatics
  • Injection molding machines
  • General Industrial
  • Stamping & forming presses

Related Items

Related Items

 N/A , 1/4" National Pipe Thread (NPT), Male x Female, Stainless Steel, Hard Seat, 0.187" Orifice Block and Bleed 2-Valve
, 1/4" National Pipe Thread (NPT) Instrument Connection, 316 Stainless Steel, 1/4" National Pipe Thread (NPT) Process Connection, 316 Stainless Steel Type 25 Seal with 316 Stainless Steel Diaphragm
, 1/4" National Pipe Thread (NPT), Male x Female, 316 Stainless Steel, Hard Seat, 0.187" Orifice Needle Valve
, 1/4" National Pipe Thread (NPT), 15,000 psi Pressure Rating Piston Type 316 Stainless Steel Snubber
