About
- Adjustable pressure ranges vacuum to 1,450 psig
- All ranges are user adjustable from vacuum to full scale with standard on board display
- 4 mA to 20 mA HART® optional pressure transmitter
- Accuracy ±0.1% of adjusted span
- 10:1 turn down
- All Stainless Steel construction with 316 Stainless Steel wetted parts
- CE compliant to suppress RFI, EMI and ESD
Featured Specifications
Accuracy
±0.1% of adjusted span with 10:1 turn down
Output Signal
4 mA to 20 mA, 2-wire
Process Connection
Threaded flush diaphragm for flange
Electrical Connection
PG9 Cable Gland
Documents
Marketing Flyers
Product Specifications|Additional Technical Information|Options and Accessories|Related Items|Limitations Which Apply Are|Prop 65 Warnings
Product Specifications

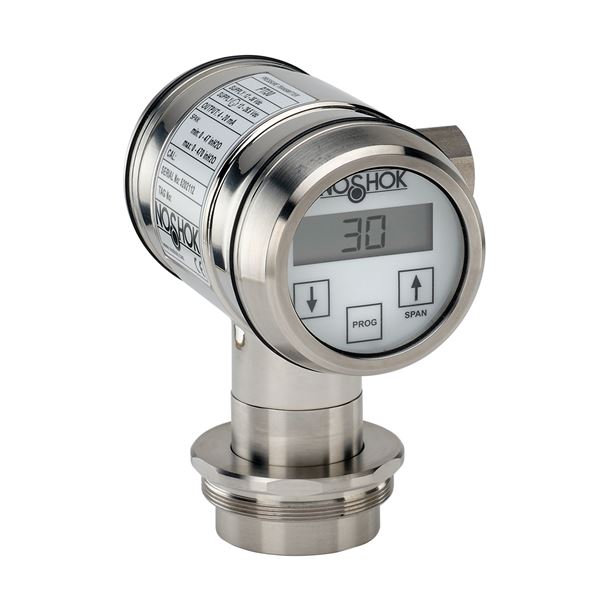

▲| Product Series | PTI30 High Accuracy Intelligent Pressure Transmitter |
| Pressure Range | Min. span 4 psi, max. span 17.4 psi (lowest vacuum pressure -15 psig) |
| Accuracy | ±0.1% of adjusted span with 10:1 turn down |
| Output Signal | 4 mA to 20 mA, 2-wire |
| Electrical Connection | PG9 Cable Gland |
| Environmental Rating | IP66 |
| Process Connection | Threaded flush diaphragm for flange |
| Power Requirement | 12 Vdc to 36 Vdc |
| Materials of Construction (Wetted Parts) | 316 Stainless Steel with 304 Stainless Steel housing |
| Media Temperature Range ºF | -4 to 176 ºF |
| Media Temperature Range ºC | -20 to 80 ºC |
| Media Temperature Range ºF | -4 to 176 ºF |
| Media Temperature Range ºC | -20 to 80 ºC |
| Applications |
|
Additional Technical Information
▲| Stability | <0.1%/year |
| Adjustment | By 3 push buttons on display or optional HART® protocol |
| Response Time | <250 ms |
| Service Life | >10 yr |
| Ambient Temperature Range ºF | -4 to 158 ºF |
| Ambient Temperature Range ºC | -20 to 70 ºC |
| Ambient Temperature Range ºF | -4 to 158 ºF |
| Ambient Temperature Range ºC | -20 to 70 ºC |
| Flange Temperature Range ºF | -4 to 212 ºF |
| Flange Temperature Range ºC | -20 to 100 ºC |
| Flange Temperature Range ºF | -4 to 212 ºF |
| Flange Temperature Range ºC | -20 to 100 ºC |
| Connection Material | 316 Stainless Steel |
| Measuring Element | 316 Stainless Steel (Hastelloy C, Tantalum or Goldplated Optional) |
| Approximate Weight | 3.3 lb |
Options and Accessories
▲| Options | TC Transparent Cover (for display) |
| Digital Indicators | NOSHOK Digital Indicators provide local indication for pressure, level and temperature transmitters. |
Applications
▲| Application |
|
Limitations Which Apply Are
▲| Limitations Which Apply Are | These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation. In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice. |
