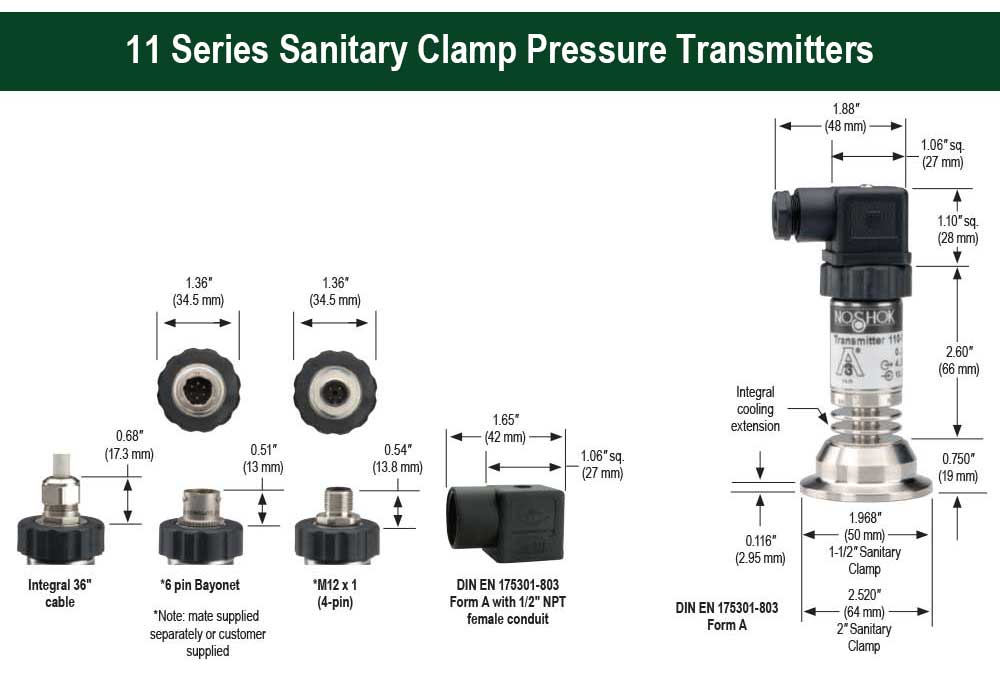

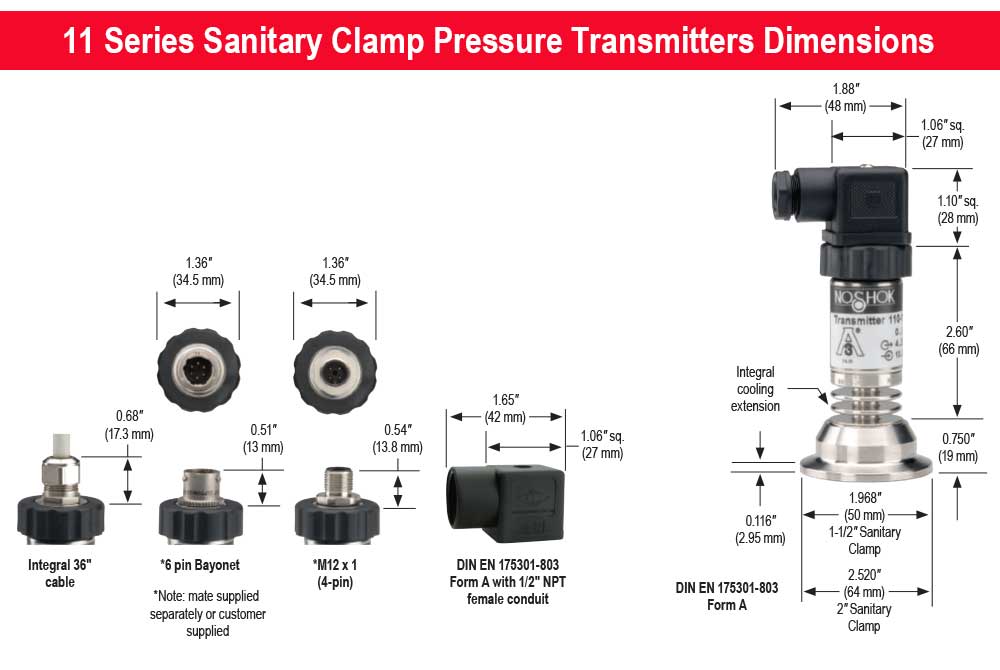

110-12-4-615-1-40-1-8

11

1-1/2 in

1.1 lb

316 Stainless Steel

±0.25% full scale (BFSL)

4 mA to 20 mA, 2-wire

DIN EN 175301-803 Form A (DIN European Standard (EN) 175301-803 Form A)

Ingress Protection (IP65)

316 Stainless Steel

FFL77 White Oil

Series 615 transducer

0 to 15 psig

±0.2% full scale for 1 year, non-accumulating

±10% full scale for zero and span

≤10 ms

> 100,000,000 Load Cycles

10 Vdc to 30 Vdc (4 mA to 20 mA, 2-Wire, 0 Vdc to 5 Vdc, 3-Wire, 1 Vdc to 5 Vdc, 3-Wire, 1 Vdc to 6 Vdc, 3-Wire) 14 Vdc to 30 Vdc (0 Vdc to 10 Vdc, 3-Wire, Vdc to 11 Vdc, 3-Wire)

0.02 A

≤ 5,000 O

≤ 10,000 O

316 Stainless Steel

Reverse polarity, over-voltage and short circuit protection

European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326:2014/A1:1998, Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection

1,000 g

150 g

3 yr

1.1 lb

30 to 175 ºF

0 to 80 ºC

Effect ±0.01%/ºF for zero and span

-40 to 300 ºF

-40 to 150 ºC

-40 to 176 ºF

-40 to 80 ºC

NOSHOK Digital Indicators provide local indication for pressure, level and temperature transmitters.

• Clamp-style fittings are constructed of T304 Stainless Steel; T316 Stainless Steel on request
• Double hinge design for easy installation and removal
• Available in sizes from 3/4" to 4"
• Standard pressure rating of 500 psi at 70 ºF (21 ºC); up to 3,000 psi rating on request
• Clamp gaskets are available in NBR, EPDM, PTFE and FKM
• All clamps and gaskets meet FDA and 3A sanitary standards

ASME-BPE Sanitary Clamp
1-1/2" (CR 12)
2" (CR 16)
2-1/2" (CR 20)
3" (CR 24)

NBR Gasket
1-1/2" (BG 12)
2" (BG 16)
2-1/2" (BG 20)
3" (BG 24)

PTFE Gasket
1-1/2" (TG 12)
2" (TG 16)
2-1/2" (TG 20)
3" (TG 24)

NOSHOK pressure transmitters or transducers are not to be used in heat sterilization systems as stated in 3A Standard 74-03 paragraph D10.1.2.

Diaphragm seal must be installed facing downward or in a vertical position for drainability. Do not install diaphragm seal facing in an upward position.

These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.

In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
