Name: 2070-MFS 2 Valve Block & Bleed, Hard Seat, 1/2 NPT Male - 1/2 NPT Female, 316 SS, 0.187" Orifice
Brand: NOSHOK
SKU: 2070-MFS

About

2 Valve Block & Bleed, Hard Seat, 1/2 NPT Male - 1/2 NPT Female, 316 SS, 0.187" Orifice

Featured Specifications

Connection

1/2" NPT

Materials

Electropolished 316 Stainless Steel

Pressure Rating at 200ºF

10,000

Process Type

Block & bleed

Valve Material

Stainless Steel

Valve Type

Male-Female

Dimensions

Additional Dimensions

Flow Schematic

Data Sheet

3D CAD Model

Product Specifications|Additional Options

Type	Needle Valve
Connection	1/2" NPT
Valve Type	Male-Female
Valve Material	Stainless Steel
Material	Electropolished 316 Stainless Steel
Stem Seal and Type	All 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and Polytetrafluoroethylene (PTFE) back-up ring below the threads, Polytetrafluoroethylene (PTFE) or Graphite packing optional
Pressure Rating at 200ºF	10,000
Weight	2 lb
Orifice Size	0.187 in
Flow Coefficient Cv	0.44
Seat	Hard Seat
Process Type	Block & bleed
Length	4 in

Additional Options	Stem Tips Ball (440C stainless) (T5) Ball (carbide) (T6) Ball (ceramic) (T7) Ball (Monel) (T8) Non-rotating regulating (316 Stainless) (T9) O-Rings EPDM (EM1) FFKM (Perfluoroelastomer 3018 or equivalent) (KZ1) Handles 2-1/2" "T" (HL2) 1" Round knurled (HL3) 1-3/8" Phenolic (HL4) 1-3/4" Phenolic (HL5 )
Limitations Which Apply Are	These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation. In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Additional Information	100% helium leak tested to 1 x 10^-4 ml/s for guaranteed performance and reliability Blow-out proof stem provides a secondary stem seal in the full open position FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE or Graphite packing optional All stem threads are rolled for strength and ease of operation One-piece bonnet with a metal-to-metal seal to the valve body below the bonnet threads Slotted spring pin to prevent accidental loosening Vinyl dust cap for bonnet and stem (non-packing)

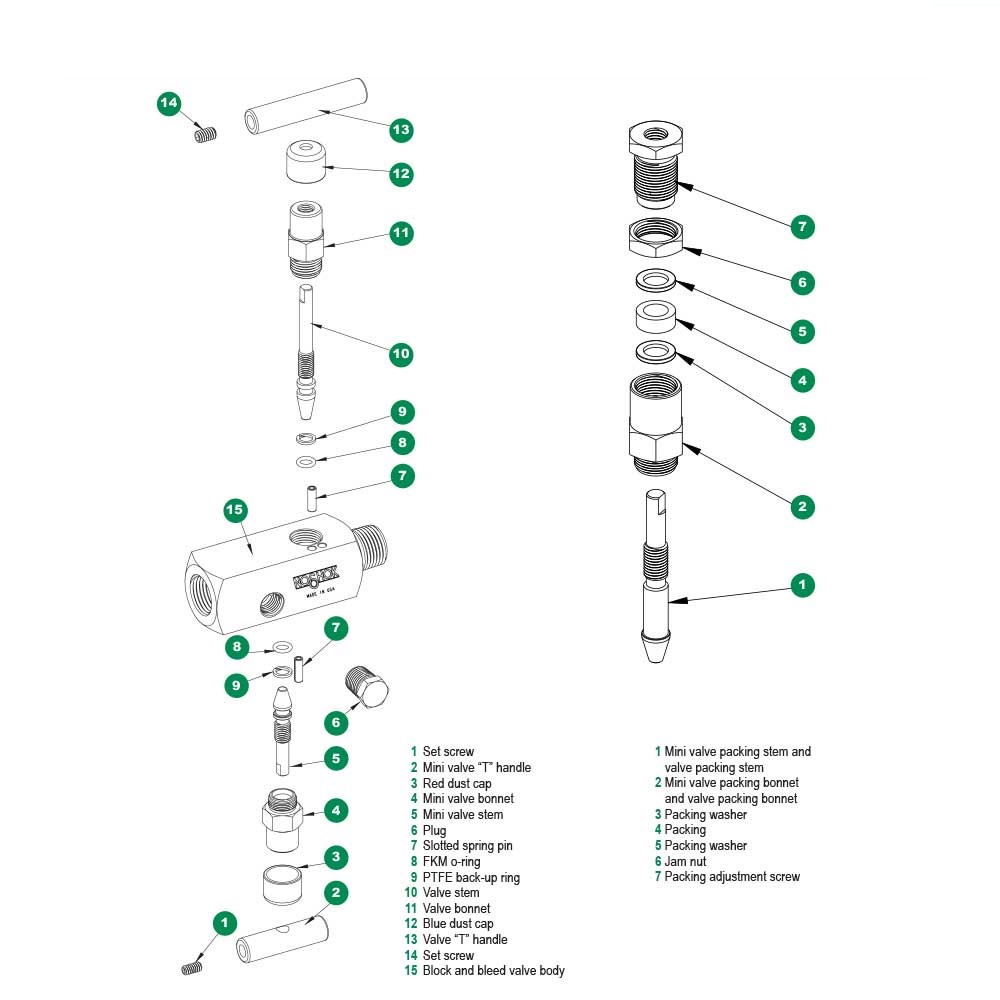

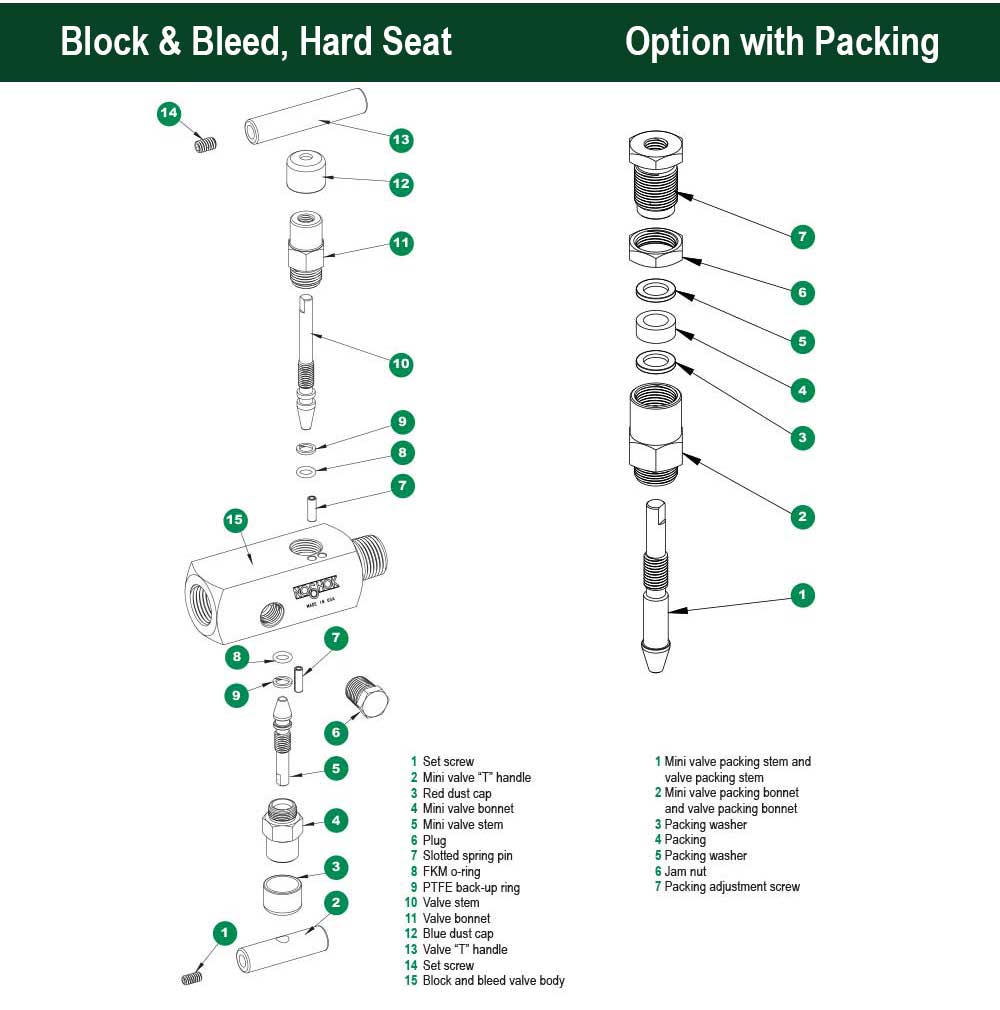

Installed Options and Accessories	Packing (If a packing option is chosen, maximum pressure rating is 6,000 psi. Refer to the Pressure vs. Temperature: Packing Style with Compatible Fluid chart Options Reference Chart) PTFE (P1) Graphite (P2) Stem Tips Non-rotating (316 Stainless Steel) (T1) Ball, 440C Stainless Steel (T5) Ball, carbide (T6) Ball, ceramic (T7) Ball, Monel (T8) Non-rotating regulating, 316 Stainless Steel (T9) O-Rings (Other o-ring materials available on request) EPDM (EM1) FFKM (Perfluoroelastomer) 3018 or equivalent (KZ1) NBR (NB1) Panel Mount 1 nut (PM1) 2 nuts (PM2) Handles 1-13/16" Mini T-Handle (HL1) 2-1/2" T-Handle (HL2) 1" Round Knurled Handle (HL3) 1-3/8" Phenolic Handle (HL4) 1-3/4" Phenolic Handle (HL5) Cleaning For Oxygen Service (Stainless Steel Only)
Uninstalled Options and Accessories	Bleed Plug, Stainless Steel, 1/4" NPT (BP2-S)
Assembly Options	NOSHOK offers multiple assembly options to meet your specific system requirements. Consult factory to discuss your customized solution.
Note	Please consult the factory for special application requests. All NOSHOK valve products conform to the MSS SP-99 instrument valves standards, and valves supplied with packing also conform to MSS SP-132 compression packing systems for instrument valves standard.
Prop 65 Warnings	⚠️ WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Handle	2-1/2" “T” handle (block), 1-13/16" Mini “T” handle (bleed)
Handle Material	Stainless Steel
Stem Tip	Stainless Steel
