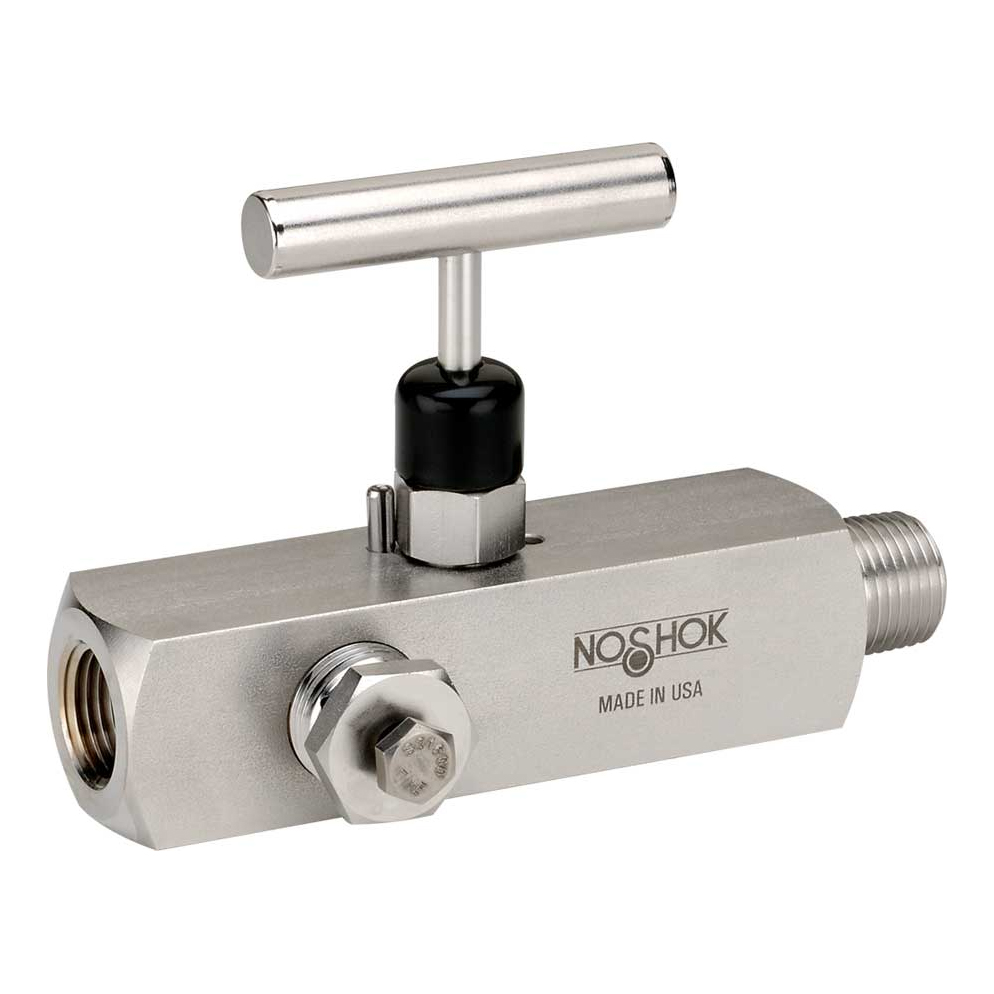

Name: 30604-MFS Multiport Valve, Soft Seat, 3/4 NPT Male - 1/2 NPT Female, 316 SS, 0.187" Orifice
Brand: NOSHOK
SKU: 30604-MFS

About

Multiport Valve, Soft Seat, 3/4 NPT Male - 1/2 NPT Female, 316 SS, 0.187" Orifice

Featured Specifications

Connection

3/4" x 1/2" NPT Male x NPT Female

Pressure Rating at 200ºF

6,000

Orifice Size

0.187 in

Valve Material

Stainless Steel

Valve Type

Male-Female

Dimensions

Additional Dimensions

Data Sheet

3D CAD Model

Product Specifications|Additional Options

Type	Needle Valve
Material	Electropolished 316 Stainless Steel
Stem Seal and Type	All 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and Polytetrafluoroethylene (PTFE) back-up ring below the threads, Polytetrafluoroethylene (PTFE) packing optional
Pressure Rating at 200	6,000
Weight	2.2 lb
Orifice Size	0.187 in
Flow Coefficient Cv	0.64
Connection	3/4" x 1/2" NPT Male x NPT Female
Seat	Hard Seat
Valve Material	Stainless Steel
Warranty	3 yr
Related Items	804-MS, 1/2" National Pipe Thread (NPT), Male, 316 Stainless Steel, Hard Seat 0.159" Bleed Port Valve BP1-S, 1/2" National Pipe Thread (NPT) Stainless Steel Bleed Plug PG1-SS1-EP, 1/2" National Pipe Thread (NPT) Stainless Steel Plug

Additional Options	Soft Seats PEEK (PK1) PCTFE (KF1) Stem Tips Non-rotating (316 stainless) (T1 ) O-Rings EPDM (EM1) FFKM (Perfluoroelastomer 3018 or equivalent) (KZ1) NBR (NB1) Panel Mountings Panel mount (1 nut) (PM1) Panel mount (2 nuts) (PM2) Handles 1-3/8" Phenolic (HL4) 1-3/4" Phenolic (HL5 )
Additional Information	FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE packing optional All stem threads are rolled for strength and ease of operation One-piece bonnet with a metal-to-metal seal to the valve body below the bonnet threads Slotted spring pin to prevent accidental loosening Vinyl dust cap for bonnet and stem (non-packing)
Installed Options and Accessories	Soft Seats PEEK (PK1) PCTFE (KF1) Packing PTFE (P1) Stem Tips Non-rotating (316 Stainless Steel) (T1) O-Rings (Other o-ring materials available on request) EPDM (EM1) FFKM (Perfluoroelastomer) 3018 or equivalent (KZ1) NBR (NB1) Panel Mount 1 nut (PM1) 2 nuts (PM2) Handles 1-3/8" Phenolic Handle (HL4) 1-3/4" Phenolic Handle (HL5) Cleaning For Oxygen Service (Stainless Steel Only)
Assembly Options	NOSHOK offers multiple assembly options to meet your specific system requirements. Consult factory to discuss your customized solution.
Uninstalled Options and Accessories	Plug, Steel (PG1-CS1-ZN1) Plug, Stainless Steel (PG1-SS1-EP) Bleed Plug, Steel, 1/2" NPT (BP1-C) Bleed Plug, Stainless Steel, 1/2" NPT (BP1-S) Bleed Plug, Stainless Steel, 1/4" NPT (BP2-S)
Bleed Valve	Bleed valves provide a convenient means to relieve process pressures trapped between a shut off valve and the instrument.
Note	Plugs and bleed plugs are available and can be ordered separately. Please note that the standard o-ring in all the NOSHOK valves is FKM and the standard handles are "T" handles (HL2). The handle material will always match the material of the valve, unless otherwise specified. For example, the "T" handle (HL2) on the 204-MFC will be steel. When only the standard configuration is needed, no additional designations are necessary. Please consult the factory for special application requests All NOSHOK valve products conform to the MSS SP-99 instrument valves standards, and valves supplied with packing also conform to MSS SP-132 compression packing systems for instrument valves standard. Other o-ring materials available on request.
Prop 65 Warnings	⚠️ WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Handle	2-1/2" "T" handle
Handle Material	Stainless Steel
Stem Tip	Acetal Soft Seat with Stainless Steel

30604-MFS
