About

  • Resist clogging and are self cleaning
  • Five different sized pistons included with each snubber to ensure the correct amount of snubbing for virtually every application

Featured Specifications

Type

Snubber

Connection Type

National Pipe Thread (NPT)

Assets

▼
PDF piston-type-snubbers.pdf
3D CAD Model3D CAD Model
Product Specifications|Prop 65 Warnings

Product Specifications

▲
Type
Snubber
Style
Piston-Type
Piston
A, B, C, D, E
End Size
1/2
End Type
National Pipe Thread (NPT)
Material
316 Stainless Steel
Weight
0.4 lb

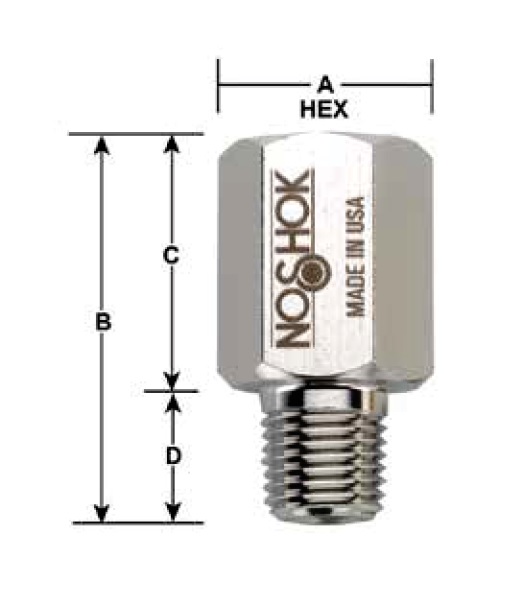

Dimension A
1.125 in
Dimension A
28.6 mm
Dimension B
1.875 in
Dimension B
47.6 mm
Dimension C
1.25 in
Dimension C
31.8 mm
Dimension D
0.625 in
Dimension D
15.9 mm
Connection Type
National Pipe Thread (NPT)
Connection Size
1/2 in
Pressure Rating
15,000 psi
Process Connection Size
2-Jan
Process Connection Type
National Pipe Thread (NPT)
Operating Pressure [Max]
[object Object]
