Small Diameter Submersible Transmitter, Wetted Materials: 316 SS, 0 psig to 15 psig, ±1% of Span Accuracy, 4 mA to 20 mA Output, Polyamide Nose Cone, 70 ft PUR Cable, Cable Clamp, Cable Junction Box (NEMA 4X)

Featured Specifications

Pressure Range (psig)

0 to 15 psig

Accuracy

± 1.0% of span

Output Signal

4 mA to 20 mA, 2-wire

Process Connection

Nose Cone

Electrical Connection

Standard polyurethane (PUR) cable

Assets

▼

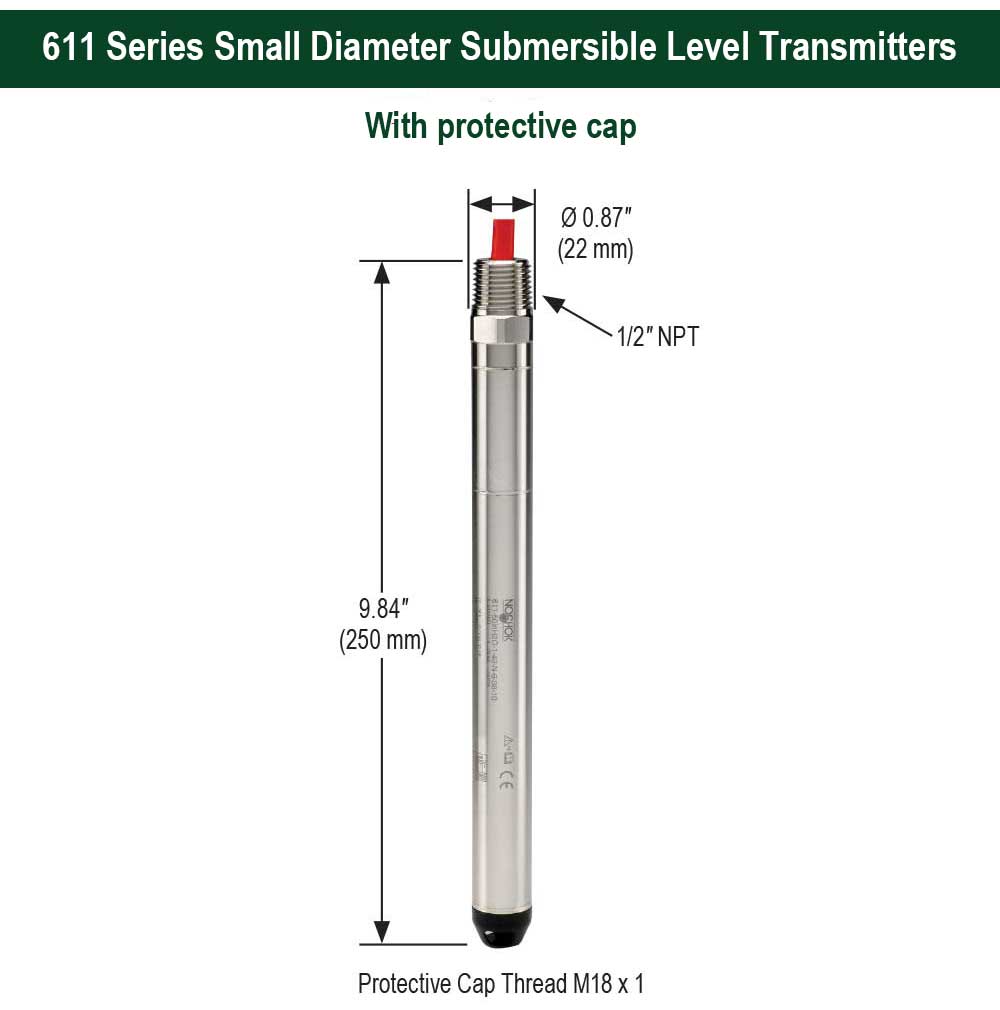

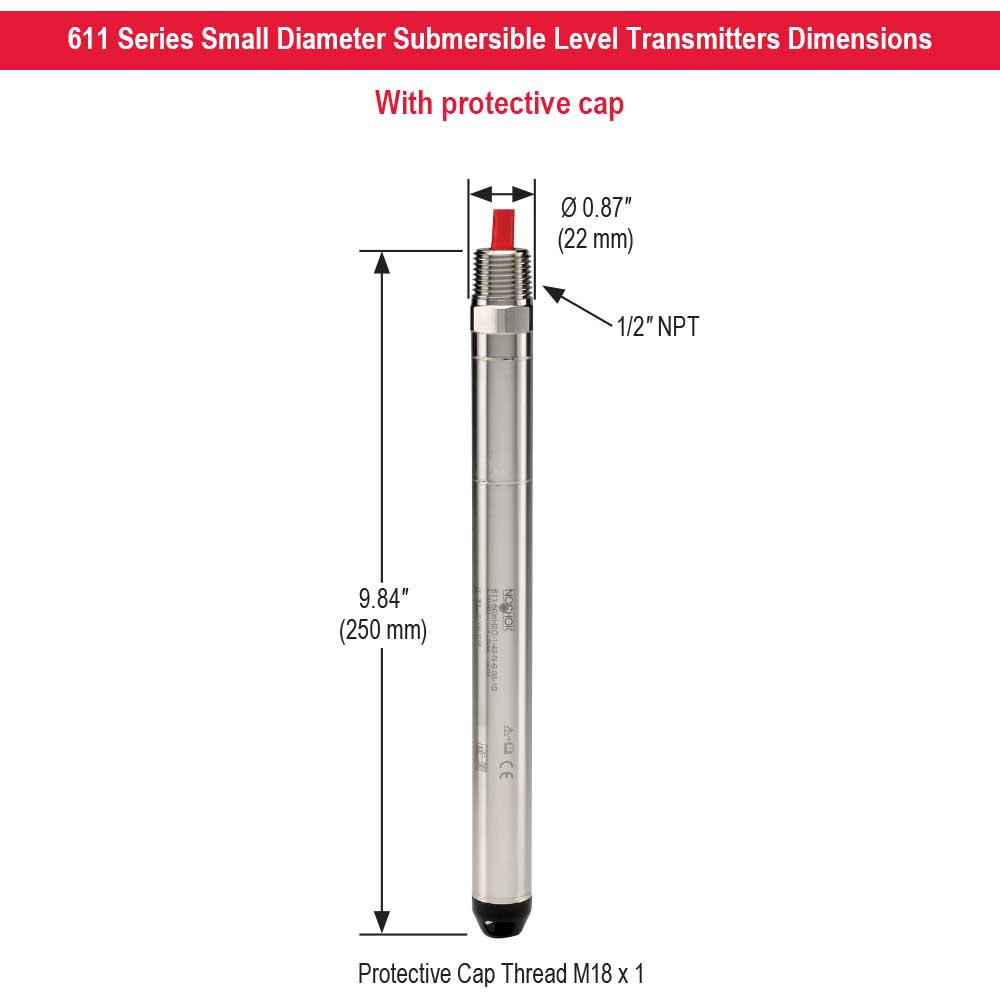

Image Dimensions PDF Data Sheet PDF User Manual
3D CAD Model3D CAD Model
Product Specifications|Temperature Ranges|Additional Information|Options and Accessories|Applications|Limitations Which Apply Are|Prop 65 Warnings

Product Specifications

▲
Type
Submersible Level Transmitter
Series
611
Pressure Range
0 to 15 psig
Accuracy
± 1.0% of span
Note for Accuracy
Includes non-linearity, hysteresis, zero offset and end value deviation per IEC 61298-2

Accuracy after turndown via HART®, ≤ ±1.25% of scaled span (0.75% optional)

Temperature sensor 14 ºF to 176 ºF (-10 ºC to 80 ºC): ≤ ± 3.3 ºF.
Output Signal
4 mA to 20 mA, 2-wire
Process Connection
Nose Cone
Electrical Connection
Standard polyurethane (PUR) cable
Options
Cable Clamp, Cable Junction Box (NEMA 4X)
Style
Level Transmitter
Approximate Weight
10.6 oz
Storage Temperature (Min.)
-40 ºF -40 ºC
Storage Temperature (Max.)
176 ºF 80 ºC
Optional Accuracy
± 0.5% of span
Optional Housing Material
318 LN
Warranty
3 yr
Stability
≤ ± 0.1% of span per year
Switch on Time (Output signals without HART®)
≤ 150 ms
Switch on Time (Output Signals with HART®)
≤ 250 ms
Settling Time (Output Signals without HART®)
≤ 100 ms
Settling Time (Output Signals with HART®)
≤ 250 ms
Durability
> 100,000,000 full scale cycles
Power Requirement
4mA to 20 mA: 8 Vdc to 36 Vdc
4 mA to 20 mA and HART®: 12-36 Vdc
0.1 to 2.5 Vdc: 3.6 - 36 Vd
Load Limitations
4 mA to 20 mA: ≤ (Vpower - 8 V) / 0.022 A
4 mA to 20 mA and HART®: ≤ (Vpower - 9.6 V) / 0.022 A
Proof Pressure
5 Times Range
Measuring Element
Cap: Polyvinylidene Fluoride (PVDF)
Sensor: 316 stainless steel, options Hastelloy C-276
Cable: Polyurethane, optional FEP
Connection Material
316 Stainless Steel
Housing Material
316 Stainless Steel
Environmental Rating
Ingress Protection (IP68)
Electromagnetic Rating
European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326, Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection
Electrical Protection
Reverse polarity protection, short circuit and resistance to overvoltage :DC 40V and increased overvoltage for lightning protection. Normal discharge current ≥ 10 kA, Rise time 8/20 µs
Vibration According to International Electrotechnical Commission (IEC) 60068-2-6
4 g
Cable Length
70 ft

Temperature Ranges

▲
Compensated Temperature Range
32 to 176 ºF 0 to 80 ºC
Note for Compensated Temperature Range
Effect ± 0.01%/ºF for zero and span
Standard Media Temperature Range
14 to 122 ºF -10 to 50 ºC
Optional Media Temperature Range
-40 to 176 ºF -40 to 80 ºC

Additional Information

▲
Additional Information
  • 316 Stainless Steel, PVDF and Polyurethane wetted parts
  • CE compliant to suppress RFI, EMI and ESD
  • Certifications pending:
    • ATEX
    • CSA
    • IECex
  • Ideal for applications including well head measurement, groundwater monitoring, level measurement in open bodies of water, sewage lift and pumping stations, setting ponds and rainwater

Options and Accessories

▲
Options and Accessories

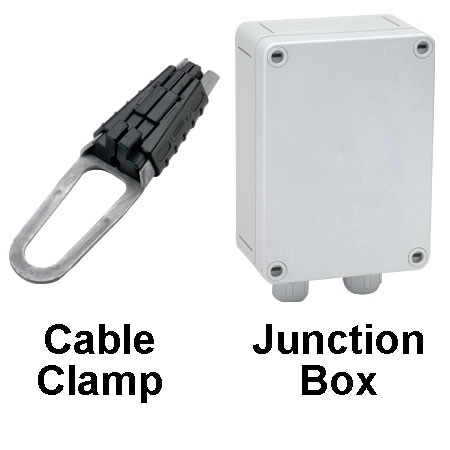

  • Cable Clamp (CBC)
  • Lightning Protection (LP)
  • Cable Junction Box (NEMA 4X) (JB) (Not available with any hazardous location approved models)
  • Increased Media Temperature (-40 ºF to 176 ºF) (HT) (Must use FEP cable if used with hazardous location approved models)

Applications

▲
Application
  • Well head measurement
  • Groundwater monitoring
  • Level measurement in open bodies of water
  • Sewage lift and pumping stations
  • Setting ponds and rainwater

Limitations Which Apply Are

▲
Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.

In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.

Prop 65 Warnings

▲
Prop 65 Warnings
⚠️ WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
