72-024-6-25

Air-Guard Bronze Air Control Station Filter

Air-Guard Bronze Air Control Station 20 SCFM

150 psig

20

Dual Cartridge Coalescing Element

Bronze

99.98 % of 0.1 micron or Greater

17 lb

7.7 kg

0 to 100

Manual Drain

Pneumatic components and instrumentation will be more dependable and require less maintenance when supplied clean air through the KING-GAGE Air Control Station. Installed upstream of tank gauges or Purge Control level transmitters, they provide complete filtration and point-of-use supply pressure regulation.

Replacement Cartridges: Type 750/800 Type 800 (9326-241)
Filter Rating - 0.1 µm

All KING-GAGE, a NOSHOK Company products are guaranteed to be free from defects in material and workmanship for one (1) year from the date of purchase.

Repair Services Warranty: 90 days limited warranty.

KING Filters Air Control Station is recommended for shipboard use to protect air operated equipment and instrumentation. Without question, most shipboard compressed air systems contain solid and liquid contaminants that affect performance and increase wear on equipment. Precision pneumatic instrumentation including KING-GAGE tank level gauging systems require clean, dry and oil-free compressed air for trouble free operation.

Model 74 Air Control Station is based on the KING Air-Guard Bronze Filter with automatic drain combined with a pressure regulator and dial gauge. The high efficiency 20 scfm two stage filter uses a self-draining coalescing element to remove large amounts of solid liquid contaminants from the airline.

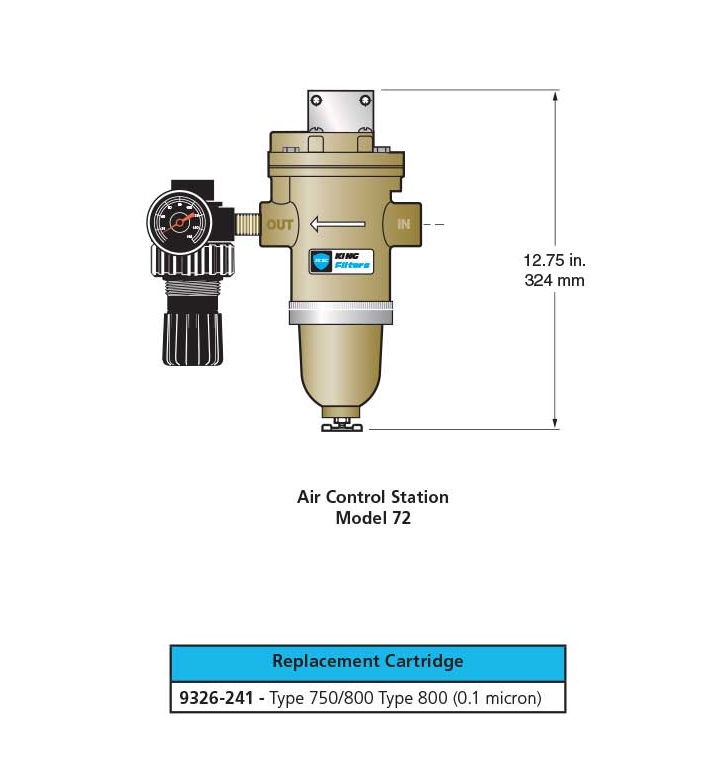

If an automatic drain is not desired, the Model 72 Air Control Station is based on the Air-Guard Bronze Filter with manual drain petcock. This version of the station also includes a filter, pressure regulator and dial gauge.

Ensure clean air with our two-stage combination 750 Scrubber and 800 Polisher cartridge set which removes 99.7% of particulate down to 0.1 micron. The coalescing action in the first stage cartridge provides longer service for both cartridges elements while delivering dry, virtually oil-free compressed air. KING Filter cartridges provide equal efficiency regardless of flow rate and do not diminish during the life of the elements. (Assumes periodic draining of sump or use of automatic sump.)
Construction: KING Air-Guard Bronze Filters are extremely durable due to their materials of construction. The filter housing and sump are bronze, which will easily withstand the rigors of seawater environments. (Regulator supplied with cast zinc body). Inlet and outlet connections are 1/2" NPT and designed to accept standard tube or pipe fittings.
