RTD Transmitter 4-20 mA Upscale Burnout

Featured Specifications

Output

4 to 20 mA, 2-Wire

Options

None

Assets

▼

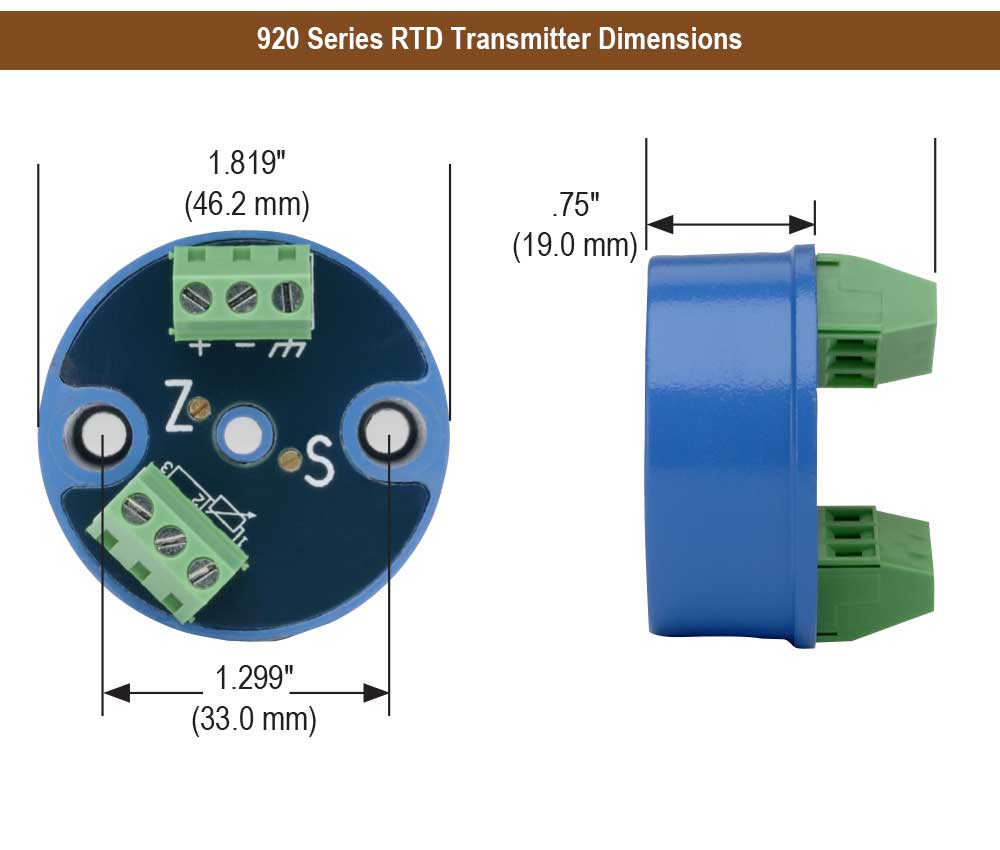

Image Dimensions PDF Data Sheet PDF User Manual
3D CAD Model3D CAD Model
Product Specifications|Limitations Which Apply Are|Additional Information|Options and Accessories|Note|Prop 65 Warnings

Product Specifications

▲
Type
Head-Mounted Transmitter
Series
920
Low Calibrated Temperature Range
0 ºF
High Calibrated Temperature Range
200 ºF
Housing Material
Die-Cast Zinc, Enamel Painted
Power Supply
12 to 32 Vdc, Polarity Protected
Accuracy
0.1% Full Scale (FS) (Includes Effects of Linearity, Hysteresis and Repeatability)
Storage Temperature [Max]
176 ºF 80 ºC
Storage Temperature [Min]
-40 ºF -40 ºC
Output
4 to 20 mA, 2-Wire
Ambient Temperature Range
-40 to 176 ºF -40 to 80 ºC
High Accuracy (±) %
0.1 %
Supply Effect
0.02%/V, 0.001%/V with Computer Programmable Version
Zero Drift
±0.01% FS/ ºC
Span Drift
±0.01% FS/ ºC
Long Term Drift
≤0.5% FS/year
Excitation Current Resistance Temperature Device (RTD)
0.8 mA
Sensor Lead Resistance Temperature Device (RTD) [Max]
500 O
Span/Zero Adjustment
20 Turn Potentiometer, ±10% for Zero and Span
Maximum Loop Resistance
Rmax. = [ ( Vsupply - 9 Vdc ) / 20 mA
Open Circuit Detection Overscale Limit
27 mA
Open Circuit Detection Underscale Limit
2.2 mA
Warm Up
30 s
Options
None
Warranty
3 yr
Housing Diameter
1.82 in
Height
1.15 in

Limitations Which Apply Are

▲
Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.

In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.

Additional Information

▲
Additional Information
  • Factory calibrated for fixed range
  • Metal housing
  • Fits standard heads
  • Optional model is fully field re-programmable with module and PC-based software

Options and Accessories

▲
920 Series Resistance Temperature Device (RTD) Transmitter Options and Accessories
920 PC Programming Kit (920-PKIT)

Note

▲
Note
Calibrated Temperature Range - Please specify low/high

Prop 65 Warnings

▲
Prop 65 Warnings
⚠️ WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
