Compact Radar Level Transmitter, 4 mA to 20 mA (3-wire), 1/2 NPT Male, 6 foot Integral Cable, PVC Jacket
Featured Specifications
Output Signal
4 mA to 20 mA, 3-wire
Process Connection
G1/2 (DIN 3852-2-A)
Electrical Connection
6' Integral cable
Media Temperature Range ºF
-40 to 212 ºF
Accuracy
±0.2 in Per IEC 62828-4
Assets

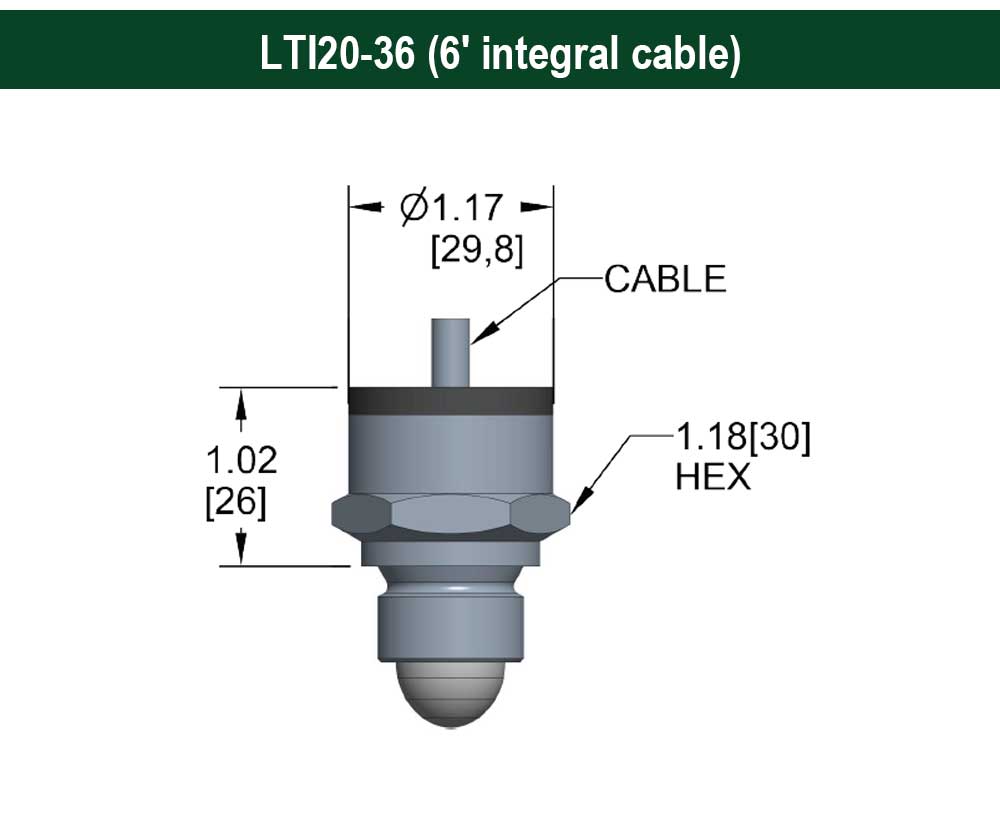

Dimensions
Data Sheet
Additional Dimensions
Product Specifications
▲| Type | Radar Level Transmitter |
| Accuracy | ±0.2 in Per IEC 62828-4 |
| Non-repeatability | ≤ 0.079 in |
| Measuring Distance | 4 in - 300 in [25 ft] (additional distances available, consult factory) |
| Measurement Frequency | FMCW (60 GHz technology); frequency band 57.4 ... 61.4 GHz |
| Beam Angle | ±6° |
| Media Dielectric Constant | ≥ 2 |
| Output Signal | 4 mA to 20 mA, 3-wire |
| Power Requirement | 8 Vdc to 36 Vdc |
| Process Connection | G1/2 (DIN 3852-2-A) |
| Electrical Connection | 6' Integral cable |
| Connection Material | 316L Stainless Steel |
| Measuring Element (Wetted Parts) | PEEK (Lens), FKM (O-Ring) |
| Housing Material | 316L Stainless Steel |
| Environmental Rating | Ingress Protection (IP67) |
| Media Temperature Range | -40 to 212 ºF
-40 to 100 ºC |
| Ambient Temperature Range | -40 to 212 ºF
-40 to 100 ºC |
| Storage Temperature Max | 158 ºF
70 ºC |
| Storage Temperature Min | -40 ºF
-40 ºC |
| Max Operating Pressure | 362 psi (25 bar) |
| Approximate Weight (oz) | 2.8 oz |
| Warranty (years) | 3 yr |
| Applications |
|
Applications
▲| Application |
|
Limitations Which Apply Are
▲| Limitations Which Apply Are | These units must be operated within the cataloged environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation. In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice. |
