About
- Gauge, compound, absolute and vacuum ranges from 1 psig to 10,000 psig
- Current and voltage outputs available
- 316 and 13-8PH Stainless Steel wetted parts
- RoHS compliant
- CE compliant to suppress RFI, EMI and ESD
Featured Specifications
Pressure Range
0 to 150 psi gauge

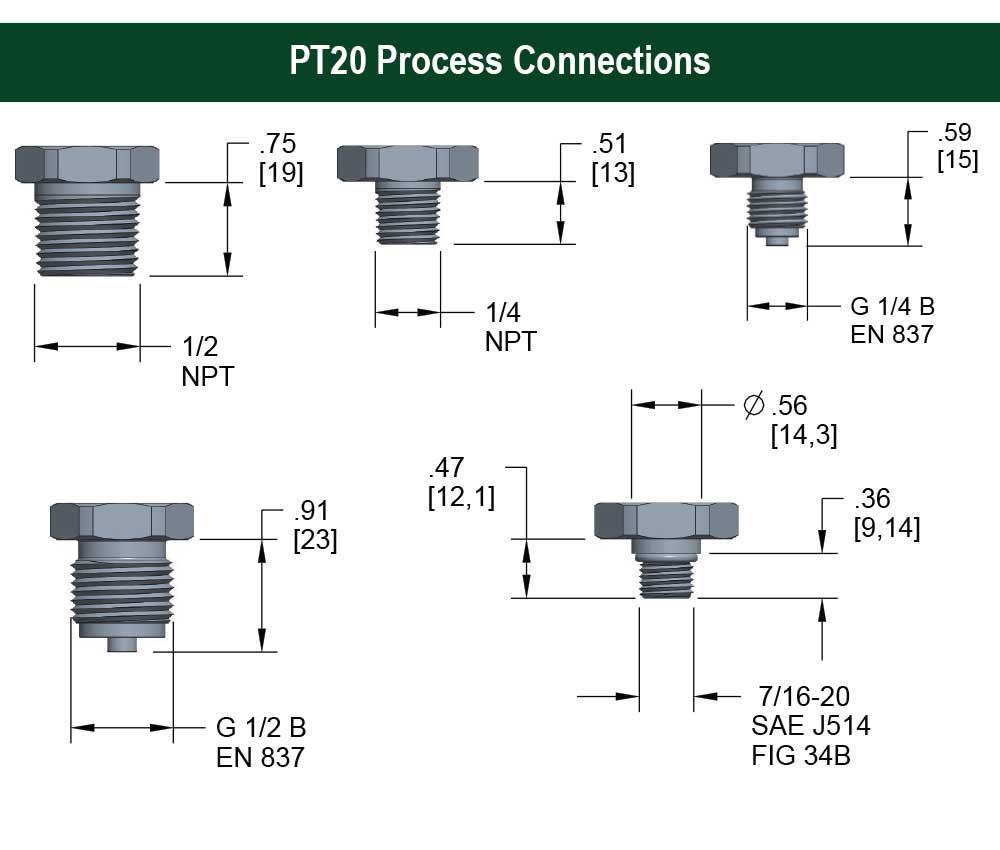

Process Connection
1/4" NPT Male

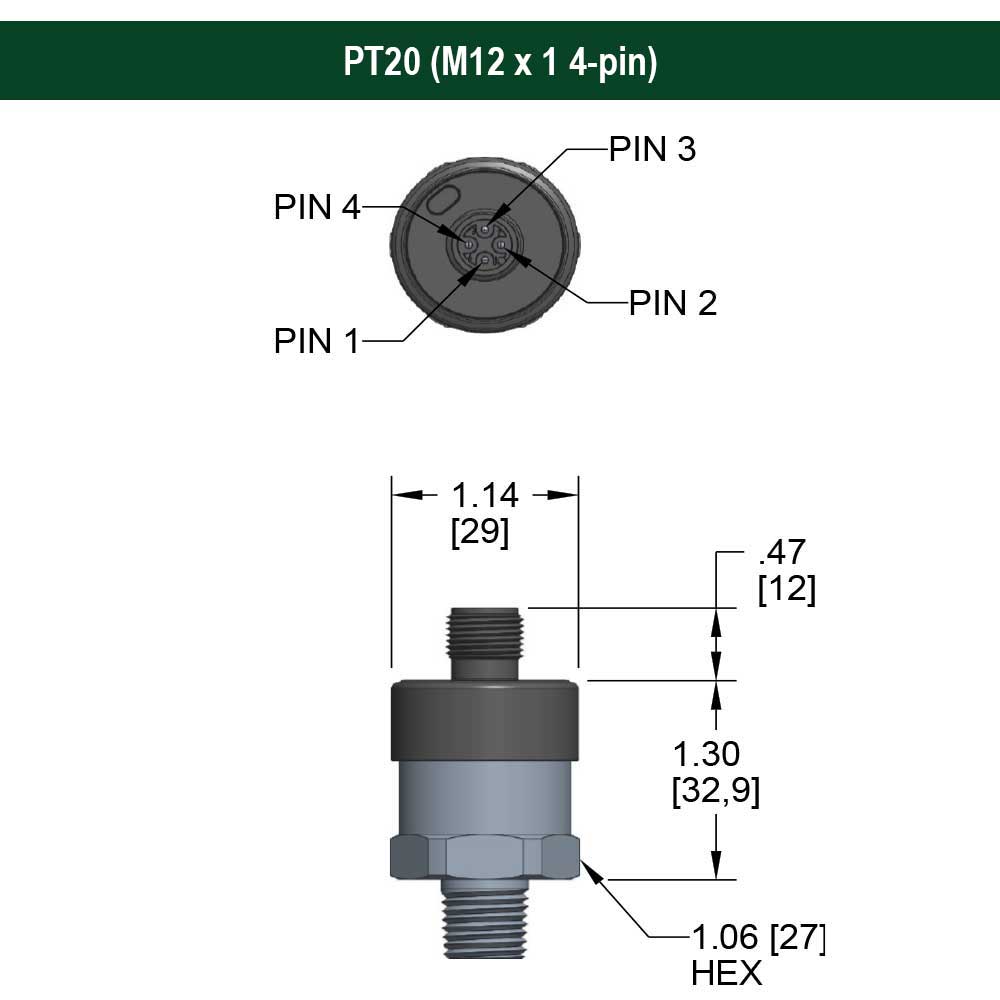

Electrical Connection
M12 x 1 4-pin
Assets
Marketing Flyers
Product Specifications
▲| Pressure Range | 0 to 150 psi gauge |
| Accuracy | ±0.5% of span, non-linearity best fit straight line per IEC 61298-2 at reference conditions |
| Output Signal | 4 mA to 20 mA, 2-wire |
| Process Connection | 1/4" NPT Male |
| Electrical Connection | M12 x 1 4-pin |
| Power Requirement | 8 Vdc to 30 Vdc |
| Environmental Rating | IP67 |
| Materials of Construction (Wetted Parts) | 316 Stainless Steel with 316 Stainless Steel housing |
| Media Temperature Range ºC | 0 to 80 ºC |
| Media Temperature Range ºF | 32 to 176 ºF |
| Applications |
|
Applications
▲| Application |
|
Prop 65 Warnings
▲| Prop 65 Warnings | ⚠️ WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
