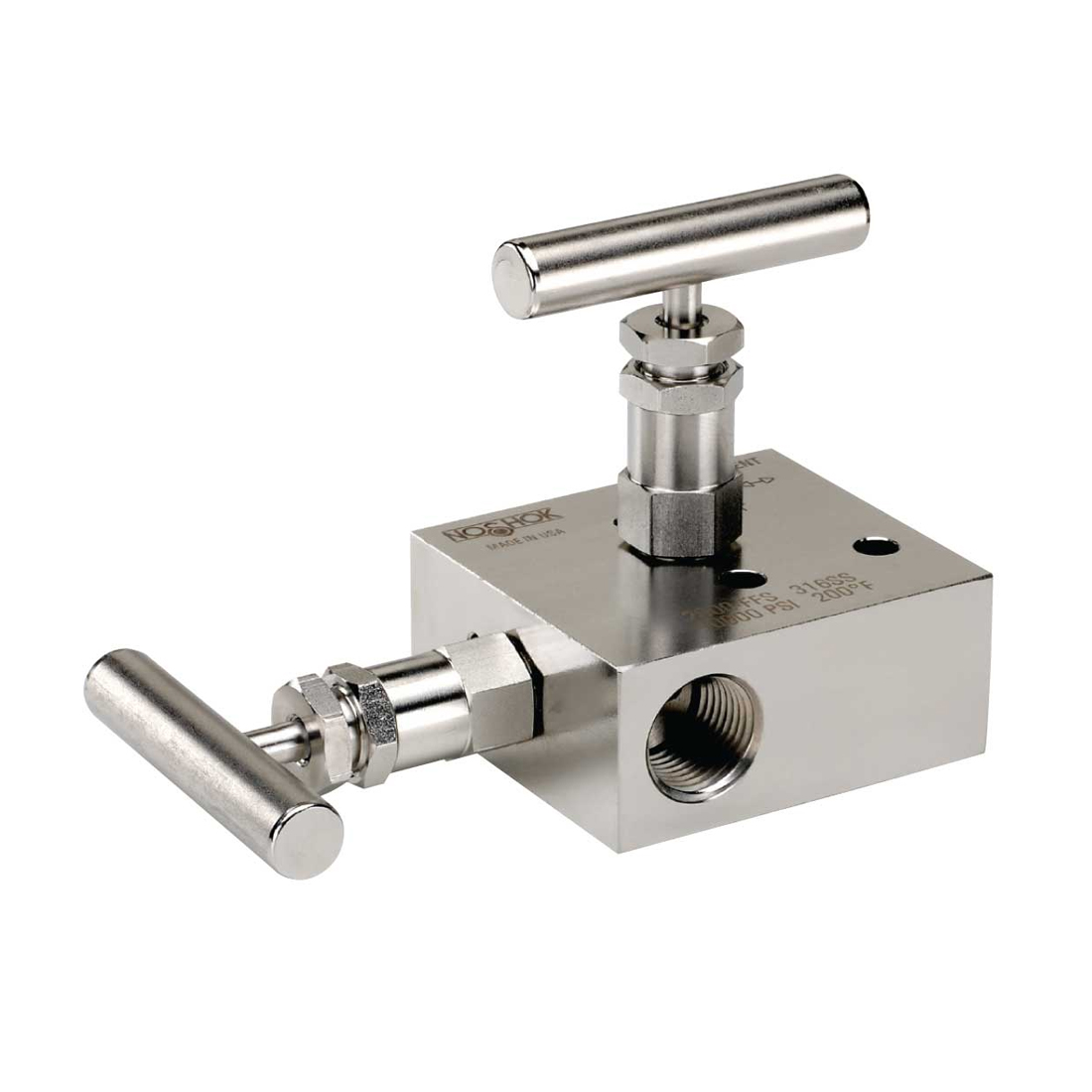

2000/2100 Series Static Pressure Block and Bleed 2 Manifold Valves with Hard and Soft Seat
Series Overview
- Combines isolating and venting in a single valve, eliminating the need for tubing and fittings
- Block valve isolates the downstream process fluids and the bleed valve exhausts upstream fluids enabling static pressure transmitters, switches or gauges to be removed without disturbing the permanent piping installation
- Block valve is located on the left side and the bleed valve is located on top in a 90º orientation, venting is to the right
Documents
Data Sheet | Part Number | Process Connection | Valve Type | Seat | Material | Pressure Rating at 200ºF | Flow Coefficient Cv | Valve Material |
|---|---|---|---|---|---|---|---|
| 2100-MFS | 1/2" NPT Standard or Flange | Flange-Female | Soft Seat | Zinc-nickel plated steel, electropolished 316 Stainless Steel | 6,000 | 0.76 | Stainless Steel |
| 2000-MFC | 1/2" NPT Standard or Flange | Flange-Female | Hard Seat | Zinc-nickel plated steel, electropolished 316 Stainless Steel | 10,000 | 0.44 | Steel |
| 2100-FFC | 1/2" NPT Standard or Flange | Female-Female | Soft Seat | Zinc-nickel plated steel, electropolished 316 Stainless Steel | 6,000 | 0.76 | Steel |
| 2000-FFC | 1/2" NPT Standard or Flange | Female-Female | Hard Seat | Zinc-nickel plated steel, electropolished 316 Stainless Steel | 10,000 | 0.44 | Steel |
| 2100-FFS | 1/2" NPT Standard or Flange | Female-Female | Soft Seat | Zinc-nickel plated steel, electropolished 316 Stainless Steel | 6,000 | 0.76 | Stainless Steel |
| 2000-FFS-P2-T6 | 1/2" NPT Standard or Flange | Female-Female | Hard Seat | Zinc-nickel plated steel, electropolished 316 Stainless Steel | 6000 | 0.44 | Stainless Steel |
| 2000-MFS | 1/2" NPT Standard or Flange | Flange-Female | Hard Seat | Zinc-nickel plated steel, electropolished 316 Stainless Steel | 10,000 | 0.44 | Stainless Steel |
