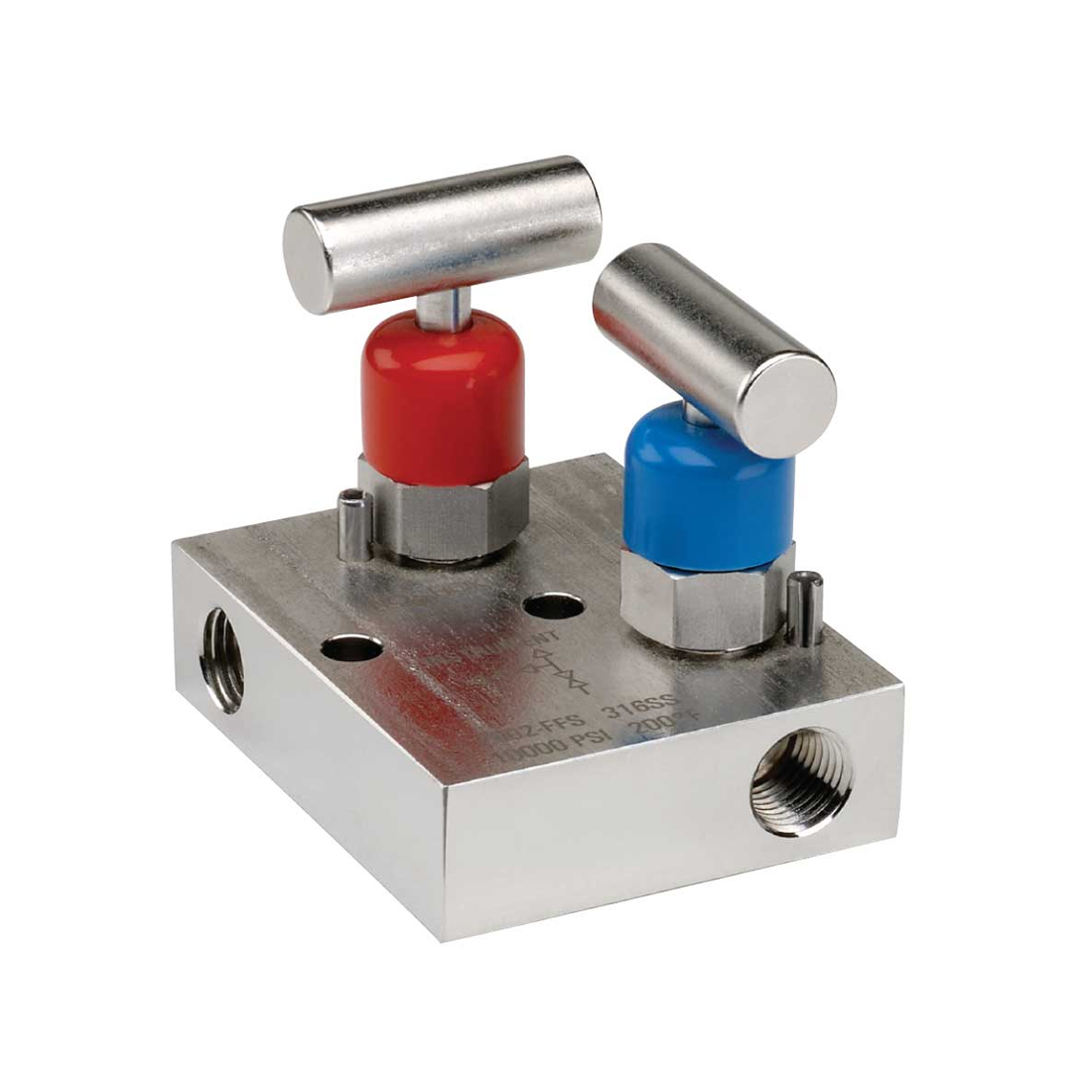

2602/2702 Series 0.141 in. Orifice Mini Block and Bleed 2 Manifold Valves with Hard Seat and Soft Tip
Series Overview
- Combines isolating and venting in a single valve, eliminating the need for tubing and fittings
- Block valve isolates the downstream process fluids and the bleed valve exhausts upstream fluids enabling static pressure transmitters, switches or gauges to be removed without disturbing the permanent piping installation
- Valves are located on the top to fit into compact spaces and two holes are provided for mounting, venting is to the left
Documents
Data Sheet | Part Number | Process Connection | Valve Type | Seat | Material | Pressure Rating at 200ºF | Flow Coefficient Cv | Valve Material |
|---|---|---|---|---|---|---|---|
| 2602-FFC | 1/4" NPT | Female-Female | Hard Seat | Zinc-nickel plated steel, electropolished 316 Stainless Steel | 10,000 | 0.38 | Steel |
| 2702-FFC | 1/4" NPT | Female-Female | Soft Tip | Zinc-nickel plated steel, electropolished 316 Stainless Steel | 6,000 | 0.38 | Steel |
| 2702-FFS | 1/4" NPT | Female-Female | Soft Tip | Zinc-nickel plated steel, electropolished 316 Stainless Steel | 6,000 | 0.38 | Stainless Steel |
