628 Series Intrinsically Safe Hammer Union Pressure Transmitters

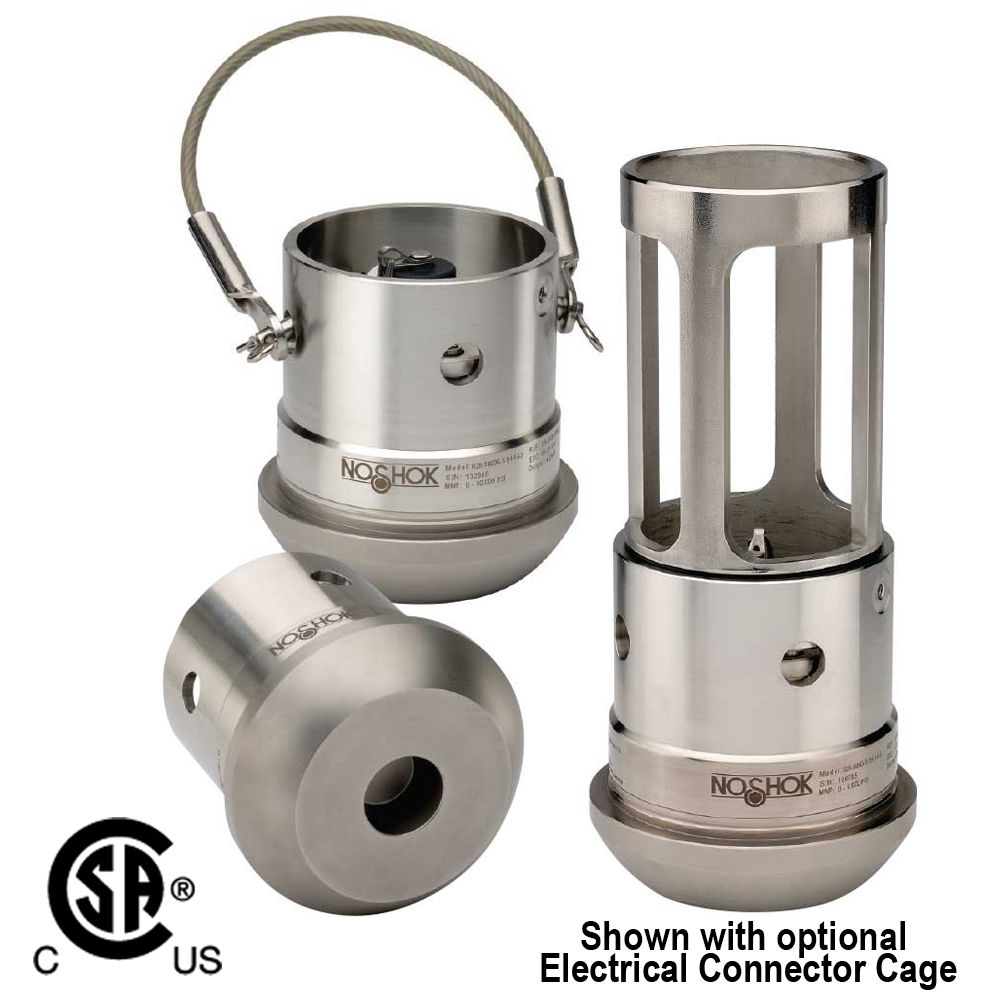

Collection image

Series Overview

  • Ranges from 0 psig to 5,000 psig through 0 psig to 20,000 psig
  • Current output
  • Inconel X-750 wetted parts

Documents

▼

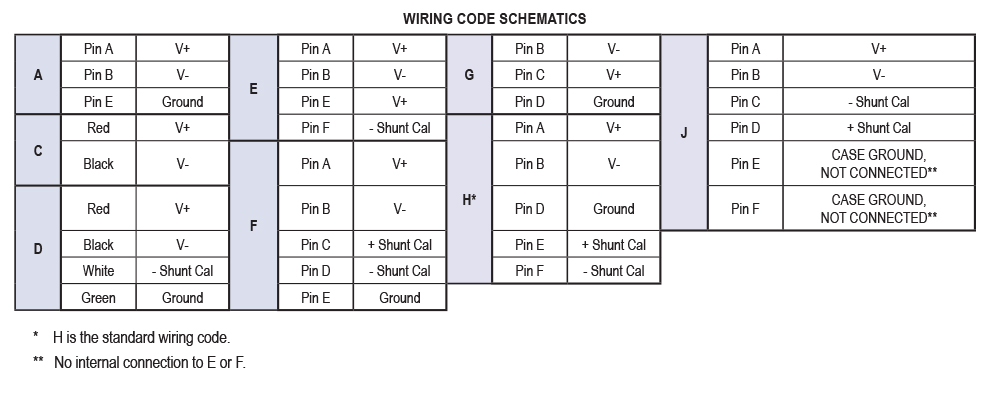

PDF Marketing Flyers PDF Data Sheet PDF User Manual Wiring Diagram
Part NumberPressure RangeAccuracyOutput SignalElectrical Connection
628-15000-1-1E-14-3 0 to 15,000 psig 0.25% 4 mA to 20 mA, 2-wire 6-Pin Bayonet (MIL-C-26482)
628-15000-1-1H-14-3 0 to 15,000 psig 0.25% 4 mA to 20 mA, 2-wire 6-Pin Bayonet (MIL-C-26482)
628-20000-1-1H-14-3 0 to 20,000 psig 0.25% 4 mA to 20 mA, 2-wire 6-Pin Bayonet (MIL-C-26482)
628-6000-1-1H-14-3 0 to 6,000 psig 0.25% 4 mA to 20 mA, 2-wire 6-Pin Bayonet (MIL-C-26482)
628-10000-1-1H-14-3-CH 0 to 10,000 psig 0.25% 4 mA to 20 mA, 2-wire 6-Pin Bayonet (MIL-C-26482)
628-10000-1-1J-14-3 0 to 10,000 psig 0.25% 4 mA to 20 mA, 2-wire 6-Pin Bayonet (MIL-C-26482)
628-10000-1-1H-14-3 0 to 10,000 psig 0.25% 4 mA to 20 mA, 2-wire 6-Pin Bayonet (MIL-C-26482)
