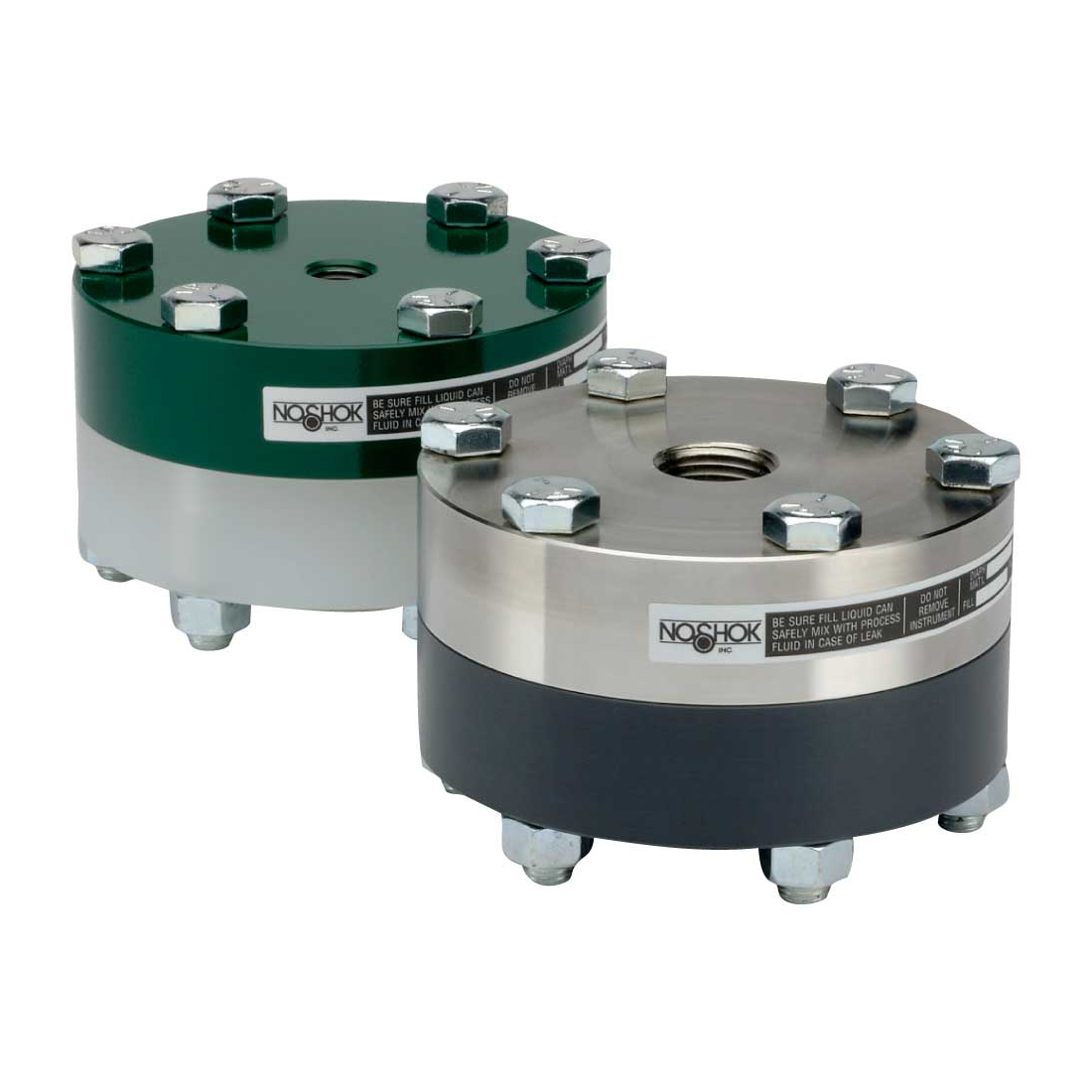

Type 10L Reduced Pressure, Non-Metallic Lower, Bolted, Replaceable Diaphragm Seals
Series Overview
- Intended for corrosive or viscous pressure media
- Designed for applications where typical metallic lower housings cannot withstand process media
- Can be used for remote mounting of pressure instrument(s) with capillary, see options & accessories below
- Utilizes a replaceable diaphragm clamped between the flanged housings with an o-ring seal to create a leak-free union
Documents
Data Sheet | Part Number | Instrument Connection Size | Upper Housing Material | O-Rings Material | Process Connection |
|---|---|---|---|---|
| 10L-04S-T-T-04KN | 1/2 in | 316 Stainless Steel | Polytetrafluoroethylene (PTFE) | 1/2" National Pipe Thread (NPT) |
| 10L-02S-T-T-10PV | 1/4 in | 316 Stainless Steel | Polytetrafluoroethylene (PTFE) | 1/4" National Pipe Thread (NPT) |
