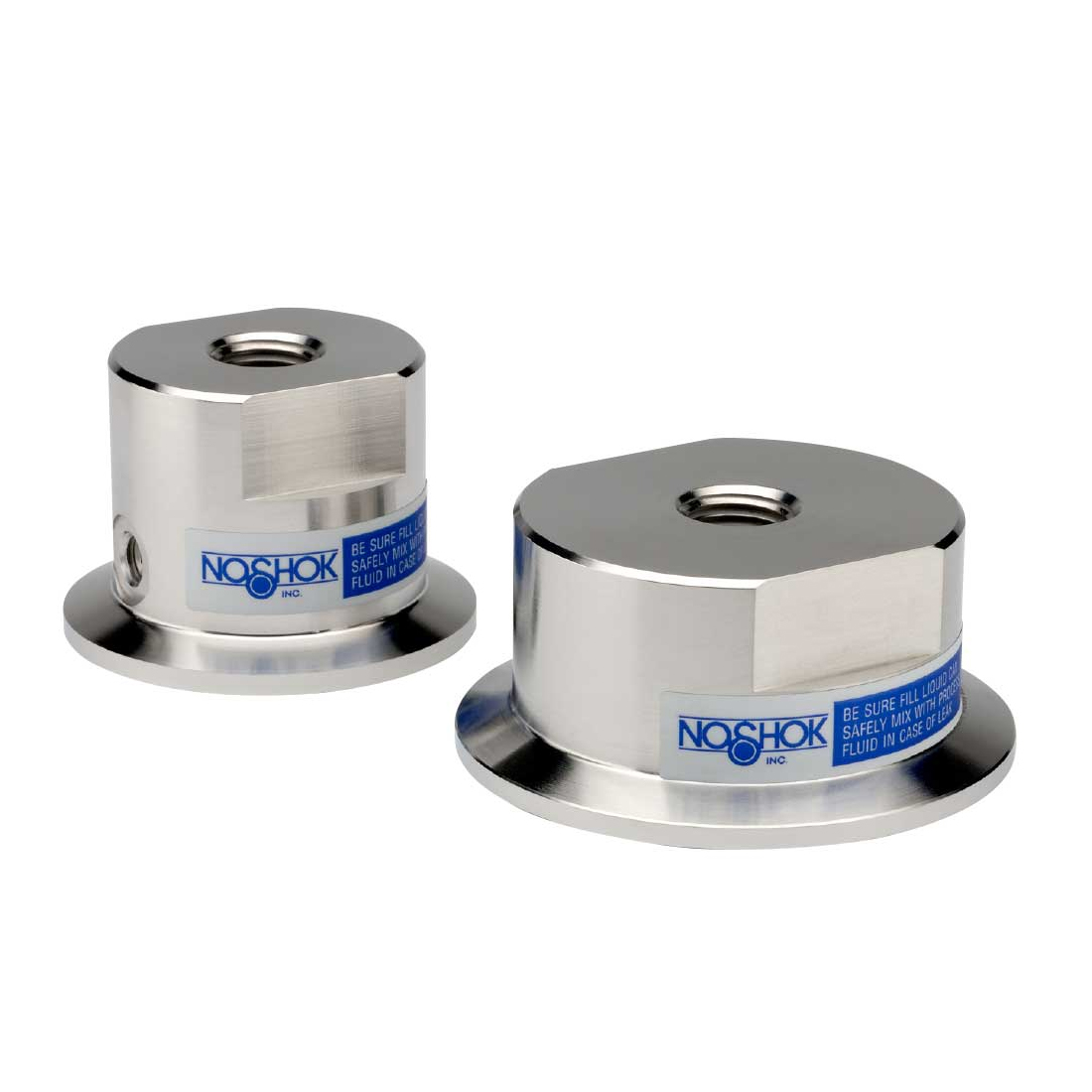

Type 12 Sanitary, Clamped-Style, American Society of Mechanical Engineers - Bioprocessing Equipment (ASME-BPE), Non-Replaceable Diaphragm Seals
Series Overview
- Features a flush mount diaphragm and all welded construction, ideal for food & beverage, pharmaceutical and sanitary markets
- Can be used for remote mounting of pressure instrument(s) with capillary, see options & accessories below
- Wetted parts and all welded housing are constructed of 316 Stainless Steel for greater strength and durability
- Accommodates process connection pipes from 1-1/2" through 3" sizes
- Clamped connection allows ease of installation and removal of seal for maintenance and cleaning
Documents
Data Sheet | Part Number | Instrument Connection Size | Sanitary Pipe Sizes | Diaphragm Size |
|---|---|---|---|
| 12-02S-S-12 | 1/4 in | 1-1/2 in | 1.4 in |
| 12-02S-S-16 | 1/4 in | 2 in | 1.9 in |
| 12-04S-S-12 | 1/2 in | 1-1/2 in | 1.4 in |
| 12-04S-S-16 | 1/2 in | 2 in | 1.9 in |
