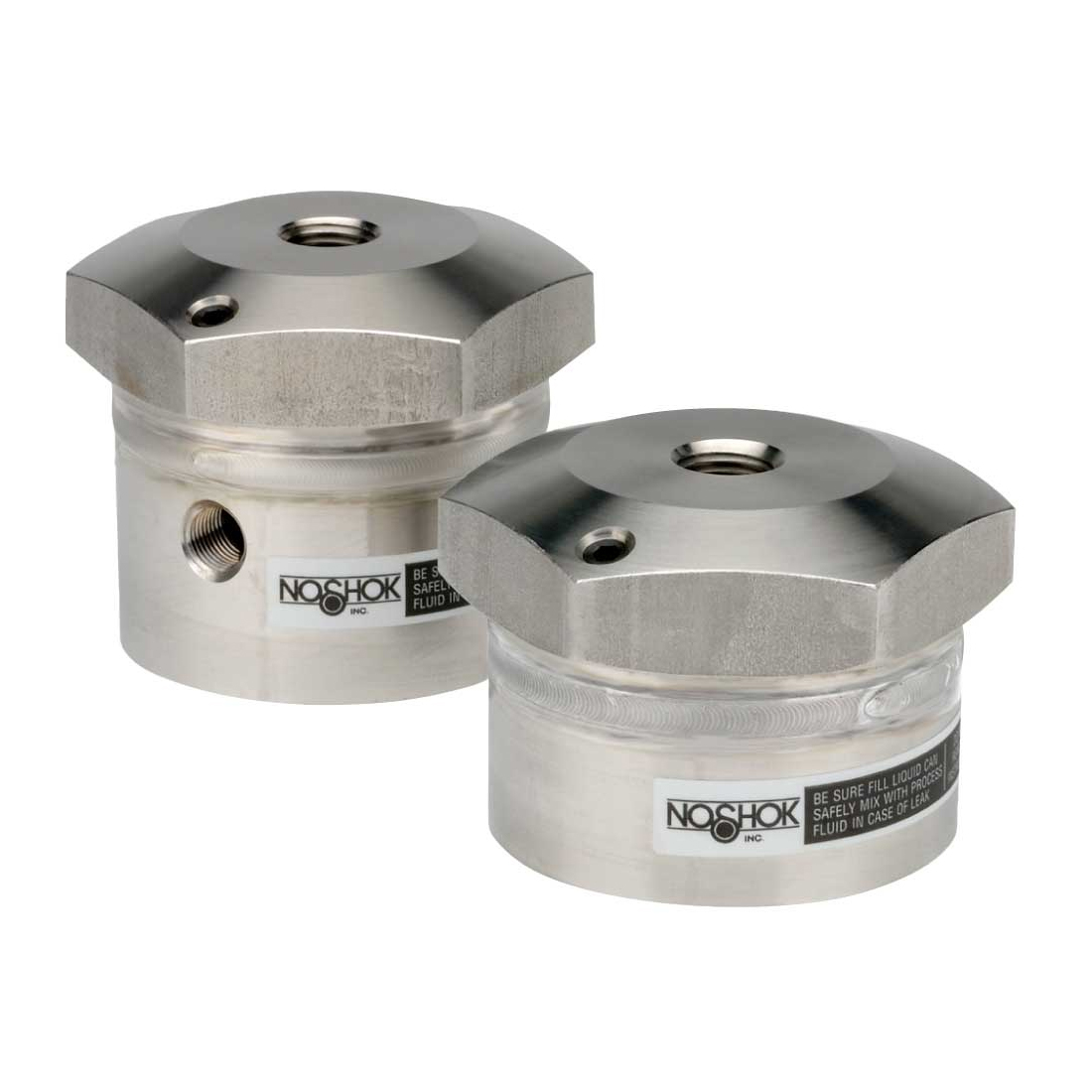

Type 29 High Volumetric Displacement, Non-Replaceable Diaphragm Seals
Series Overview
- An off-line seal with a threaded connection and all welded, all metallic housing design that does not utilize an o-ring or gasket
- Can be used for remote mounting of pressure instrument(s) with capillary, see options & accessories below
- Designed with a larger diameter diaphragm for higher displacement capability
- A variety of upper and lower housing and diaphragm materials are available to suit most applications
- A flushing port is available to clean wetted areas and prevent process media build up
Documents
Data Sheet | Instrument Connection Size | Diaphragm Material | Process Connection | Optional Flushing Connection |
|---|---|---|---|
| 1/2 in | 316 Stainless Steel | 1/2" National Pipe Thread (NPT) | - |
| 1/2 in | 316 Stainless Steel | 1/2" National Pipe Thread (NPT) | National Pipe Thread (NPT) |
| 1/4 in | 316 Stainless Steel | 1/4" National Pipe Thread (NPT) | - |
| 1/4 in | 316 Stainless Steel | 1/4" National Pipe Thread (NPT) | National Pipe Thread (NPT) |
| 1/4 in | 316 Stainless Steel | 1/4" National Pipe Thread (NPT) | - |
| 1/4 in | 316 Stainless Steel | 1/4" National Pipe Thread (NPT) | National Pipe Thread (NPT) |
| 1/2 in | 316 Stainless Steel | 1/2" National Pipe Thread (NPT) | - |
| 1/2 in | 316 Stainless Steel | 1/2" National Pipe Thread (NPT) | - |
| 1/2 in | 316 Stainless Steel | 1/2" National Pipe Thread (NPT) | National Pipe Thread (NPT) |
| 1/4 in | 316 Stainless Steel | 1/4" National Pipe Thread (NPT) | - |
| 1/4 in | 316 Stainless Steel | 1/4" National Pipe Thread (NPT) | - |
