Type 5 All Non-Metallic, Non-Replaceable Diaphragm Seals

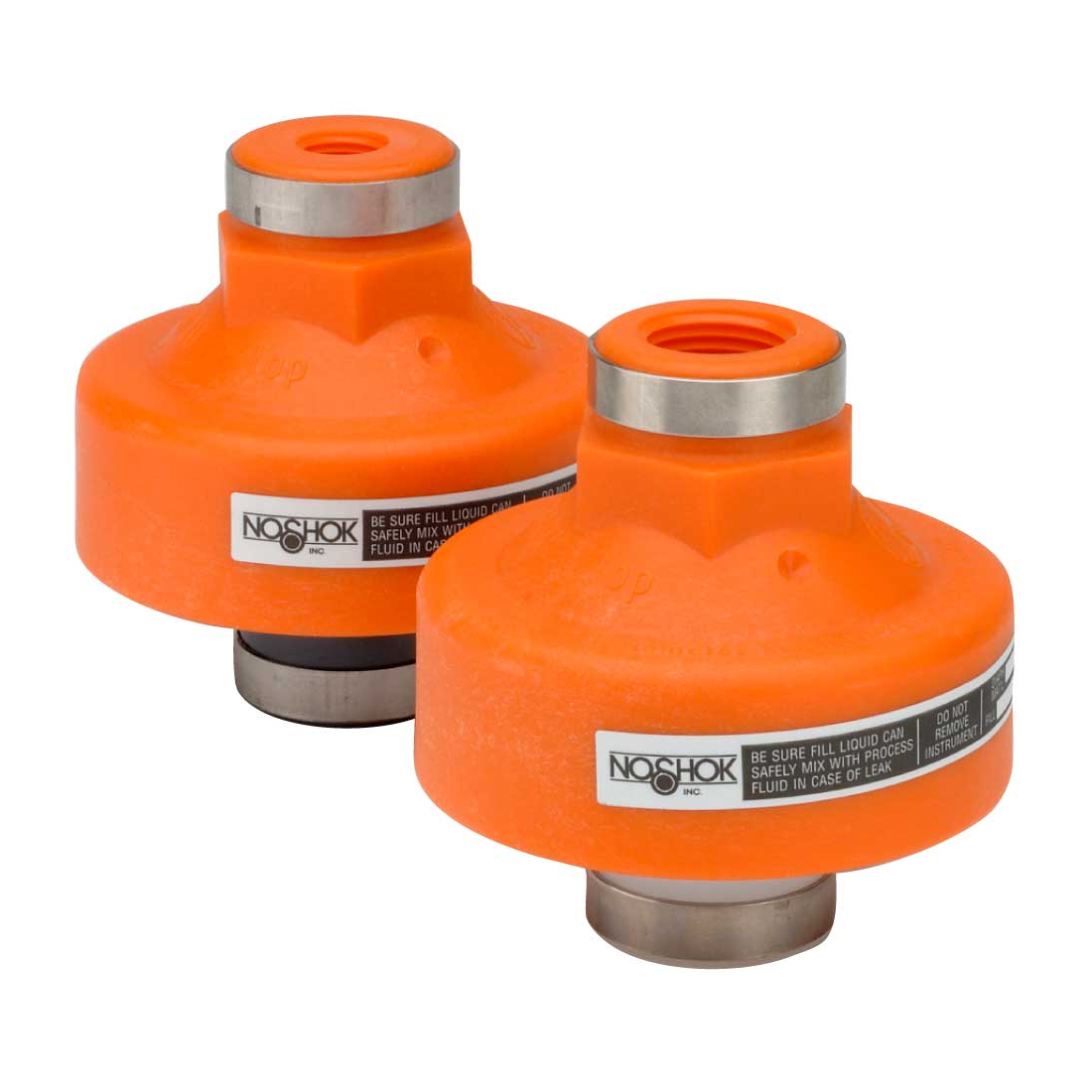

Collection image

Series Overview

  • For wastewater and chemical feed applications, as well as most applications with a corrosive media
  • Constructed of corrosion-resistant PP glass fiber reinforced upper housing and PP, PVC or PVDF lower housing
  • Protects pressure or vacuum instruments used on ultra-pure or highly corrosive fluid lines such as demineralized water, sulfuric acid, hydrochloric acid, and caustics
  • 100% non-metallic wetted parts assures maximum chemical and temperature compatibility

Documents

▼
PDF Data Sheet
Part NumberInstrument Connection SizeDiaphragm MaterialProcess Connection SizeLower Housing Material
5-04PP-E-04KN 1/2 in Ethylene Propylene Diene Monomer (EPDM)-Polytetrafluoroethylene (PTFE) Coated on Process Side 1/2 in Polyvinylidene Fluoride (PVDF)
5-02PP-E-02KN 1/4 in Ethylene Propylene Diene Monomer (EPDM)-Polytetrafluoroethylene (PTFE) Coated on Process Side 1/4 in Polyvinylidene Fluoride (PVDF)
5-02PP-E-02PP 1/4 in Ethylene Propylene Diene Monomer (EPDM)-Polytetrafluoroethylene (PTFE) Coated on Process Side 1/4 in Polypropylene (PP)
5-02PP-E-02PV 1/4 in Ethylene Propylene Diene Monomer (EPDM)-Polytetrafluoroethylene (PTFE) Coated on Process Side 1/4 in Polyvinyl Chloride (PVC)
5-02PP-E-04KN 1/4 in Ethylene Propylene Diene Monomer (EPDM)-Polytetrafluoroethylene (PTFE) Coated on Process Side 1/2 in Polyvinylidene Fluoride (PVDF)
5-02PP-E-04PP 1/4 in Ethylene Propylene Diene Monomer (EPDM)-Polytetrafluoroethylene (PTFE) Coated on Process Side 1/2 in Polypropylene (PP)
5-02PP-E-04PV 1/4 in Ethylene Propylene Diene Monomer (EPDM)-Polytetrafluoroethylene (PTFE) Coated on Process Side 1/2 in Polyvinyl Chloride (PVC)
5-04PP-E-04PP 1/2 in Ethylene Propylene Diene Monomer (EPDM)-Polytetrafluoroethylene (PTFE) Coated on Process Side 1/2 in Polypropylene (PP)
5-04PP-E-04PV 1/2 in Ethylene Propylene Diene Monomer (EPDM)-Polytetrafluoroethylene (PTFE) Coated on Process Side 1/2 in Polyvinyl Chloride (PVC)
