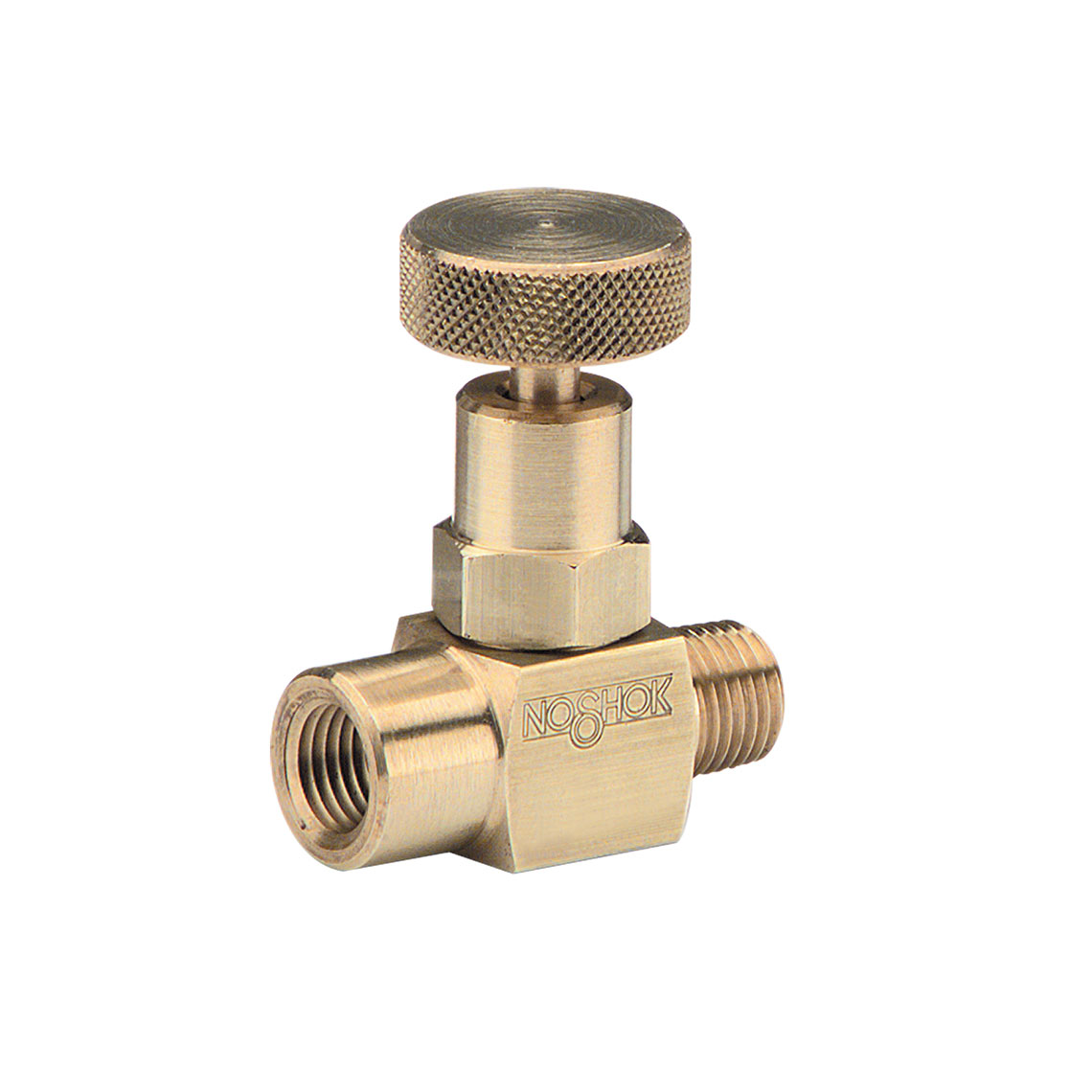

Mini Valve, Hard Seat, 1/4 NPT Male - 1/4 NPT Female, Brass, 0.172" Orifice

Featured Specifications

Connection

1/4" NPT

Material

360 Brass

Pressure Rating at 200ºF

6,000

Valve Material

Brass

Valve Type

Male-Female

Assets

▼

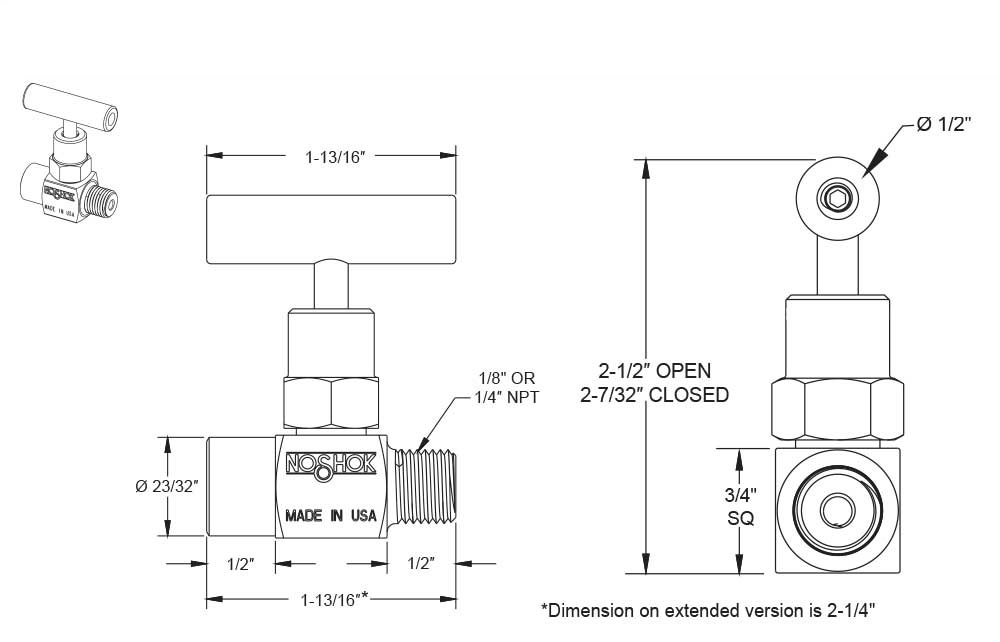

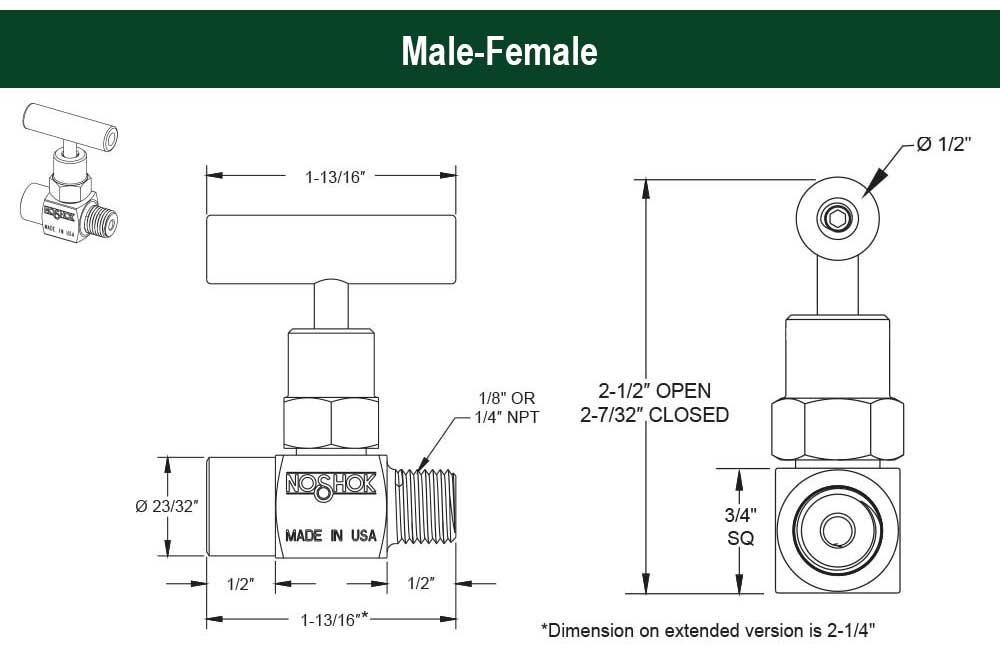

Image Dimensions Image Additional Dimensions PDF Data Sheet
3D CAD Model3D CAD Model
Product Specifications|Limitations Which Apply Are

Product Specifications

▲
Type
Needle Valve
Connection
1/4" NPT
Valve Type
Male-Female
Valve Material
Brass
Materials
360 Brass
Stem Seal and Type
All 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and Polytetrafluoroethylene (PTFE) back-up ring below the threads, Polytetrafluoroethylene (PTFE) or Graphite packing optional
Pressure Rating at 200ºF
6,000
Weight
0.5 lb
Orifice Size
0.172 in
Flow Coefficient Cv
0.42
Seat
Hard Seat
Warranty
3 yr

Limitations Which Apply Are

▲
Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.

In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
Additional Information

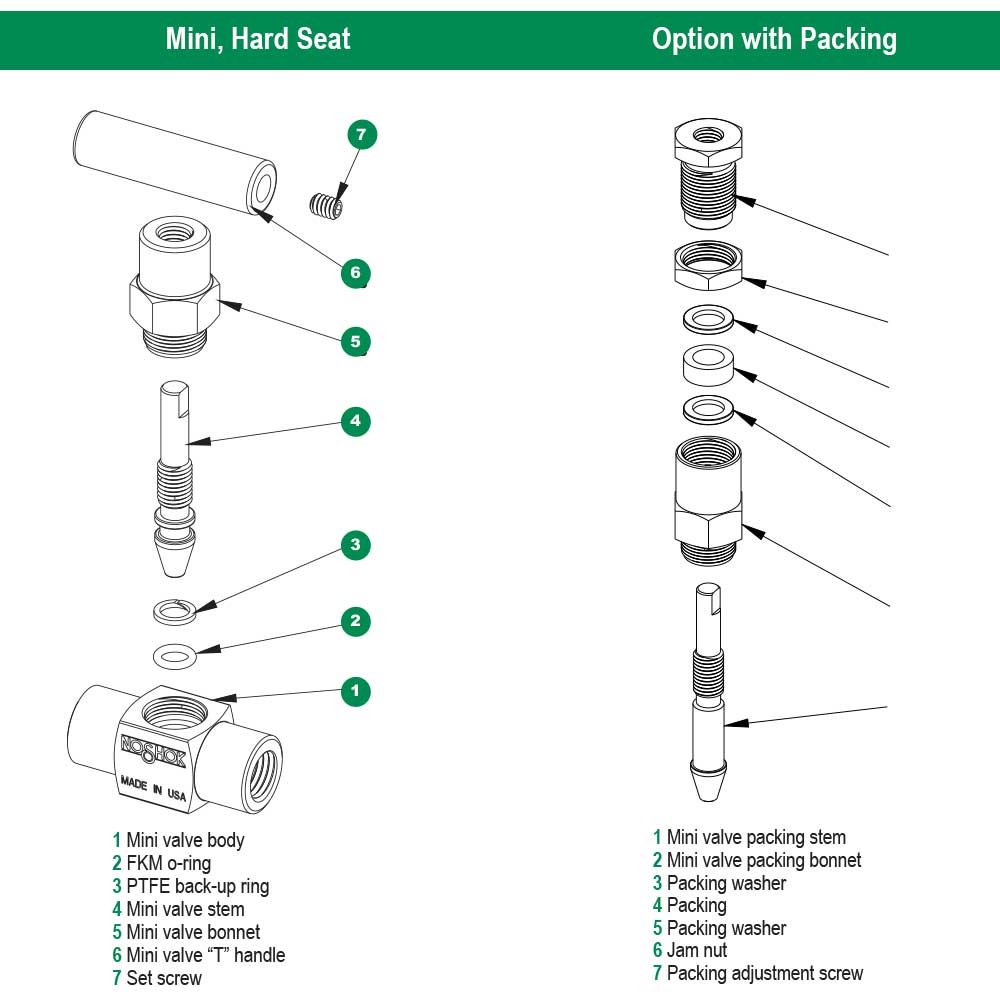

  • All stem threads are rolled for strength and ease of operation
  • Patented body-to-bonnet, metal-to-metal seal is designed to significantly increase the pressure range of the valve (U.S. Patent 7,758,014)

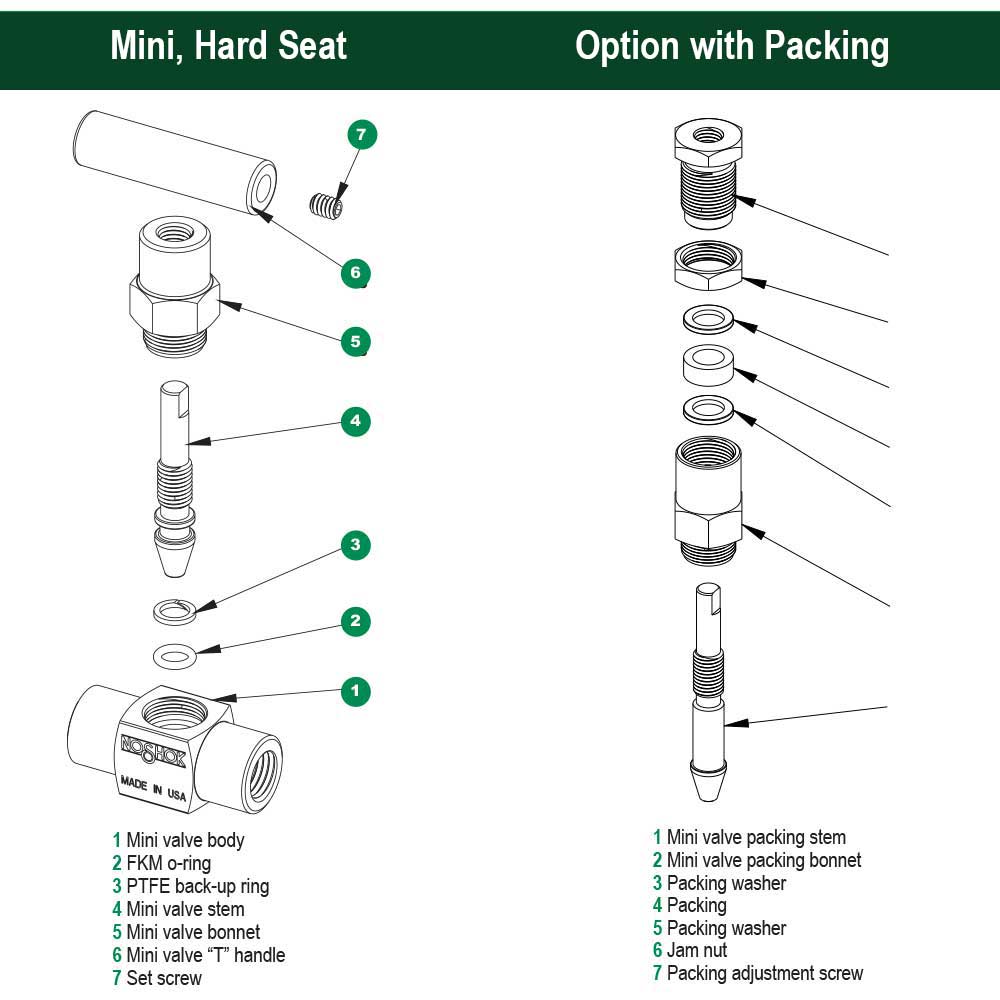

Installed Options and Accessories
  • Packing (If a packing option is chosen, maximum pressure rating is 6,000 psi. Refer to the Pressure vs. Temperature: Packing Style with Compatible Fluid chart Options Reference Chart)
    • PTFE (P1)
    • Graphite (P2)
  • Stem Tips
    • Non-rotating (316 Stainless Steel) (T1)
    • Ball, 440C Stainless Steel (T5)
    • Ball, carbide (T6)
    • Ball, ceramic (T7)
    • Ball, Monel (T8)
    • Non-rotating regulating, 316 Stainless Steel (T9)
  • O-Rings (Other o-ring materials available on request)
    • EPDM (EM1)
    • FFKM (Perfluoroelastomer) 3018 or equivalent (KZ1)
    • NBR (NB1)
  • Panel Mount
    • 1 nut (PM1)
    • 2 nuts (PM2)
  • Handles
    • 2-1/2" T-Handle (HL2)
    • 1" Round Knurled Handle (HL3)
    • 1-3/8" Phenolic Handle (HL4)
    • 1-3/4" Phenolic Handle (HL5)
  • Cleaning For Oxygen Service (Stainless Steel & Brass Only)
Assembly Options
NOSHOK offers multiple assembly options to meet your specific system requirements. Consult factory to discuss your customized solution.
Note
Please consult the factory for special application requests.

All NOSHOK valve products conform to the MSS SP-99 instrument valves standards, and valves supplied with packing also conform to MSS SP-132 compression packing systems for instrument valves standard.
Prop 65 Warnings
⚠️ WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Handle
Round Knurled
Handle Material
Brass
Stem Tip
Stainless Steel
