20 Series Sanitary Transmitter, Anderson Negele Type SL Long - 6", Range Adjustable from 0 – 47”H2O to 0 – 470”H2O, 0.1% of adjusted span, 4-20 mA/2-wire + HART Protocol, 1/2 NPT Female, Transparent Cover

Featured Specifications

Adjustable Pressure Range (inH₂O)

47 to 470 inH₂O

Output Signal

4 mA to 20 mA, 2-Wire and Hart® Signal

Process Connection

Anderson Negele Type SL Long - 6 in.

Electrical Connection

1/2" NPT Female

Assets

▼

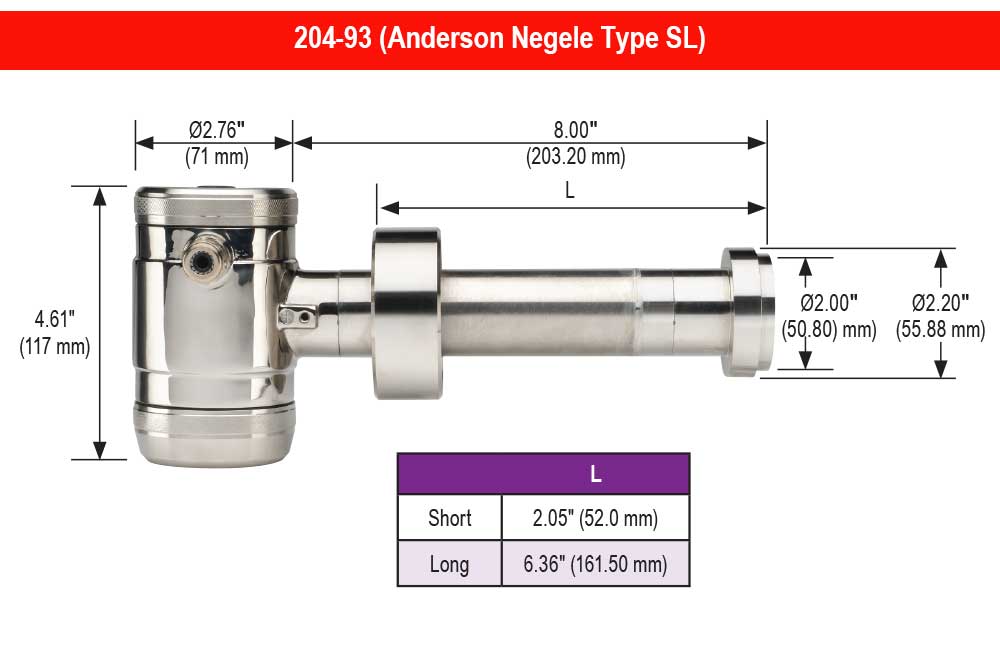

Image Dimensions PDF Data Sheet PDF User Manual
3D CAD Model3D CAD Model
Product Specifications|Additional Information|Digital Indicators|Applications|Limitations Which Apply Are|Prop 65 Warnings

Product Specifications

▲
Type
Sanitary Pressure Transmitter
Weight
3.3 lb
Storage Temperature (Min.)
-4 ºF -20 ºC
Storage Temperature (Max.)
212 ºF 100 ºC
Housing Material
304 Stainless Steel
Output Signal
4 mA to 20 mA, 2-Wire and Hart® Signal
Electrical Connection
1/2" NPT Female
Accuracy
0.1% of Adjusted Span
Environmental Rating
Ingress Protection (66) (National Electrical Manufacturers Association (NEMA) 4X), Ingress Protection (68) (National Electrical Manufacturers Association (NEMA) 6) optional
Series
20
Process Connection
Anderson Negele Type SL Long - 6 in.
Adjustable Pressure Range
47 to 470 inH2O
Connection Material
316 Stainless Steel
Stability
< 0.1%/year
Adjustment
By 3 push buttons on display or optional Hart® signal
Response Time
<150 ms
Service Life
10 yr
Measuring Element
316 Stainless Steel (Hastelloy C, Tantalum or Goldplated Optional)
Temperature Range for 45 Minute
293 ºF 145 ºC
Direct Current (DC) Voltage
12 to 36 V
Options
Transparent Cover (for Display) (TC)
Warranty
3 yr

Additional Information

▲
Additional Information
  • All Stainless Steel housing and wetted parts
  • Strong flush diaphragm with minimal fill volume
  • Can be cleaned-in-place (CIP) or steamed-in-place (SIP)
  • 3A Certified

Digital Indicators

▲
Digital Indicators
NOSHOK Digital Indicators provide local indication for pressure, level and temperature transmitters.

Applications

▲
Application
  • Food & beverage
  • Dairy
  • Chemical processing
  • Pharmaceutical

Limitations Which Apply Are

▲
Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.

In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
