20 Series Sanitary Transmitter, Tank Mate Medium - 6", Range Adjustable from 0 – 6 psig to 0 – 58 psig, 0.1% of adjusted span, 4-20 mA/2-wire + HART Protocol, M12 x 1 (4 pin), Transparent Cover
Featured Specifications
Adjustable Pressure Range (inH₂O)
160 to 1,600 inH₂O
Output Signal
4 mA to 20 mA, 2-Wire and Hart® Signal
Process Connection
Tank Mate Medium - 6 in.
Electrical Connection
M12 x 1 (4-Pin)
Assets

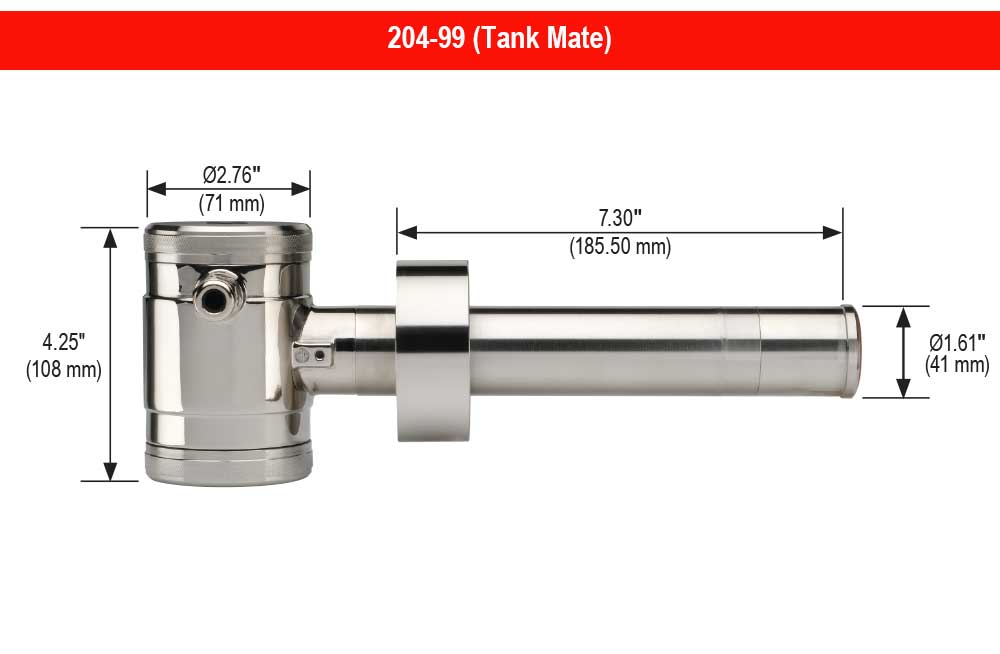

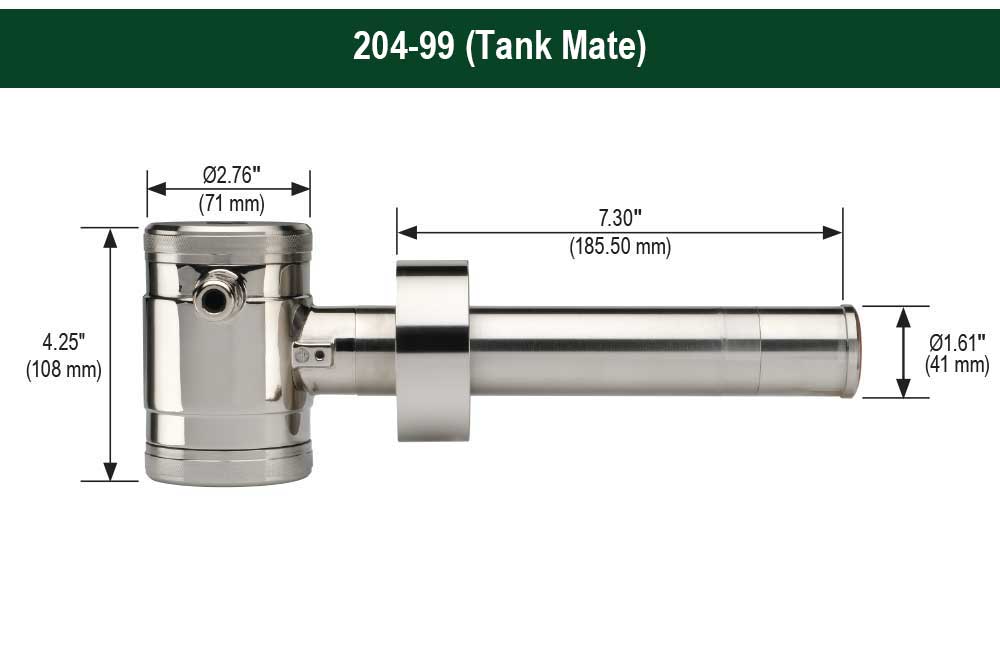

Dimensions
Data Sheet
Product Specifications|Additional Information|Digital Indicators|Applications|Limitations Which Apply Are|Prop 65 Warnings
Product Specifications
▲| Type | Sanitary Pressure Transmitter |
| Weight | 3.3 lb |
| Storage Temperature (Min.) | -4 ºF
-20 ºC |
| Storage Temperature (Max.) | 212 ºF
100 ºC |
| Housing Material | 304 Stainless Steel |
| Output Signal | 4 mA to 20 mA, 2-Wire and Hart® Signal |
| Electrical Connection | M12 x 1 (4-Pin) |
| Accuracy | 0.1% of Adjusted Span |
| Environmental Rating | Ingress Protection (66) (National Electrical Manufacturers Association (NEMA) 4X), Ingress Protection (68) (National Electrical Manufacturers Association (NEMA) 6) optional |
| Series | 20 |
| Process Connection | Tank Mate Medium - 6 in. |
| Adjustable Pressure Range | 160 to 1,600 inH2O |
| Connection Material | 316 Stainless Steel |
| Stability | < 0.1%/year |
| Adjustment | By 3 push buttons on display or optional Hart® signal |
| Response Time | <150 ms |
| Service Life | 10 yr |
| Measuring Element | 316 Stainless Steel (Hastelloy C, Tantalum or Goldplated Optional) |
| Temperature Range for 45 Minute | 293 ºF
145 ºC |
| Direct Current (DC) Voltage | 12 to 36 V |
| Options | Transparent Cover (for Display) (TC) |
| Warranty | 3 yr |
Additional Information
▲| Additional Information |
|
Digital Indicators
▲| Digital Indicators | NOSHOK Digital Indicators provide local indication for pressure, level and temperature transmitters. |
Applications
▲| Application |
|
Limitations Which Apply Are
▲| Limitations Which Apply Are | These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation. In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice. |
