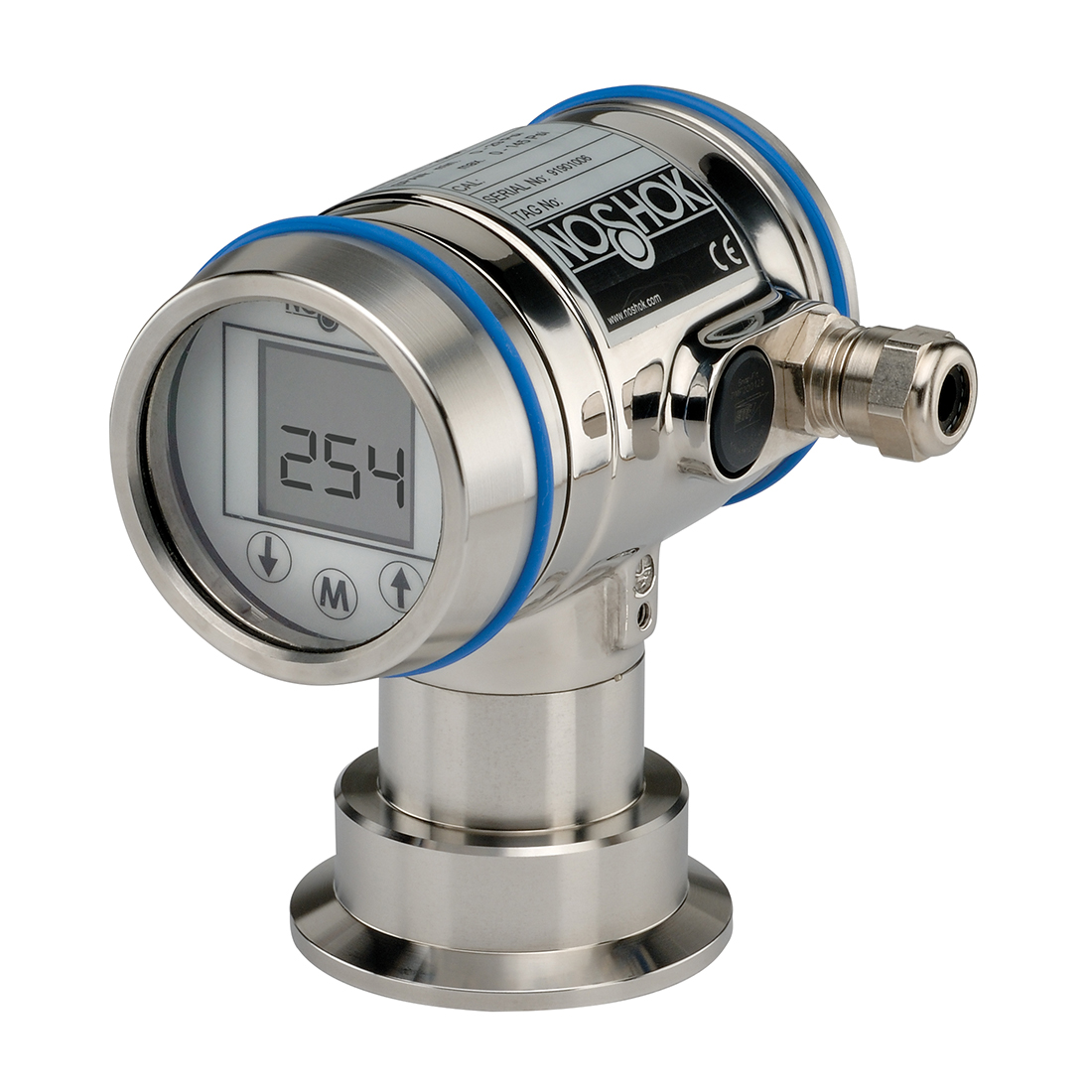

25 Series Sanitary Transmitter, Tri Clamp 2", Range Adjustable from 29 psig to 145 psig, 0.2% of adjusted span, 4-20 mA/2-wire + HART Protocol, PG9 Cable Gland, Transparent Cover

Featured Specifications

Tri-Clamp Size

2 in

Pressure Range

0 to 803 inH2O|0 to 4017 inH2O|29 to 145 psig

Assets

▼
Image Dimensions PDF Data Sheet PDF User Manual Image Wiring Diagram
3D CAD Model3D CAD Model
Product Specifications|Additional Information|Applications|Limitations Which Apply Are|Prop 65 Warnings

Product Specifications

▲
Product Series
25
Tri-Clamp Size
2 in
Approximate Weight
2.2 lb
Accuracy
0.2 % of adjusted span
Storage Temperature (Min.)
-4 ºF -20 ºC
Storage Temperature (Max.)
212 ºF 100 ºC
Housing Material
304 Stainless Steel (316 Stainless Steel optional)
Output Signal
4 mA to 20 mA, 2-wire with HART®
Electrical Connection
PG9 Cable Gland
Environmental Rating
IP66/NEMA 4X (IP68/NEMA 6 optional)
Connection Material
316 Stainless Steel
Pressure Range
  • 0 to 803 inH2O
  • 0 to 4017 inH2O
  • 29 to 145 psig
Stability
<0.1%/year
Adjustment
By 3 push buttons on display or optional Hart® signal
Response Time
<100 ms
Service life
>10 yr
Measuring Element
316 Stainless Steel (Hastelloy C or Tantalum optional)

Additional Information

▲
Additional Information
  • Strong flush diaphragm with minimal fill volume
  • Can be cleaned-in-place (CIP) or steamed-in-place (SIP)
  • 3A Certified
Options
Transparent Cover (for Display) (TC)
Digital Indicators
NOSHOK Digital Indicators provide local indication for pressure, level and temperature transmitters.
Sanitary Clamps and Gaskets
  • Clamp-style fittings are constructed of T304 Stainless Steel; T316 Stainless Steel on request
  • Double hinge design for easy installation and removal
  • Available in sizes from 3/4" to 4"
  • Standard pressure rating of 500 psi at 70 ºF (21 ºC); up to 3,000 psi rating on request
  • Clamp gaskets are available in NBR, EPDM, PTFE and FKM
  • All clamps and gaskets meet FDA and 3A sanitary standards
ASME-BPE Sanitary Clamp
1-1/2" (CR 12)
2" (CR 16)
2-1/2" (CR 20)
3" (CR 24)

NBR Gasket
1-1/2" (BG 12)
2" (BG 16)
2-1/2" (BG 20)
3" (BG 24)

PTFE Gasket
1-1/2" (TG 12)
2" (TG 16)
2-1/2" (TG 20)
3" (TG 24)

Applications

▲
Application
  • Food & dairy
  • Chemical processing
  • Pharmaceutical

Limitations Which Apply Are

▲
Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.

In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.

Prop 65 Warnings

▲
Prop 65 Warnings
⚠️ WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
