About
- Ranges from 0 psi to 5 psi through 0 psi to 300 psi
- Current & voltage outputs available
- 316 Stainless Steel and Polyurethane wetted parts
- CE compliant to suppress RFI, EMI and ESD
Featured Specifications
Accuracy
± 0.25% full scale (BFSL)
Pressure Range
0 to 10 psi
Output Signal
4 mA to 20 mA, 2-wire
Electrical Connection
30 feet Standard Polyurethane (PUR) Cable
Documents
Data Sheet
Product Specifications|Related Items|Additional Information|Options and Accessories|Applications|Limitations Which Apply Are|Prop 65 Warnings
Product Specifications

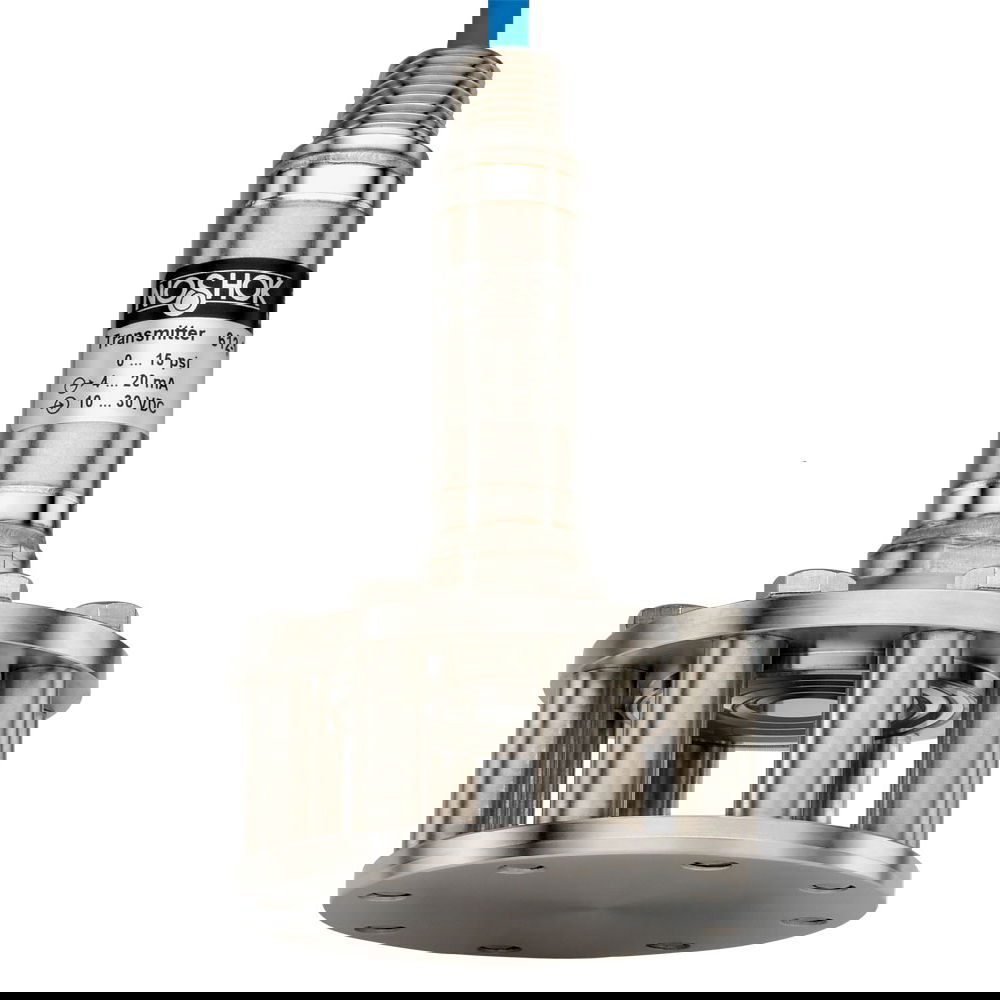

▲| Type | Submersible Level Transmitter |
| Series | 613 |
| Pressure Range | 0 to 10 psi |
| Accuracy | ± 0.25% full scale (BFSL) |
| Note for Accuracy | Includes the effects of non-linearity, hysteresis, non-repeatability, zero point and full scale errors. |
| Output Signal | 4 mA to 20 mA, 2-wire |
| Electrical Connection | 30 feet Standard Polyurethane (PUR) Cable |
| Style | Level Transmitter |
| Stability | ≤ ± 0.2% full scale for 1 year, non-accumulating |
| Response Time | ≤1 ms |
| Service Life | < 100,000,000 load cycles |
| Temperature Measurement | Optional PT100, 4-wire per International Electrotechnical Commission (IEC) 60751 |
| Power Requirement | 10 Vdc to 30 Vdc (4 mA to 20 mA, 2-wire, 0 Vdc to 5 Vdc, 3-wire) 5 Vdc to 30 Vdc (0.5 Vdc to 2.5 Vdc, 3-wire) 14 Vdc to 30 Vdc (0 Vdc to 10 Vdc, 3-wire) |
| Load Limitations | ≤ (VPower-10)/0.020 Amp for 4 mA to 20 mA ≥ 10,000 Ω for 0 Vdc to 10 Vdc, 3-wire ≥ 5,000 Ω for 0 Vdc to 5 Vdc, 3-wire |
| Proof Pressure | 2 Times Range |
| Burst Pressure | 4 Times Range |
| Measuring Element | Cage seal: All 316 stainless steel Cable: polyurethane, optional FEP |
| Connection Material | 316 Stainless Steel |
| Housing Material | 316 Stainless Steel |
| Environmental Rating | Ingress Protection (IP68) |
| Electromagnetic Rating | Built to suppress RFI, EMI, and ESD, Compliant to Electromagnetic Compatibility (EMC) Norm European Standards (EN) 61326:2014/A1:1998, Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection |
| Electrical Protection | Reverse polarity protection, short circuit and optional lightning protection per European Standards (EN) 6100-4-5; 1.5J |
| Shock According to International Electrotechnical Commission (IEC) 60068-2-27 | 100 g |
| Vibration According to International Electrotechnical Commission (IEC) 60068-2-6 | 15 g |
| Weight1 | 3.2 lb |
| Compensated Temperature Range ºF | 32 to 122 ºF |
| Compensated Temperature Range ºC | 0 to 50 ºC |
| Note for Compensated Temperature Range | Effect ± 0.01%/ºF for zero and span |
| Media Temperature Range ºF | 14 to 122 ºF |
| Media Temperature Range ºC | -10 to 50 ºC |
| Warranty | 3 yr |
| Cable Length | 30 ft |
Additional Information
▲| Additional Information |
|

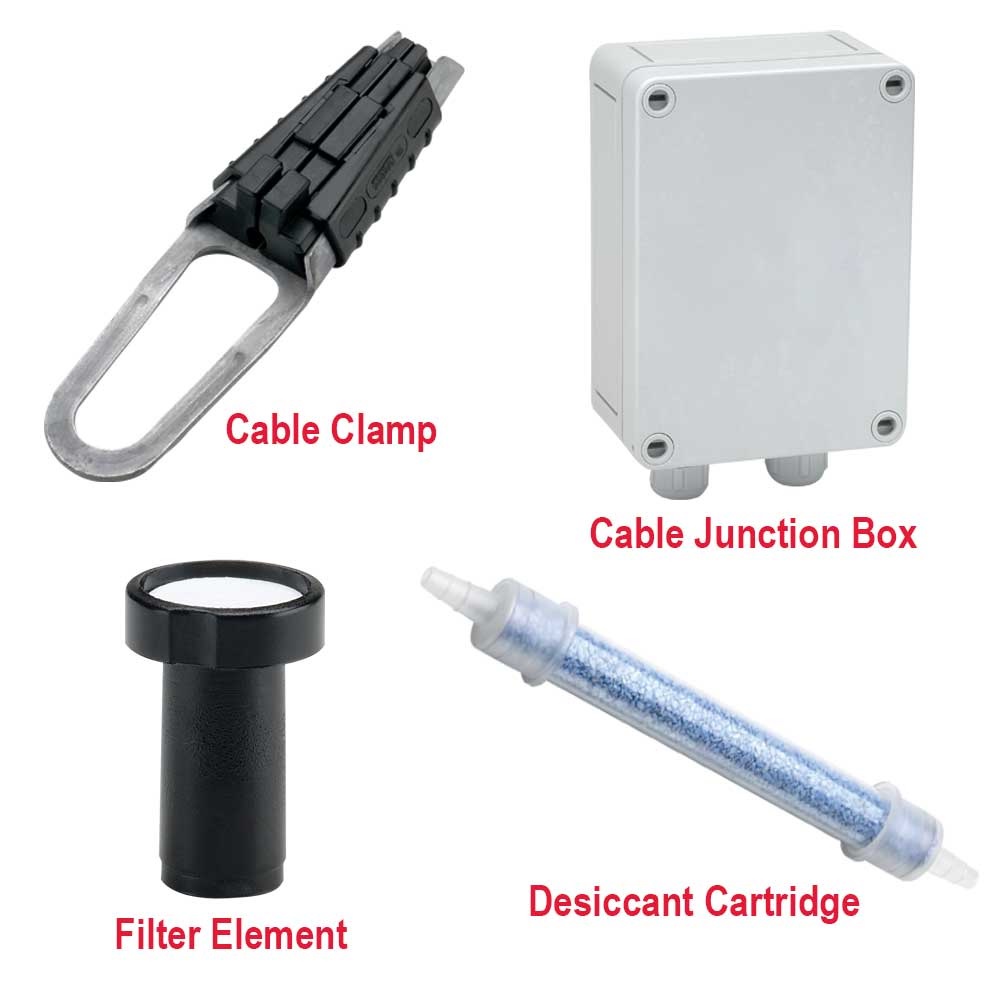

Options and Accessories
▲| Options and Accessories |
|
Applications
▲| Application |
|
Limitations Which Apply Are
▲| Limitations Which Apply Are | These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation. In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice. |
