810 Series Compact Temperature Transmitter, 0/300°F Temperature Range, 4-20 mA Output, 1/4 NPT Process Connection, M12 x 1 (4-Pin), 2.5 in Stem, 6 mm Diameter
Featured Specifications
Temperature Range
-22 to 302 ºF
Accuracy
PT1000 Class A ±0.8 °F (±0.45 °C)
Output Signal
4 to 20 mA, 2-Wire
Process Connection
1/4" NPT Male
Electrical Connection
M12 x 1 (4-Pin)
Stem Length
2.5 in
Assets

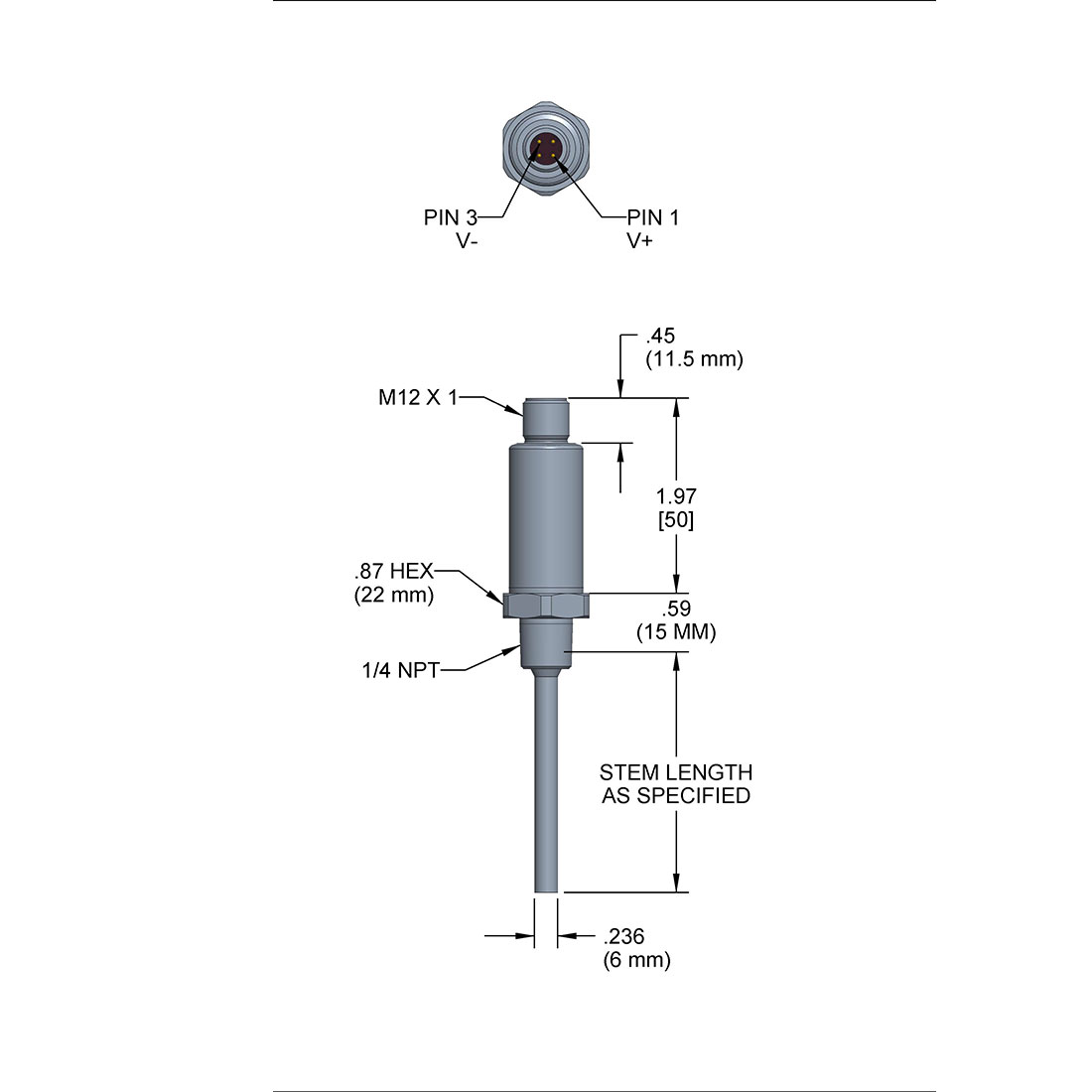

Dimensions
Data Sheet
Product Specifications
▲| Type | Transmitter |
| Process Connection | 1/4" NPT Male |
| Seal Material | 316 Stainless Steel |
| Low Calibrated Temperature Range | 0 ºF |
| High Calibrated Temperature Range | 300 ºF |
| Housing Material | 316 Stainless Steel |
| Output Signal | 4 to 20 mA, 2-Wire |
| Electrical Connection | M12 x 1 (4-Pin) |
| Power Supply | 10 to 30 Vdc |
| Accuracy | PT1000 Class A ±0.8 °F (±0.45 °C) |
| Storage Temperature [Max] | 185 ºF
85 ºC |
| Storage Temperature [Min] | -40 ºF
-40 ºC |
| Series | 810 |
| Standard Temperature Ranges | -22 to 302 ºF |
| Sensor Protection | Burnout Protected from 3.3 to 23 mA |
| Measuring Element | PT1000 Class A |
| Load Limitations | ≤(Supply Voltage - 10 Volts)/0.023 A |
| Pressure Rating | 3,915 psi |
| Ambient Temperature Range | -40 to 185 ºF
-40 to 85 ºC |
| Environmental Protection | Ingress Protection (IP67) |
| Electrical Protection | Reverse polarity, over-voltage and short circuit protection |
| Warranty | 3 yr |
| Measuring Element Accuracy | PT1000 Class A |
| Temperature Sensor Accuracy | For ºF: ±[1.8*(0.15 + 0.002 (t - 32) / 1.8)] For ºC: ±(0.15 K + 0.002 I t I) per EN 60751 |
| Sensor Diameter | 6 mm |
| Sensor Length | 2.5 in |
| Industry Standards/Certifications | European Conformity (CE) Compliant to Electromagnetic Compatibility (EMC) per EN 61326 Radio Frequency Interference (RFI), Electromagnetic Interference (EMI) and Electrostatic Discharge (ESD) Protection |
Thermowells
▲| Thermowells | Thermowells allow a temperature instrument to be removed and replaced without shutting down and draining the process, and reduce the possibility of damage to the temperature instrument. |
Applications
▲| Application |
|
Limitations Which Apply Are
▲| Limitations Which Apply Are | These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation. In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice. |
