About

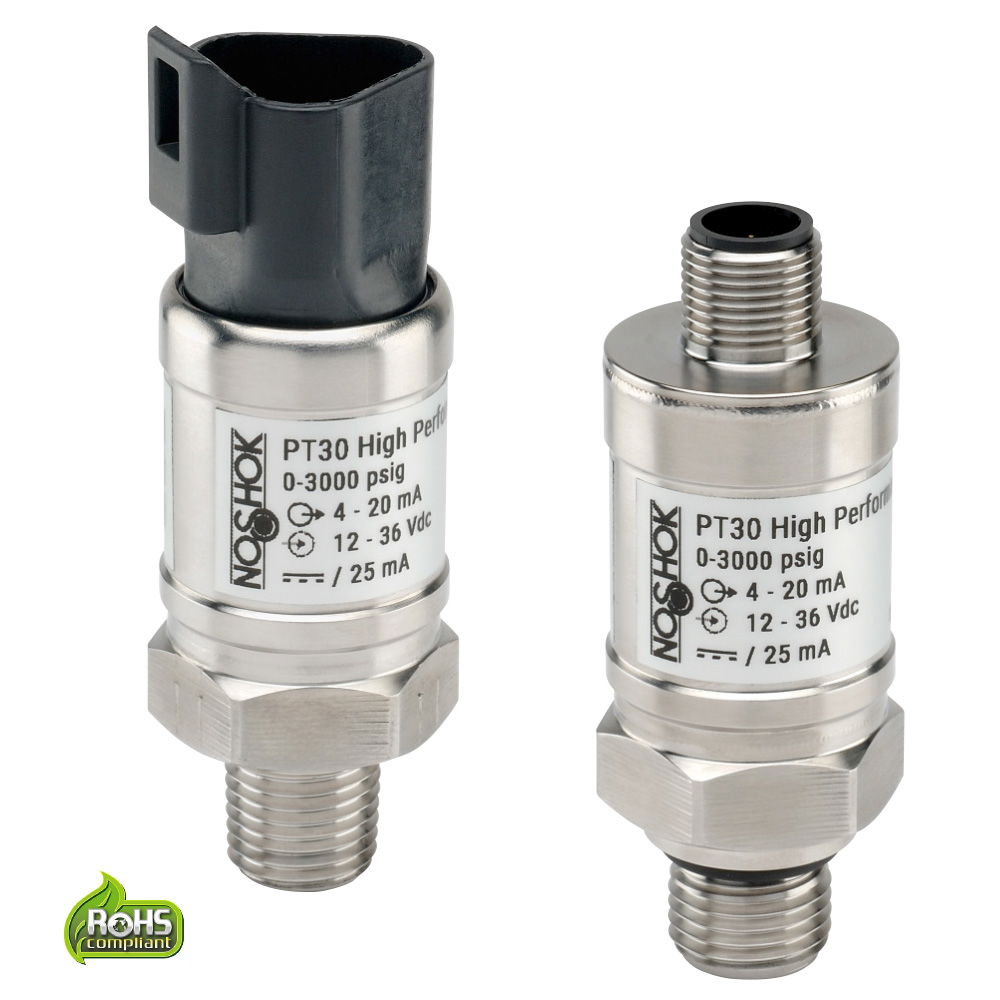

High Performance Fixed Range Pressure Transmitter, 0 to 150 psi gauge, ±0.25% of span, non-linearity best fit straight line per IEC 61298-2 at reference conditions, 4 mA to 20 mA, 2-wire, 1/4 NPT male, M12 x 1 4 pin
Featured Specifications
Pressure Range
0 to 150 psi gauge

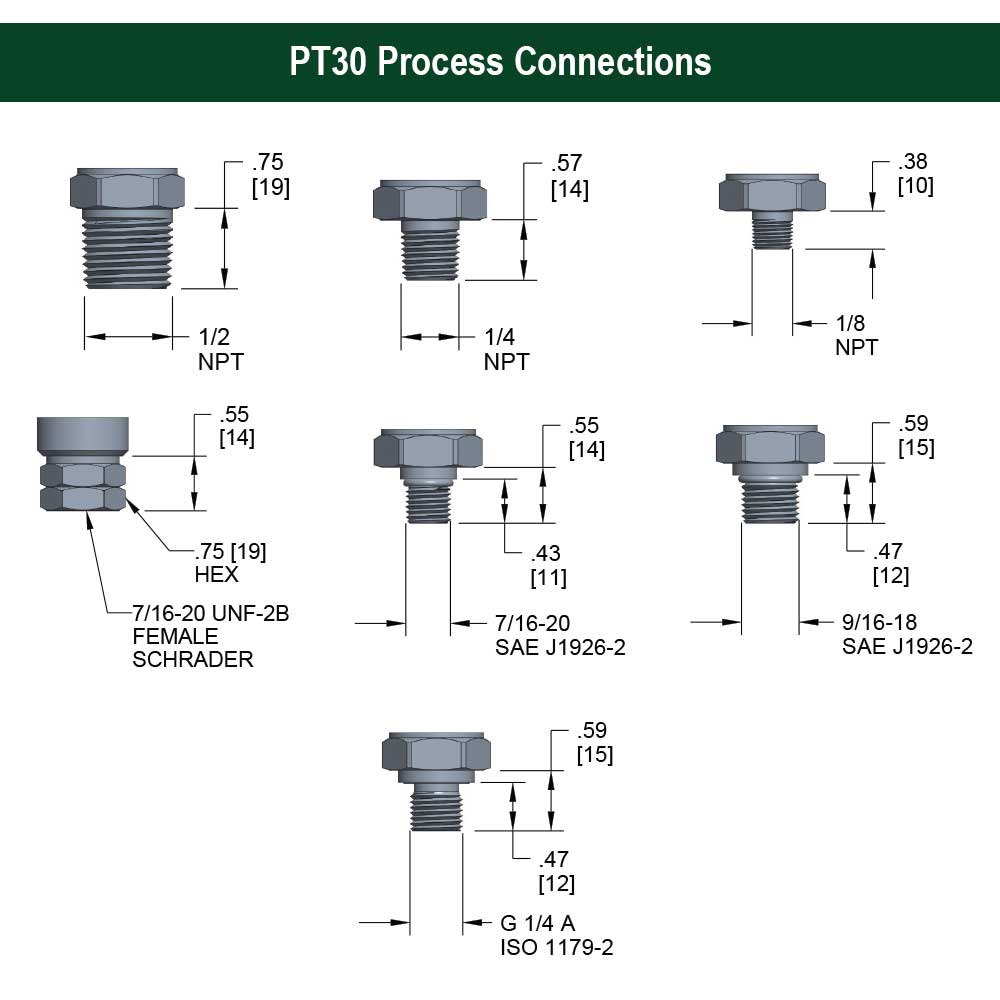

Process Connection
1/4" NPT Male
Electrical Connection
M12 x 1 (4-pin)

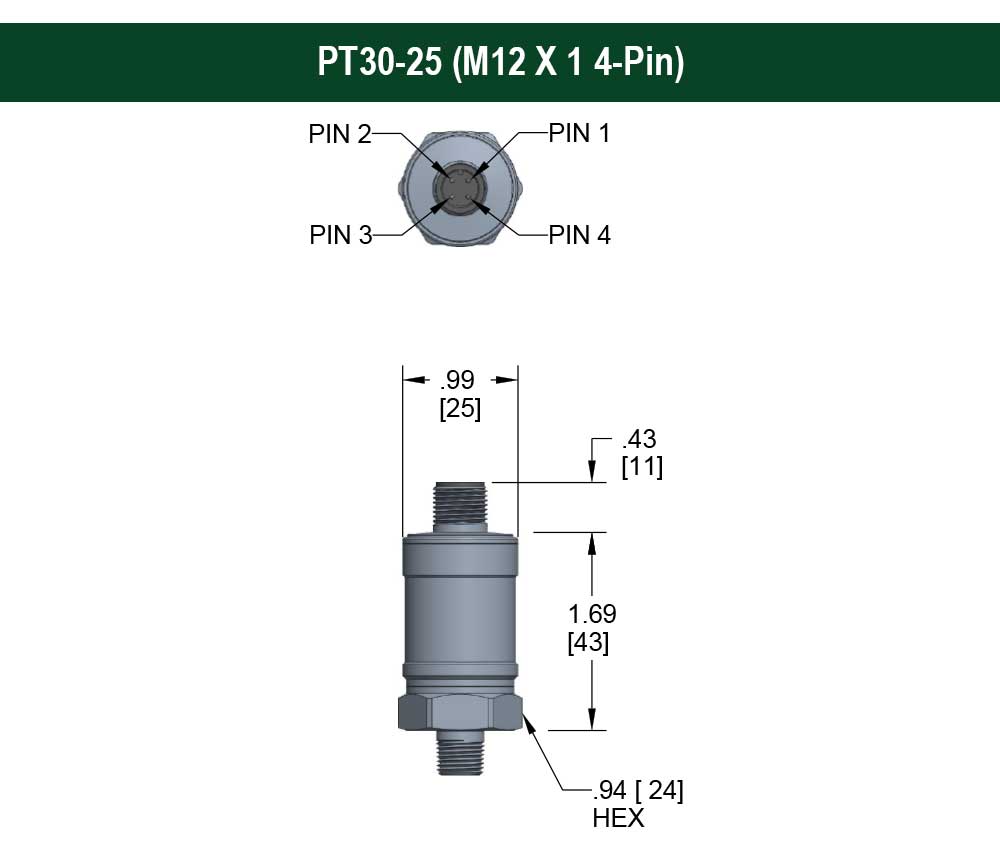

Dimensions
Additional Dimensions
Data Sheet Product Specifications
▲| Pressure Range | 0 to 150 psi gauge |
| Accuracy | ±0.25% of span, non-linearity best fit straight line per IEC 61298-2 at reference conditions |
| Output Signal | 4 mA to 20 mA, 2-wire |
| Process Connection | 1/4" NPT Male |
| Electrical Connection | M12 x 1 (4-pin) |
| Power Requirement | 10 Vdc to 35 Vdc |
| Environmental Rating | IP67 |
| Materials of Construction (Wetted Parts) | 316 Stainless Steel |
| Housing Material | 304 Stainless Steel |
| Media Temperature Range | -22 to 221 ºF
-30 to 105 ºC |
| Certifications | cULus Listed, RoHS compliant, and built to CE standards to suppress RFI, EMI and ESD |
