High Accuracy Fixed Range Pressure Transmitter, 0 to 2000 psi gauge, ±0.25% of span, non-linearity best fit straight line per IEC 61298-2 at reference conditions, 4 mA to 20 mA, 2-wire, 7/16-20 male SAE J514 FIG 34B (non-adjustable), integral cable 3 ft
Featured Specifications
Pressure Range
0 to 2000 psi gauge
Process Connection
7/16-20 Male SAE J514 FIG 34B (non-adjustable)
Electrical Connection
3 ft Integral Cable
Assets

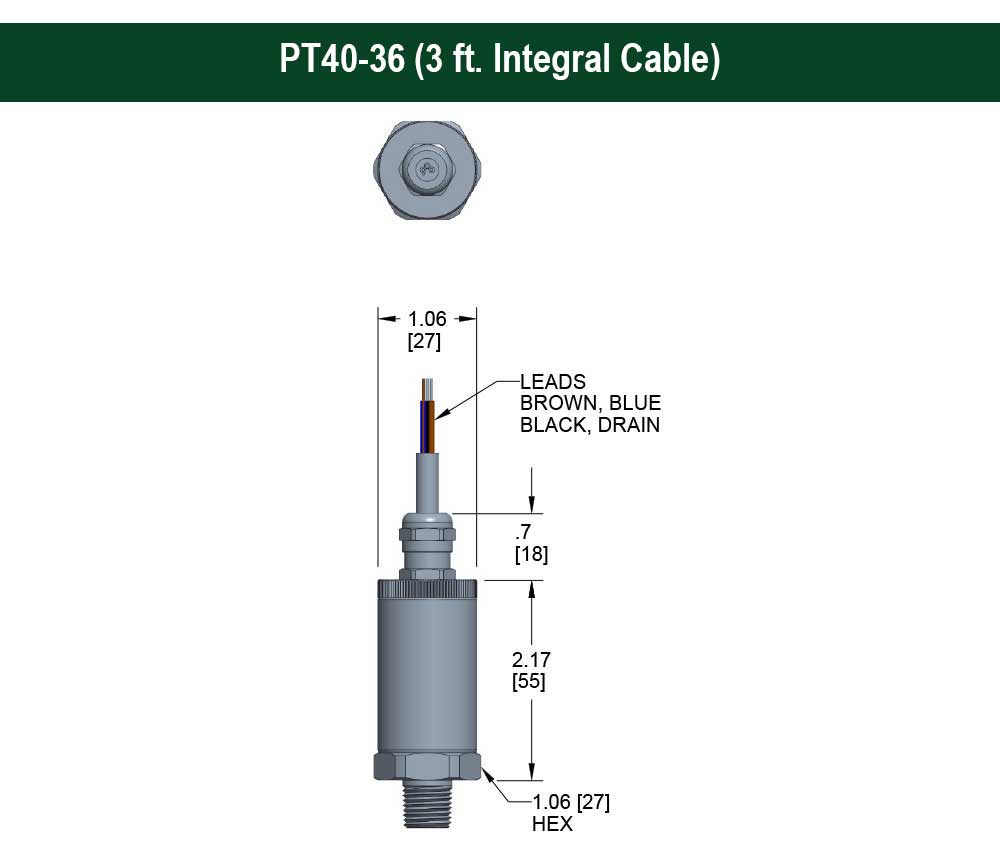

Dimensions
Additional Dimensions
Marketing Flyers
Product Specifications
▲| Pressure Range | 0 to 2000 psi gauge |
| Accuracy | ±0.25% of span, non-linearity best fit straight line per IEC 61298-2 at reference conditions |
| Output Signal | 4 mA to 20 mA, 2-wire |
| Process Connection | 7/16-20 Male SAE J514 FIG 34B (non-adjustable) |
| Electrical Connection | 3 ft Integral Cable |
| Power Requirement | 10 Vdc to 30 Vdc |
| Environmental Rating | IP68 |
| Materials of Construction (Wetted Parts) | 316 Stainless Steel with 316 Stainless Steel housing |
| Media Temperature Range ºC | -30 to 100 ºC |
| Media Temperature Range ºF | -20 to 212 ºF |
