High Pressure Fixed Range Pressure Transmitter, 0 to 36000 psi gauge, ±0.25% of span, non-linearity best fit straight line per IEC 61298-2 at reference conditions, 0 Vdc to 10 Vdc, 3-wire, 9/16-18 UNF 2B high pressure, M12 x 1 4 pin
Featured Specifications
Pressure Range
0 to 36000 psi gauge
Process Connection
9/16-18 UNF 2B High Pressure Cone
Electrical Connection
M12 x 1 (4-pin)
Assets

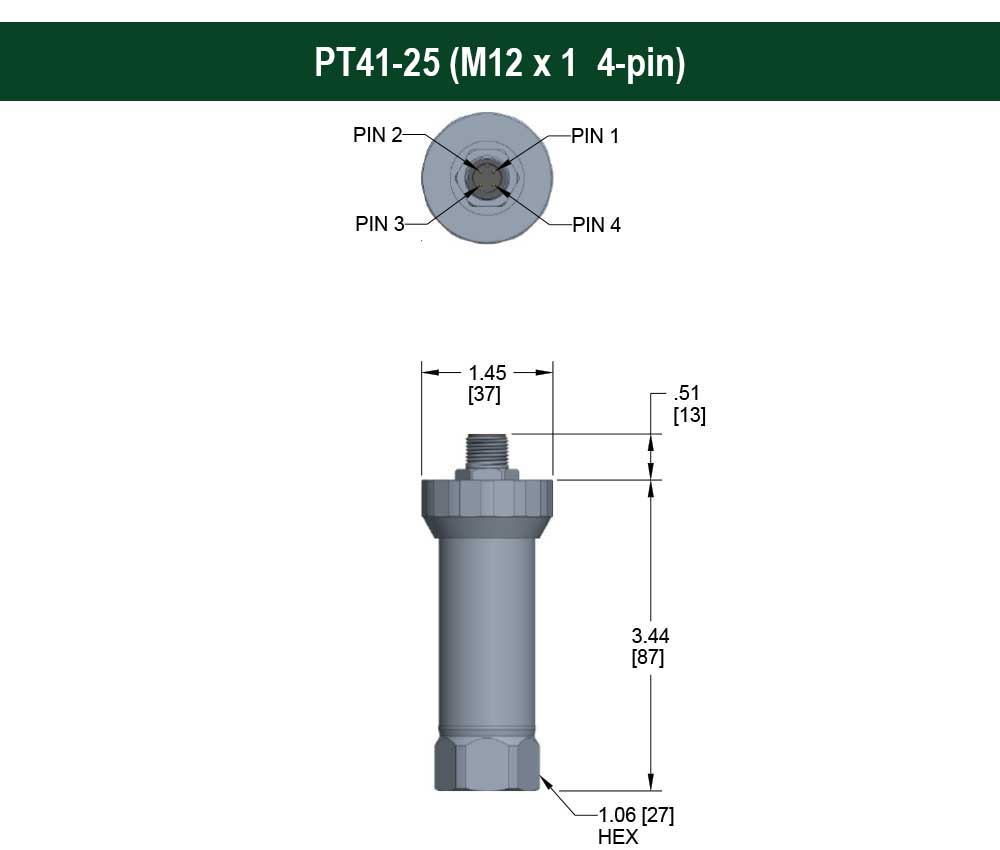

Dimensions
Data Sheet
Product Specifications
▲| Pressure Range | 0 to 36000 psi gauge |
| Accuracy | ±0.25% of span, non-linearity best fit straight line per IEC 61298-2 at reference conditions |
| Output Signal | 0 Vdc to 10 Vdc, 3-wire |
| Process Connection | 9/16-18 UNF 2B High Pressure Cone |
| Electrical Connection | M12 x 1 (4-pin) |
| Power Requirement | 14 Vdc to 30 Vdc |
| Environmental Rating | IP67 |
| Materials of Construction (Wetted Parts) | Elgiloy, 13-8PH Stainless Steel |
| Media Temperature Range | 32 to 176 ºF
0 to 80 ºC |
