Non-Stabilized Connector Pair, Steel

Featured Specifications

Material

Steel

Process Connection

1/2" NPT, Flange

Connector Type

Non-stabilized pair

Assets

▼

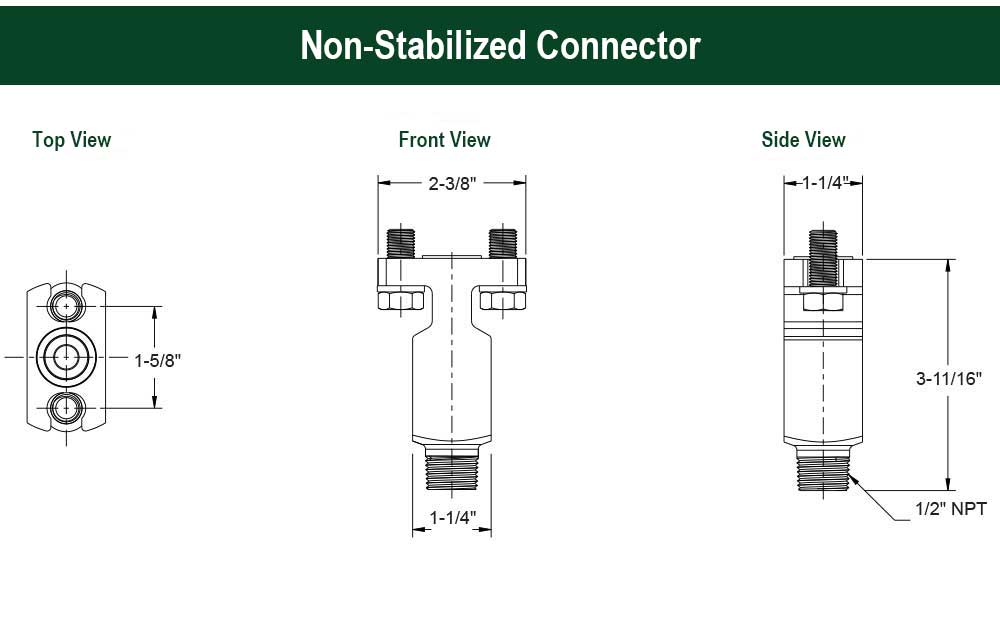

Image Dimensions PDF Data Sheet
3D CAD Model3D CAD Model
Product Specifications|Options and Accessories|Limitations Which Apply Are|Prop 65 Warnings

Product Specifications

▲
Type
Stabilized Connector
Process Connection
1/2" NPT, Flange
Weight
2.9 lb
Material
Steel
Orifice Size
0.375 in
Series
SZ
Connector Type
Non-stabilized pair
Pressure Rating at 200 Degree Fahrenheit (ºF) Temperature_psi
10,000 psi
Warranty
3 yr
Bolt Material
Carbon Steel
Length
  • 3-3/8
  • 5 in
