Type 10 Reduced Pressure Bolted Diaphragm Seal, 1/2 NPT 316 Stainless Steel Instrument Conn, PTFE Diaphragm, PTFE O-Ring, 1/2 NPT Kynar Process Conn

Featured Specifications

Instrument Connection Size

1/2" NPT in

Upper Housing Material

316 Stainless Steel

O-Rings Material

PTFE

Process Connection

1/2" NPT

Assets

▼

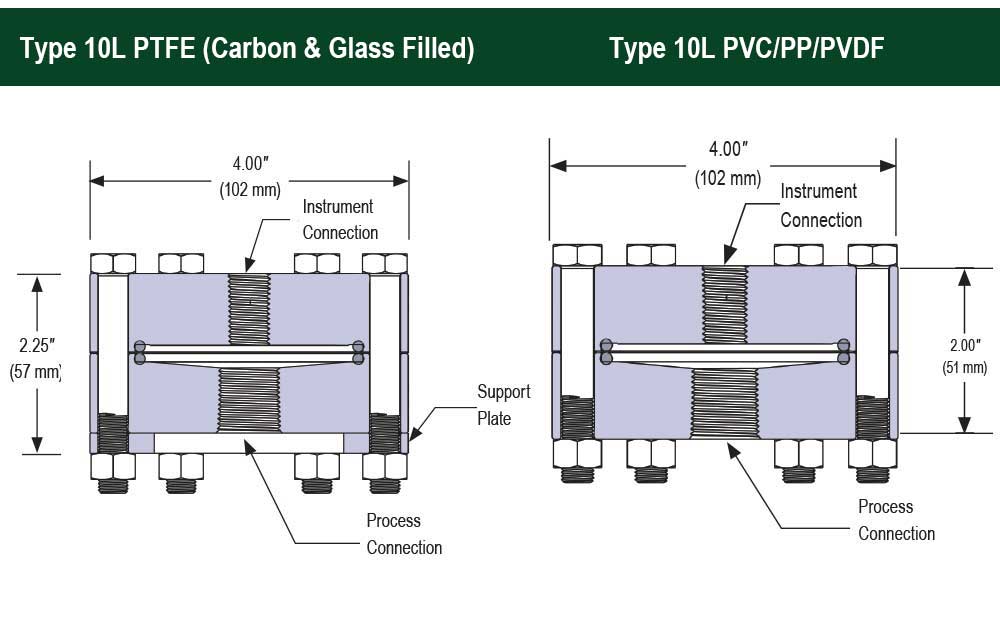

Image Dimensions PDF Data Sheet
3D CAD Model3D CAD Model
Product Specifications|O-Ring Temperature Limits|Diaphragm Pressure and Temperature Limits|Additional Information|Options and Accessories|Note|Applications|Limitations Which Apply Are|Prop 65 Warnings

Product Specifications

▲
Type
Diaphragm Seal
Style
Replaceable Diaphragm Seal
Process Connection
1/2" NPT
Seal Type
Threaded with replaceable diaphragm. Flanged available on request.
O-Rings Material
PTFE
Lower Housing Material
Polyvinylidene Fluoride (PVDF)
Upper Housing Material
316 Stainless Steel
Diaphragm Material
PTFE
Instrument Connection
1/2" NPT
Instrument Gauge Size
2-1/2 to 6 in
Upper Housing Type
Non-Continuous Duty
Diaphragm Size
3 in
Diaphragm Displacement
3.2 mL
Bolting Material
Zinc-Plated Steel
Warranty
1 yr

O-Ring Temperature Limits

▲
O-Ring Temperature Limit_
-40 to 400 ºF

Diaphragm Pressure and Temperature Limits

▲
Diaphragm Lower Housing Material Pressure and Temperature Limits
2,000 psi, -40°F to 400°F
Diaphragm Temperature Limits for Polytetrafluoroethylene (PTFE) Material
-40 to 400 ºF
Diaphragm Temperature Limits for Fluorocarbon (FKM) Material
-10 to 400 ºF

Additional Information

▲
Additional Information
  • Process connection sizes from 1/4" NPT through 1-1/2" NPT
  • Consider instrument size, pressure range, media composition, ambient and operating temperature, and maximum working pressure when selecting
  • Fill fluid must be compatible with process media; i.e. Glycerin may become volatile in conjunction with a strong oxidizing agent such as chlorine, forms of oxygen or peroxide and nitric acids
  • Operating temperature is determined by the temperature/pressure configuration. See Material Temperature table in Diaphragm Seals catalog.

Options and Accessories

▲
Cooling Elements
  • 1/4" NPT x 1/4" NPT Cooling Element (1/4" NPT x 1/4" NPT-CE)
  • 1/2" NPT x 1/2" NPT Cooling Element (1/2" NPT x 1/2" NPT-CE)
  • Works in combination with diaphragm seal to isolate instrument from high media temperatures
  • Recommended for process temperatures above 212 ºF
  • Requires direct mounted system
  • Effective temperature reductions of 200 ºF depending upon ambient conditions
  • High >212 ºF process temperature, low < -40 ºF process temperature
  • All Stainless Steel construction
Diaphragm Seal Fill Options
  • Glycerin (GY) Not recommended for use in vacuum applications.)
  • Silicone (SL)
  • Halocarbon® (HL)
  • Neobee M20 (NB)
  • Mineral Oil (MO)
  • Propylene Glycol (PG)
Distribution Manifolds
NOSHOK's Distribution Manifolds connect multiple instruments to one diaphragm seal, eliminating multiple connections that lead to possible leak paths.
Plain and Armored Capillaries
  • 5 ft. SS Armored Flexible Capillary, 1/4" NPT (AC-02-02-5) per ft. adder (AC-02-02-#)
  • 5 ft. SS Armored Flexible Capillary, 1/2" NPT (AC-04-04-5) per ft. adder (AC-04-04-#)
  • Stainless Steel capillaries available with or without Stainless Steel armor
  • Protects the instrument from high or low process temperatures
  • Allows remote mounting of pressure instrument(s)
  • Select the shortest capillary length possible, as changes in ambient temperature conditions may significantly affect the accuracy and response time of the instrument
  • Standard length 5', others available
  • Installation on analog gauges requires a gauge support and gauge adaptor, or other surface mounting provisions
  • Any level difference between the instrument and the seal will result in a pressure indication error; make sure to compensate for the level difference during calibration of the diaphragm seal assembly if the level difference is known
  • Filling options for capillaries
    • Silicone - specify to 10 or 20 feet (SL-C)
    • Halocarbon® - specify to 10 or 20 feet (HL-C)

Note

▲
Note
PTFE O-Rings standard with all other diaphragms
Maximum Pressure
0 to 200
Minimum Pressure
0 to 30

Applications

▲
Application
  • Water and wastewater
  • Oil and gas
  • Petrochemical
  • Chemical processing
  • Industrial automation
  • Marine
  • Agriculture
  • Steel fabrication
  • Mud pumping
  • Pulp and paper
  • Pneumatic

Limitations Which Apply Are

▲
Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation. Gauge failures determined to be caused by over-range, incompatibility with environment or product media and abuse will not be considered under this warranty. NOSHOK, Inc. will, at its discretion, repair or replace the working parts of the damaged gauge without cost to the customer.

In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.

Prop 65 Warnings

▲
Prop 65 Warnings
⚠️ WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
