2 Valve Manifold, Hard Seat, Flange x 1/2 NPT Female, Steel, 0.187" Orifice

Featured Specifications

Process Connection

1/2" NPT Standard or Flange

Valve Type

Flange-Female

Seat

Hard Seat

Pressure Rating at 200ºF

10,000

Flow Coefficient Cv

0.44

Valve Material

Steel

Assets

▼

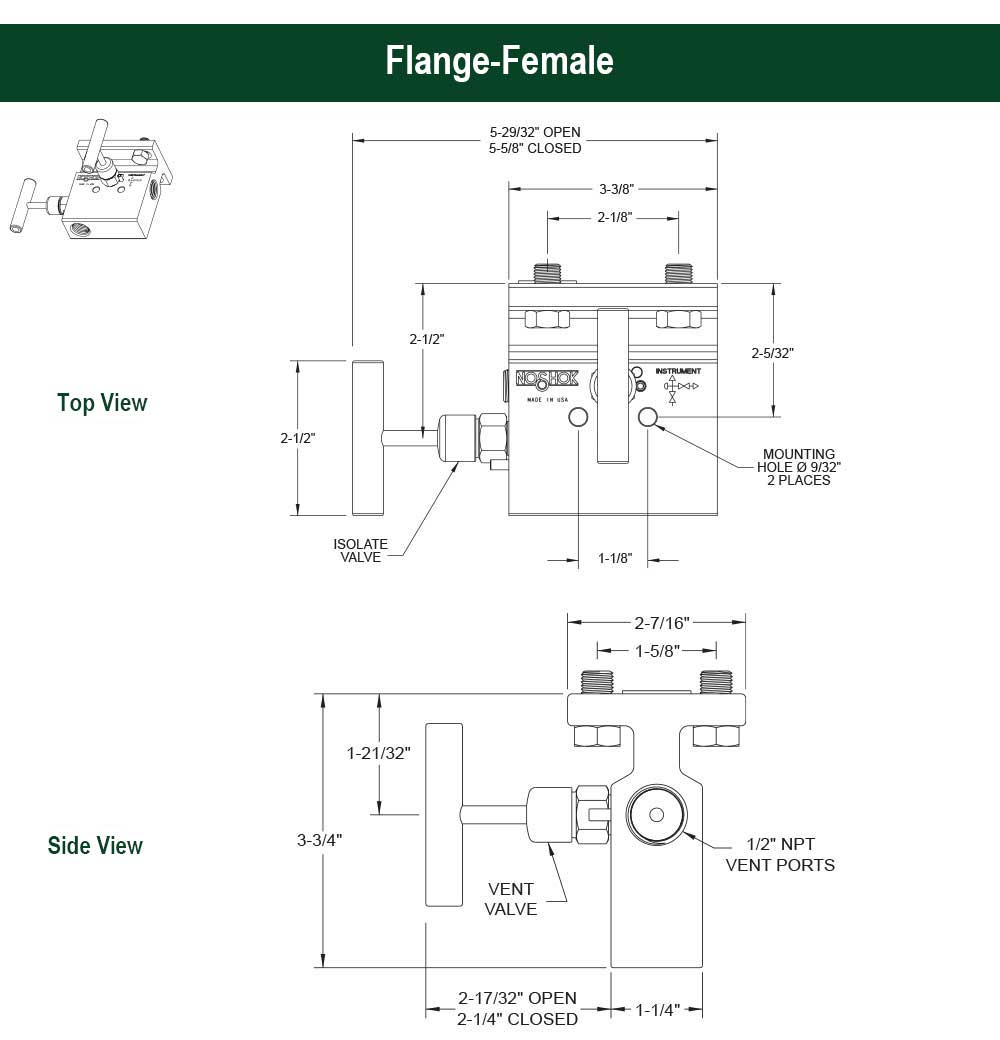

Image Dimensions Image Additional Dimensions Image Flow Schematic PDF Data Sheet
3D CAD Model3D CAD Model
Product Specifications|Options|Options and Accessories|Additional Information|Note|Limitations Which Apply Are|Prop 65 Warnings

Product Specifications

▲
Type
Manifold Valve
Materials
Zinc-nickel plated steel, electropolished 316 Stainless Steel
Series
2-Valve
Seat
Hard Seat
Process Type
Static Pressure
Process Connection
1/2" NPT Standard or Flange
Valve Type
Flange-Female
Valve Material
Steel
Pressure Rating at 200
10,000
Orifice Size
0.187 in
Flow Coefficient Cv
0.44
Stem Seal and Type
All 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and Polytetrafluoroethylene (PTFE) back-up ring below the threads, Polytetrafluoroethylene (PTFE) or Graphite packing optional
Warranty
3 yr
Related Items
  • MK4-CS, 5 Valve National Pipe Thread (NPT)-National Pipe Thread (NPT)/National Pipe Thread (NPT)-Flange Steel Mounting Kit
  • MK4-SS2, 5 Valve National Pipe Thread (NPT)-National Pipe Thread (NPT)/National Pipe Thread (NPT)-Flange 304 Stainless Steel Mounting Kit

Options

▲
Options
o-ring materials, handles, packings, regulating stem and stem tips

Options and Accessories

▲
Installed Options and Accessories
  • Packing
  • PTFE Manifold Gasket Ring (RG1-TF1)
  • Graphite Manifold Gasket (RG1-GF1)
Connectors
NOSHOK offers Stabilized & Non-Stabilized Connectors, as well as Stabilized Connectors With Integral Block Valve designed to reinforce the entire installation by shifting radial-stress load away from the NPT connections.
Dielectric Kits DK Series
Dielectric Kits are designed to maintain the integrity and reliability of the pipeline and piping system through safety and corrosion protection. Dielectric Kits provide a non-conductive barrier between the process piping and the instrument and isolate components from the effects of electrical current. By eliminating metal-to-metal contact, current is halted to prevent corrosion and aid in the cathodic protection of the system.
  • One Piece Dielectric Gasket, Pair, Steel, Acetal (DK1)
  • One Piece Dielectric Gasket, Pair with Stainless Steel Bolts, Stainless Steel, Acetal (DK1-SS)
  • PTFE Gasket with Dielectric Shim, Pair, Steel, PTFE, PVC (DK2)
DK1
  • Single piece design combining a Acetal sealing gasket and Acetal dielectric shim
  • Bolts, washers and dielectric bushings are included with the kits
  • Cannot be used in conjunction with seal rings or o-rings
  • Seal rings or o-rings not required
DK2
  • Used as an alternative to a one-piece design when a separate sealing gasket or o-ring is required
  • Two piece design consisting of a PTFE sealing gasket and PVC dielectric shim
  • Bolts, washers and dielectric bushings are included with the kits
Specifications:
  • Material: Acetal, PVC
  • Max operating temp 150 ºF
  • Dielectric strength exceeds 1/32 air arc gap approximately 2,500 Vdc
All 316SS products meet the requirements of NACE MR0175/ISO 15156-3.
Manifold Kits
The manifold mounting kit is designed for direct or remote mounting to a two-inch pipe stand. This kit can be used with any NOSHOK 2-valve or 3-valve manifold by mounting a Steel or Stainless Steel bracket directly to the manifold body.
  • Flange - Flange Mounting Kit, Steel (MK1-CS1)
  • Flange - Flange Mounting Kit, 304 Stainless Steel (MK1-SS2)
  • Flange - NPT Mounting Kit, Steel (MK2-CS1)
  • Flange - NPT Mounting Kit, Steel Stainless Steel (MK2-SS2)
  • NPT - NPT Mounting Kit, Steel (MK4-CS1) (For 2-Valve Manifolds Only)
  • NPT - NPT Mounting Kit, 304 Stainless Steel (MK4-SS2) (For 2-Valve Manifolds Only)
O-Ring Options
  • Aflas (AF1) (For 1/8" NPT to 1/2" NPT only)
  • Perfluoroelastomer (FFKM) 3018 (KZ1) (For 1/8" NPT to 1/2" NPT only)
  • Perfluoroelastomer (FFKM) 4079 (KZ2) (For 1/8" NPT to 1/2" NPT only)
  • Simriz 89D (KZ3) (For 1/8" NPT to 1/2" NPT only)
  • Perfluoroelastomer (FFKM) 7075 (KZ4) (For 1/8" NPT to 1/2" NPT only)
  • Elast O Lion (EL1) (For 1/8" NPT to 1/2" NPT only)
  • EPDM 80 (EM1) (For 1/8" NPT to 1/2" NPT only)
  • EPDM 90 (EM2) (For 1/8" NPT to 1/2" NPT only)
  • EPDM 70 (EM3) (For 1/8" NPT to 1/2" NPT only)
  • NBR 70 (NB1) (For 1/8" NPT to 1/2" NPT only)
  • EPDM 70 (EM1) (For 3/4" NPT to 1-1/2" NPT only)
  • Perfluoroelastomer (FFKM) 4079 (KZ2) (For 3/4" NPT to 1-1/2" NPT only)
  • Elast O Lion (EL1) (For 3/4" NPT to 1-1/2" NPT only)
  • Low Temperature FKM (VT1) (For 1/8" NPT to 1/2" NPT only)
  • Low Temperature FKM (VT2) (For 3/4" NPT to 1-1/2" NPT only)

Additional Information

▲
Additional Information
  • 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability
  • 2100 Series valve also features a replaceable Acetal seat, and straight through porting for bidirectional, high capacity flow and easy roddable cleaning
  • Blow-out proof stem provides a secondary stem seal in the full open position
  • FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE or Graphite packing optional
  • All stems are 316 Stainless Steel
  • Stem and bonnet threads are rolled for strength and ease of operation
  • One-piece bonnet with a metal-to-metal seal to the valve body below the bonnet threads
  • Slotted spring pin to prevent accidental loosening
  • Vinyl dust caps for bonnets and stems (non-packing)
  • Zinc-nickel plated high tensile strength 4,140 Steel mounting bolts included for flanged connections

Note

▲
Note
Please consult the factory for special application requests.

All NOSHOK valve products conform to the MSS SP-99 instrument valves standards.
Handle
2-1/2" "T" Handle (block), 1-3/8" mini "T" Handle (bleed)
Handle Material
Steel
Stem Tip
Stainless Steel

Limitations Which Apply Are

▲
Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.

In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.

Prop 65 Warnings

▲
Prop 65 Warnings
⚠️ WARNING: This product can expose you to chemicals including Lead and Nickel, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
