Name: 2702-FFC 2 Valve Manifold, Soft Tip, 1/4 NPT Female x 1/4 NPT Female, Steel, 0.156" Orifice
Brand: NOSHOK
SKU: 2702-FFC

About

Combines isolating and venting in a single valve, eliminating the need for tubing and fittings
Block valve isolates the downstream process fluids and the bleed valve exhausts upstream fluids enabling static pressure transmitters, switches or gauges to be removed without disturbing the permanent piping installation
Valves are located on the top to fit into compact spaces and two holes are provided for mounting, venting is to the left

Featured Specifications

Valve Type

Female-Female

Seat

Soft Tip

Pressure Ratings at 200 Degree Fahrenheit (ºF) Temperature (psi)

6,000 psi

Flow Coefficient Cv

0.38

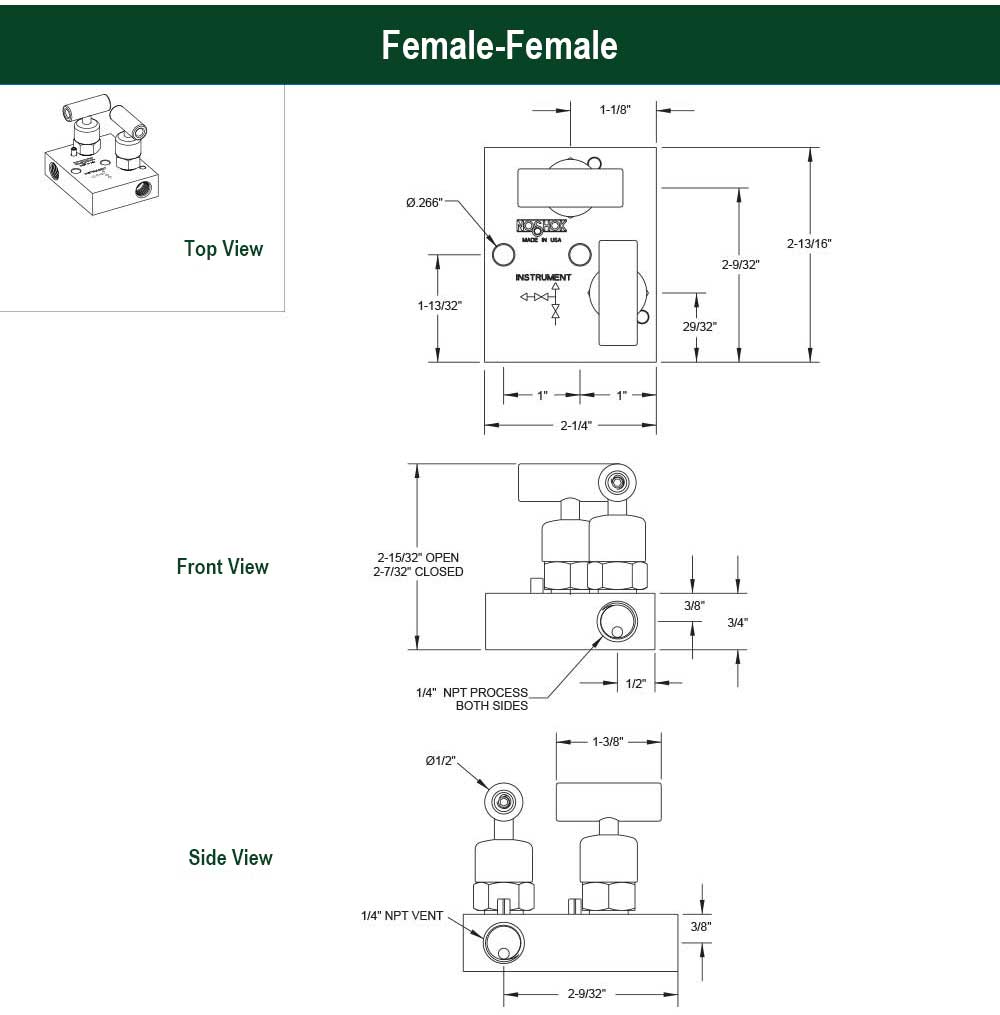

Dimensions

Additional Dimensions

Flow Schematic

Data Sheet

3D CAD Model

Type	Manifold Valve
Materials	Zinc-nickel plated steel, electropolished 316 Stainless Steel
Series	2-Valve
Seat	Soft Tip
Process Type	Static Pressure
Connection	1/4 in National Pipe Thread (NPT)
Valve Type	Female-Female
Valve Material	Steel
Pressure Ratings at 200 Degree Fahrenheit (ºF) Temperature (psi)	6,000 psi
Orifice Size	0.141 in
Flow Coefficient Cv	0.38
Stem Seal and Type	All 316 Stainless Steel stems with Fluorocarbon (FKM) o-ring and Polytetrafluoroethylene (PTFE) back-up ring below the threads, Polytetrafluoroethylene (PTFE) or Graphite packing optional
Warranty	3 yr
Related Items	MK4-CS, 5 Valve National Pipe Thread (NPT)-National Pipe Thread (NPT)/National Pipe Thread (NPT)-Flange Steel Mounting Kit MK4-SS2, 5 Valve National Pipe Thread (NPT)-National Pipe Thread (NPT)/National Pipe Thread (NPT)-Flange 304 Stainless Steel Mounting Kit

Options

o-ring materials, handles, packings, regulating stem and stem tips

Additional Options

Packings

PTFE (P1)
Graphite (P2) - Hard seat only.

Stem Tips

Non-rotating (316 stainless) (T1)
Ball (440C stainless) (T5) - Hard seat only.
Non-rotating regulating (316 Stainless) (T9) - Hard seat only.
Acetal (Acetal) (T2) - Soft tip only.
Ball (carbide) (T6) - Hard seat only.
Regulating Acetal (T10) - Soft tip only.
PCTFE (T3) - Soft tip only.
Ball (ceramic) (T7) - Hard seat only.
Regulating PCTFE (T11) - Soft tip only.
PEEK (T4) - Soft tip only.
Ball (Monel) (T8) - Hard seat only.
Regulating PEEK (T12) - Soft tip only.

O-rings

EPDM (EM1)
FFKM (Perfluoroelastomer) 3018 or equivalent) (KZ1)
NBR (NB1)

Handles

1" Round knurled (HL3)

Installed Options and Accessories	Packing PTFE Manifold Gasket Ring (RG1-TF1) Graphite Manifold Gasket (RG1-GF1)
Connectors	NOSHOK offers Stabilized & Non-Stabilized Connectors, as well as Stabilized Connectors With Integral Block Valve designed to reinforce the entire installation by shifting radial-stress load away from the NPT connections.
Dielectric Kits DK Series	Dielectric Kits are designed to maintain the integrity and reliability of the pipeline and piping system through safety and corrosion protection. Dielectric Kits provide a non-conductive barrier between the process piping and the instrument and isolate components from the effects of electrical current. By eliminating metal-to-metal contact, current is halted to prevent corrosion and aid in the cathodic protection of the system. One Piece Dielectric Gasket, Pair, Steel, Acetal (DK1) One Piece Dielectric Gasket, Pair with Stainless Steel Bolts, Stainless Steel, Acetal (DK1-SS) PTFE Gasket with Dielectric Shim, Pair, Steel, PTFE, PVC (DK2) DK1 Single piece design combining a Acetal sealing gasket and Acetal dielectric shim Bolts, washers and dielectric bushings are included with the kits Cannot be used in conjunction with seal rings or o-rings Seal rings or o-rings not required DK2 Used as an alternative to a one-piece design when a separate sealing gasket or o-ring is required Two piece design consisting of a PTFE sealing gasket and PVC dielectric shim Bolts, washers and dielectric bushings are included with the kits Specifications: Material: Acetal, PVC Max operating temp 150 ºF Dielectric strength exceeds 1/32 air arc gap approximately 2,500 Vdc All 316SS products meet the requirements of NACE MR0175/ISO 15156-3.
Manifold Kits	The manifold mounting kit is designed for direct or remote mounting to a two-inch pipe stand. This kit can be used with any NOSHOK 2-valve or 3-valve manifold by mounting a Steel or Stainless Steel bracket directly to the manifold body. Flange - Flange Mounting Kit, Steel (MK1-CS1) Flange - Flange Mounting Kit, 304 Stainless Steel (MK1-SS2) Flange - NPT Mounting Kit, Steel (MK2-CS1) Flange - NPT Mounting Kit, Steel Stainless Steel (MK2-SS2) NPT - NPT Mounting Kit, Steel (MK4-CS1) (For 2-Valve Manifolds Only) NPT - NPT Mounting Kit, 304 Stainless Steel (MK4-SS2) (For 2-Valve Manifolds Only)
O-Ring Options	Aflas (AF1) (For 1/8" NPT to 1/2" NPT only) Perfluoroelastomer (FFKM) 3018 (KZ1) (For 1/8" NPT to 1/2" NPT only) Perfluoroelastomer (FFKM) 4079 (KZ2) (For 1/8" NPT to 1/2" NPT only) Simriz 89D (KZ3) (For 1/8" NPT to 1/2" NPT only) Perfluoroelastomer (FFKM) 7075 (KZ4) (For 1/8" NPT to 1/2" NPT only) Elast O Lion (EL1) (For 1/8" NPT to 1/2" NPT only) EPDM 80 (EM1) (For 1/8" NPT to 1/2" NPT only) EPDM 90 (EM2) (For 1/8" NPT to 1/2" NPT only) EPDM 70 (EM3) (For 1/8" NPT to 1/2" NPT only) NBR 70 (NB1) (For 1/8" NPT to 1/2" NPT only) EPDM 70 (EM1) (For 3/4" NPT to 1-1/2" NPT only) Perfluoroelastomer (FFKM) 4079 (KZ2) (For 3/4" NPT to 1-1/2" NPT only) Elast O Lion (EL1) (For 3/4" NPT to 1-1/2" NPT only) Low Temperature FKM (VT1) (For 1/8" NPT to 1/2" NPT only) Low Temperature FKM (VT2) (For 3/4" NPT to 1-1/2" NPT only)

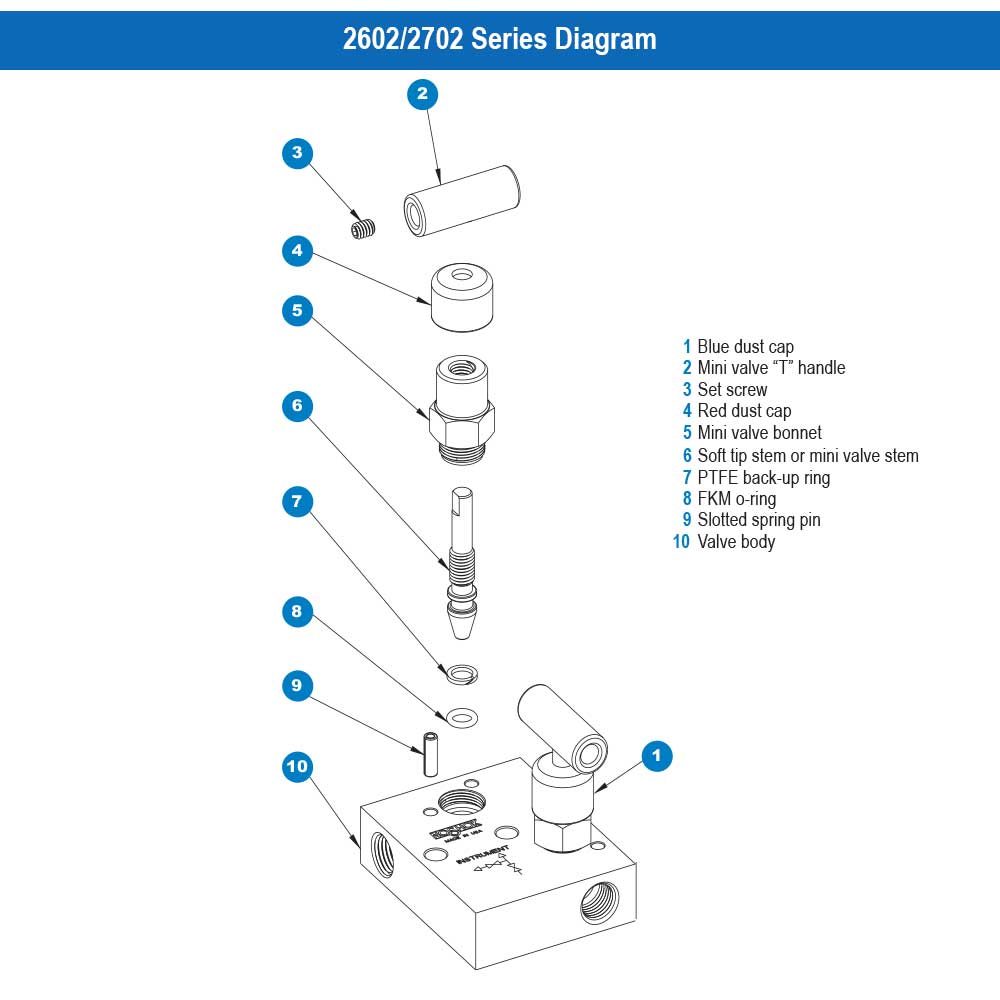

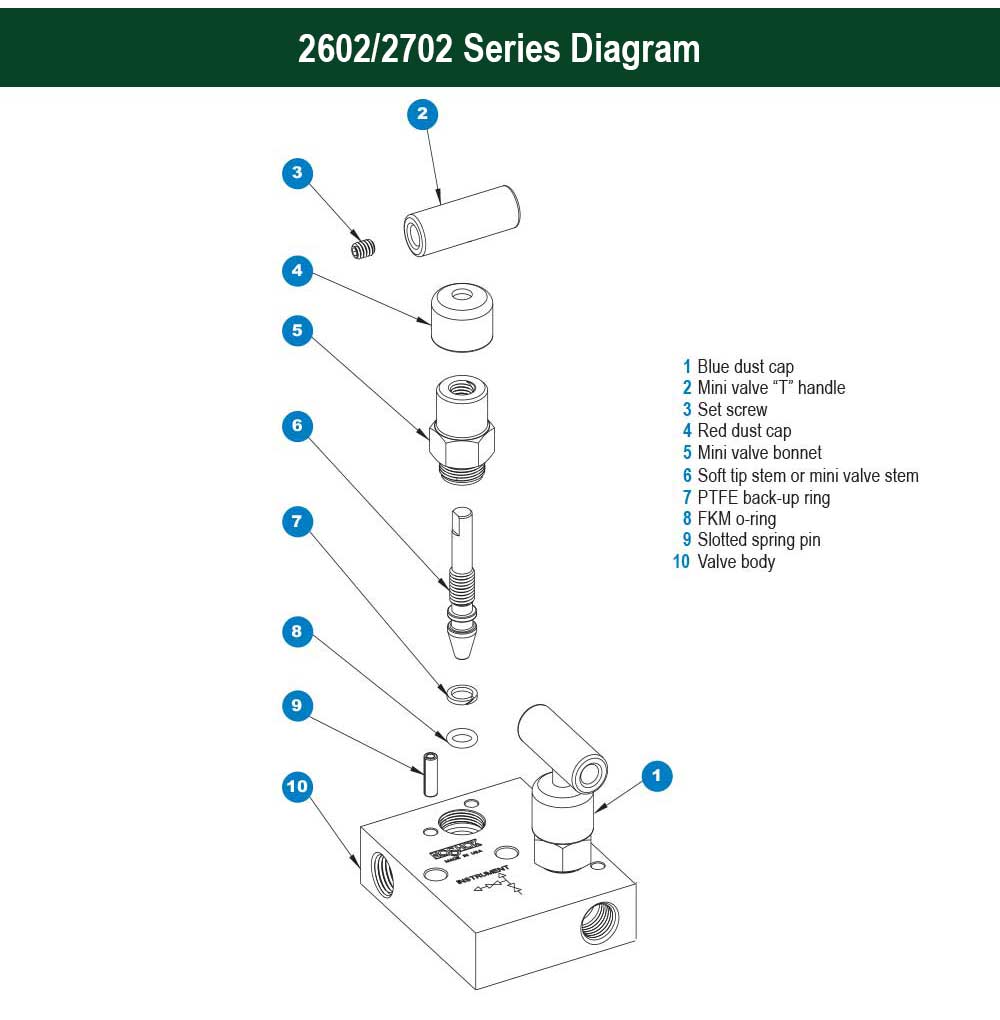

Additional Information

100% helium leak tested to 1 x 10^-4 ml/s for guaranteed performance and reliability
Soft tip valves feature a patented Acetal non-rotating soft tip stem, and a back-up metal-to-metal seal (U.S. Patent 6,820,857)
Blow-out proof stem provides a secondary stem seal in the full open position
FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE or Graphite packing optional
All stems are 316 Stainless Steel
Stem and bonnet threads are rolled for strength and ease of operation
One-piece bonnet with a metal-to-metal seal to the valve body below the bonnet threads
Slotted spring pin to prevent accidental loosening
Vinyl dust caps for bonnets and stems (non-packing)
Patented body-to-bonnet, metal-to-metal seal is designed to significantly increase the pressure range of the valve (U.S. Patent 7,758,014)

Note

All NOSHOK valve products conform to the MSS SP-99 instrument valves standards, and valves supplied with packing also conform to MSS SP-132 compression packing systems for instrument valves standard.

Please note that the standard o-ring in all the NOSHOK valves is FKM and the standard handles are isolation 1-3/8" mini "T" handles (HL7) and equalizing 1-3/8" mini "T" handles (HL7).

The handle material will always match the material of the valve, unless otherwise specified. For example, the 1-3/8" mini "T" handle (HL7) on the 2602-FFC will be steel. When only the standard configuration is needed, no additional designations are necessary. Please consult the factory for special application requests.

Limitations Which Apply Are

These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation.

In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
