Type 5 Polymer Diaphragm Seal, Reduced Pressure, 1/4" NPT Instrument Conn, PP, EPDM-PTFE Coated Diaphragm, 1/2" NPT Process Conn, PP

Featured Specifications

Instrument Connection Size

1/4" NPT in

Diaphragm Material

EPDM-PTFE Coated on Process Side

Process Connection

1/2" NPT

Lower Housing Material

Polypropylene (PP)

Assets

▼

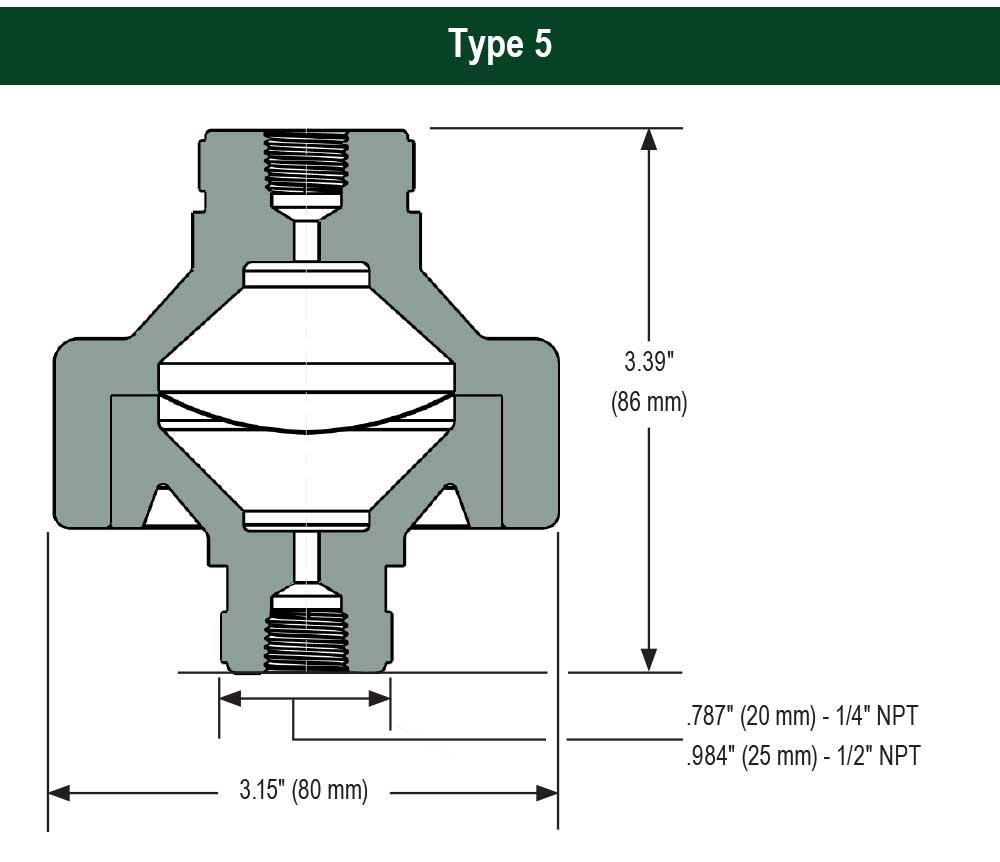

Image Dimensions Image Dimensions PDF Data Sheet
3D CAD Model3D CAD Model
Product Specifications|Instruments|Options and Accessories|Applications|Limitations Which Apply Are|Prop 65 Warnings

Product Specifications

▲
Type
Diaphragm Seal
Style
Non-Replaceable Diaphragm Seal
Instrument Connection
1/4" NPT
Process Connection
1/2" NPT
Upper Housing Material
Polypropylene (PP)
Diaphragm Material
EPDM-PTFE Coated on Process Side
Lower Housing Material
Polypropylene (PP)
Seal Type
Threaded with non-replaceable diaphragm
Upper Housing Type
Non-Continuous Duty
Diaphragm Size
1.77 in
Diaphragm Displacement
8.9 mL
Warranty
1 yr

Instruments

▲
Instrument Type
Gauges, Transducers, Switches

Options and Accessories

▲
Cooling Elements
  • 1/4" NPT x 1/4" NPT Cooling Element (1/4" NPT x 1/4" NPT-CE)
  • 1/2" NPT x 1/2" NPT Cooling Element (1/2" NPT x 1/2" NPT-CE)
  • Works in combination with diaphragm seal to isolate instrument from high media temperatures
  • Recommended for process temperatures above 212 ºF
  • Requires direct mounted system
  • Effective temperature reductions of 200 ºF depending upon ambient conditions
  • High >212 °F process temperature, low < -40 ºF process temperature
  • All Stainless Steel construction
Diaphragm Seal Fill Options
  • Glycerin (GY) Not recommended for use in vacuum applications.)
  • Silicone (SL)
  • Halocarbon® (HL)
  • Neobee M20 (NB)
  • Mineral Oil (MO)
  • Propylene Glycol (PG)
Distribution Manifolds
NOSHOK's Distribution Manifolds connect multiple instruments to one diaphragm seal, eliminating multiple connections that lead to possible leak paths.
Plain and Armored Capillaries
  • 5 ft. SS Armored Flexible Capillary, 1/4" NPT (AC-02-02-5) per ft. adder (AC-02-02-#)
  • 5 ft. SS Armored Flexible Capillary, 1/2" NPT (AC-04-04-5) per ft. adder (AC-04-04-#)
  • Stainless Steel capillaries available with or without Stainless Steel armor
  • Protects the instrument from high or low process temperatures
  • Allows remote mounting of pressure instrument(s)
  • Select the shortest capillary length possible, as changes in ambient temperature conditions may significantly affect the accuracy and response time of the instrument
  • Standard length 5', others available
  • Installation on analog gauges requires a gauge support and gauge adaptor, or other surface mounting provisions
  • Any level difference between the instrument and the seal will result in a pressure indication error; make sure to compensate for the level difference during calibration of the diaphragm seal assembly if the level difference is known
  • Filling options for capillaries
    • Silicone - specify to 10 or 20 feet (SL-C)
    • Halocarbon® - specify to 10 or 20 feet (HL-C)
Seal & Pressure Transmitter/Switch Assembly For Wastewater, Chemical Feed
The NOSHOK All Non-Metallic Diaphragm Seal & Pressure Transmitter/Switch assembly is ideal for water, wastewater & chemical feed applications.
Maximum Pressure
0 to 160
Minimum Pressure
0 to 30

Applications

▲
Application
  • Wastewater and chemical feed
  • Deionized water systems
  • Reverse osmosis systems
  • Desalinization systems
  • Electroplating

Limitations Which Apply Are

▲
Limitations Which Apply Are
These units must be operated within the catalogued environmental and application parameters. Determination of failure will be made by NOSHOK, Inc.'s equipment and personnel or a certified test facility specializing in this type of evaluation. Gauge failures determined to be caused by over-range, incompatibility with environment or product media and abuse will not be considered under this warranty. NOSHOK, Inc. will, at its discretion, repair or replace the working parts of the damaged gauge without cost to the customer.

In keeping with and for purposes of product and/or manufacturing process improvements, NOSHOK, Inc. reserves the right to make design changes without prior notice.
